Hasselblad 503CW Service Manual

Camera body 503CW
October 1996
Revision 0
6:2
The hole for the locating pin (812202) is bored with
1.15 mm drill. Use tool V-2211 for driving in the pin.
Drive the pin in until the face of the tool touches the
front bayonet plate. When a new front plate is installed
the hole must be drilled using tool 902658 (V-2075),
which is equipped with two drill bushes.
Fit the governor (30386) using two screws (820014),
ensure the gears mesh and then secure the screws.
Remove the swarf and lubricate the bevel gears with
grease. Force grease using a syringe into the three small
holes and lubricate the weight of the centrifugal brake.
Note! Do not over lubricate.

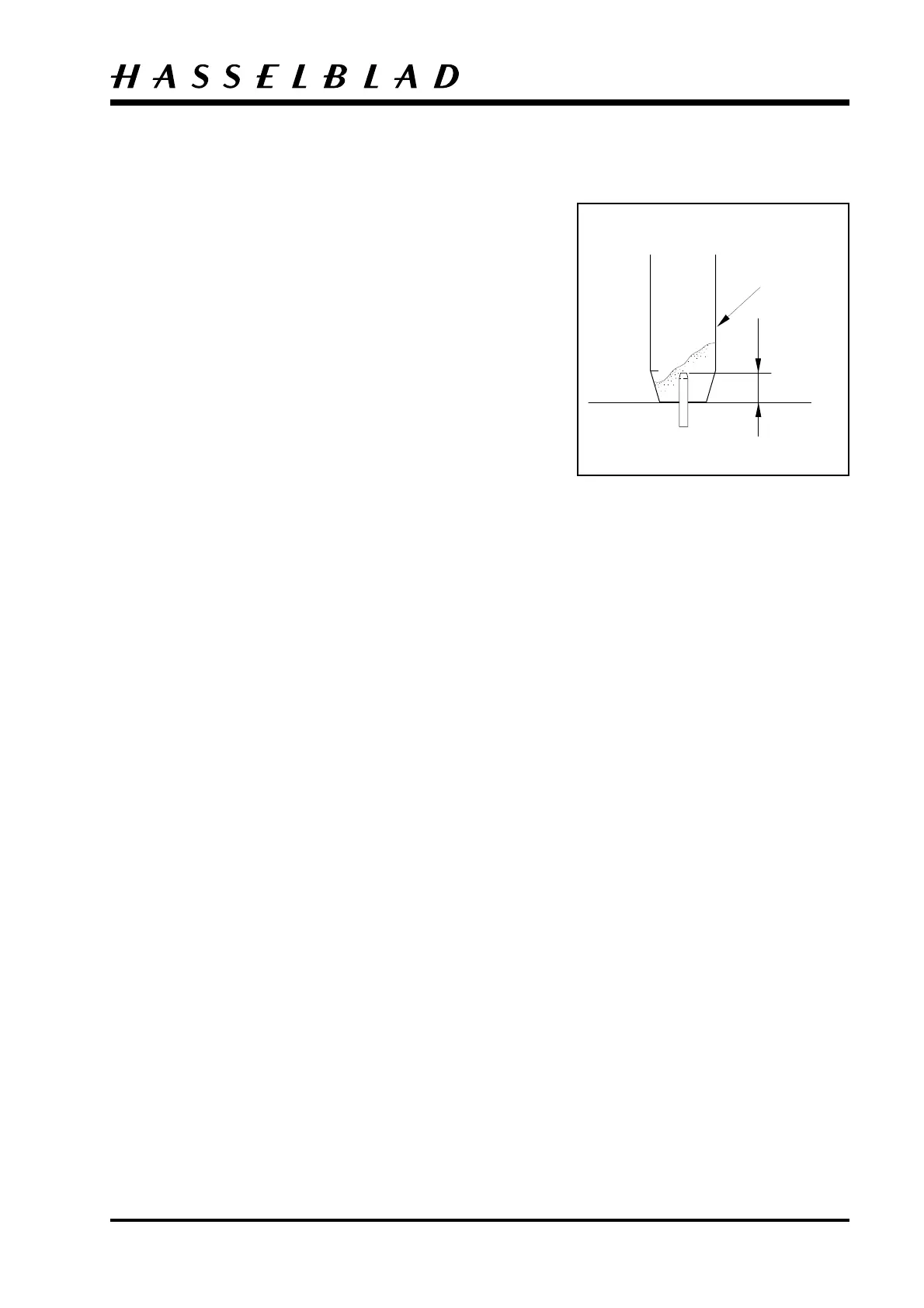

Front bayonet plate
Fig. 57
V-2211
1.40 mm

Hasselblad 503CW Specifications

General

Camera Type	Medium format SLR
Exposure Modes	Manual
Focus	Manual focus
Lens Mount	Hasselblad V mount
Shutter Type	Focal-plane shutter
Flash Sync	1/90 sec
Metering	External metering required
Viewfinder	Interchangeable viewfinders (waist-level, prism)
Shutter Speed	1 sec to 1/500 sec, Bulb
Flash Sync Speed	1/90 sec
