Camera body 503CW
Reassembly
October 1996Revision 0
4:5
Rear plate (30300)
Fitting the rear plate

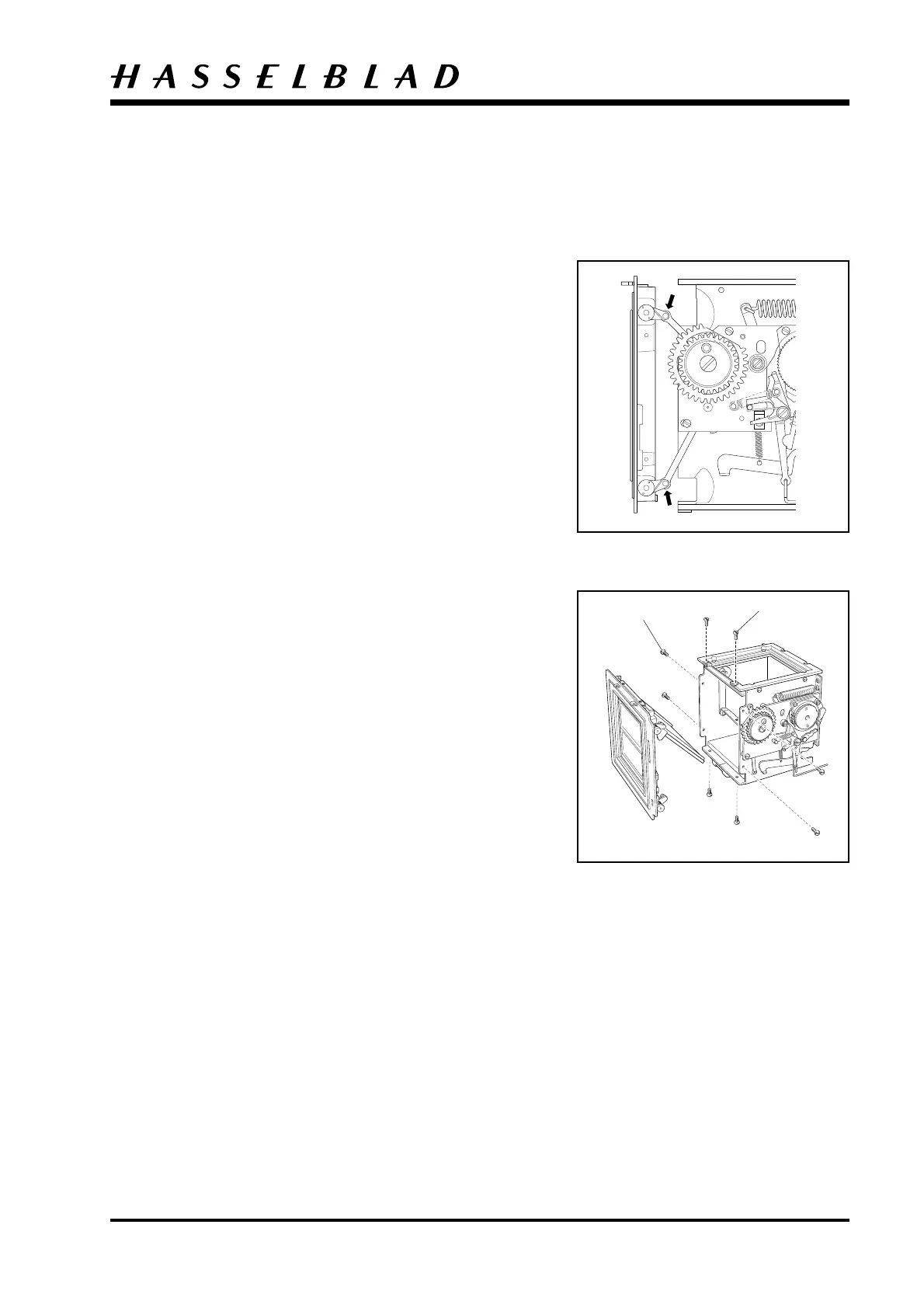

Fig. 23 and 24.
Lubricate the shutter driving arm’s shaft hub and the
mirror’s moving peg with grease. Connect the arm and
the connecting rods and fix the rear plate into the
chassis. Ensure that the mirror actuating lever grips the
pin on the mirror frame and that the mirror is
positioned correctly on the upper side of the mirror
support.
Connect the driving arm (22781) to the mirror frame
and secure with a clip (817115). Do not forget the
washer (810649) between the frame and the arm.
Check that the mirror and shutter driving arms move
freely.
Secure the rear plate to the camera using six screws
(820015) and two screws (821017).
Check that the mirror and the auxiliary shutters are
centred and move freely. Adjust if necessary the
brackets (Qty. 4) in the side hinges of the auxiliary
shutter and mirror frame.
If the magazine hook (22423) has been removed, put it
back with two screws (823640) and seal the screws with
loctite.
Seal between the rear plate and both side walls using
black silicone or similar. (Lower and upper end).
Fig. 23
Fig. 24
820015
820017
