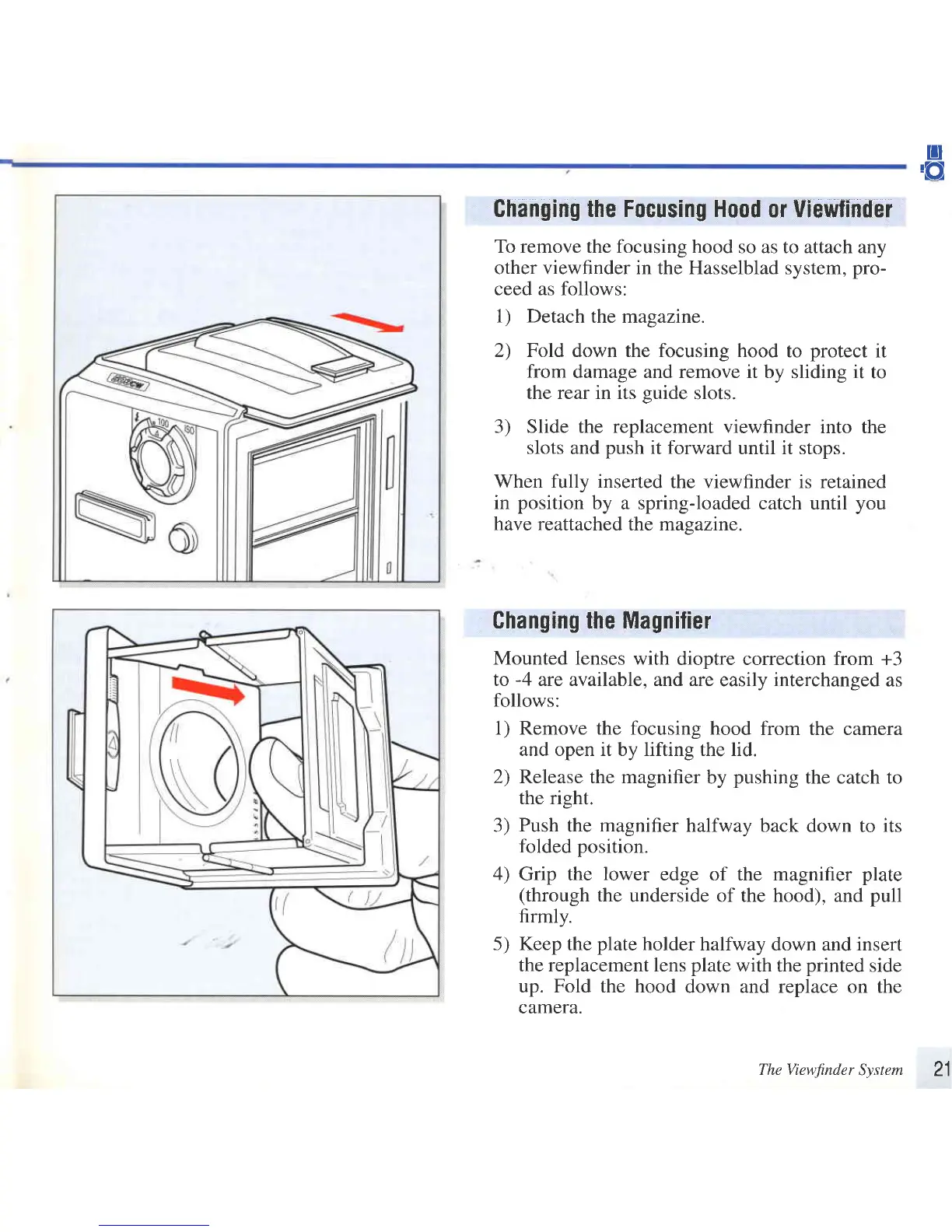

El
'o
Ghanging
the Focusing Hood
or Uiewfinder
To remove the focusing hood
so as to attach any
other viewfinder in the Hasselblad system,
pro-
ceed as follows:
l) Detach
the magazine.
2) Fold down the focusing hood
to
protect
it
from
damage and remove it by
sliding
it
to
the rear in its
guide
slots.
3) Slide the replacement viewfinder
into the
slots
and
push
it forward
until it stops.
When fully inserted
the viewfinder is retained
in
position
by
a spring-loaded catch until
you
have reattached
the masazine.
Changing the Magnifier
Mounted lenses with
dioptre correction from +3
to
-4
arc available, and are
easily
interchanged
as
follows:
1) Remove the focusing
hood from the camera
and open it by lifting the lid.
2) Release the magnifier
by
pushing
the catch to
the right.
3)
Push
the
magnifier
halfway back
down to
its
folded
position.
4)
Grip the
lower
edge of the magnifier
plate
(through
the
underside of the hood), and
pull
firmly.
5) Keep
the
plate
holder
halfway down
and
insert
the replacement lens
plate
with
the
printed
side
up. Fold the hood
down and replace on the
camera.
The ViewJinder
System
21
