Hatco GLO-RAY GR - Specifications - Dimensions

Form No. GRM-0707
10
SPECIFICATIONS
DIMENSIONS

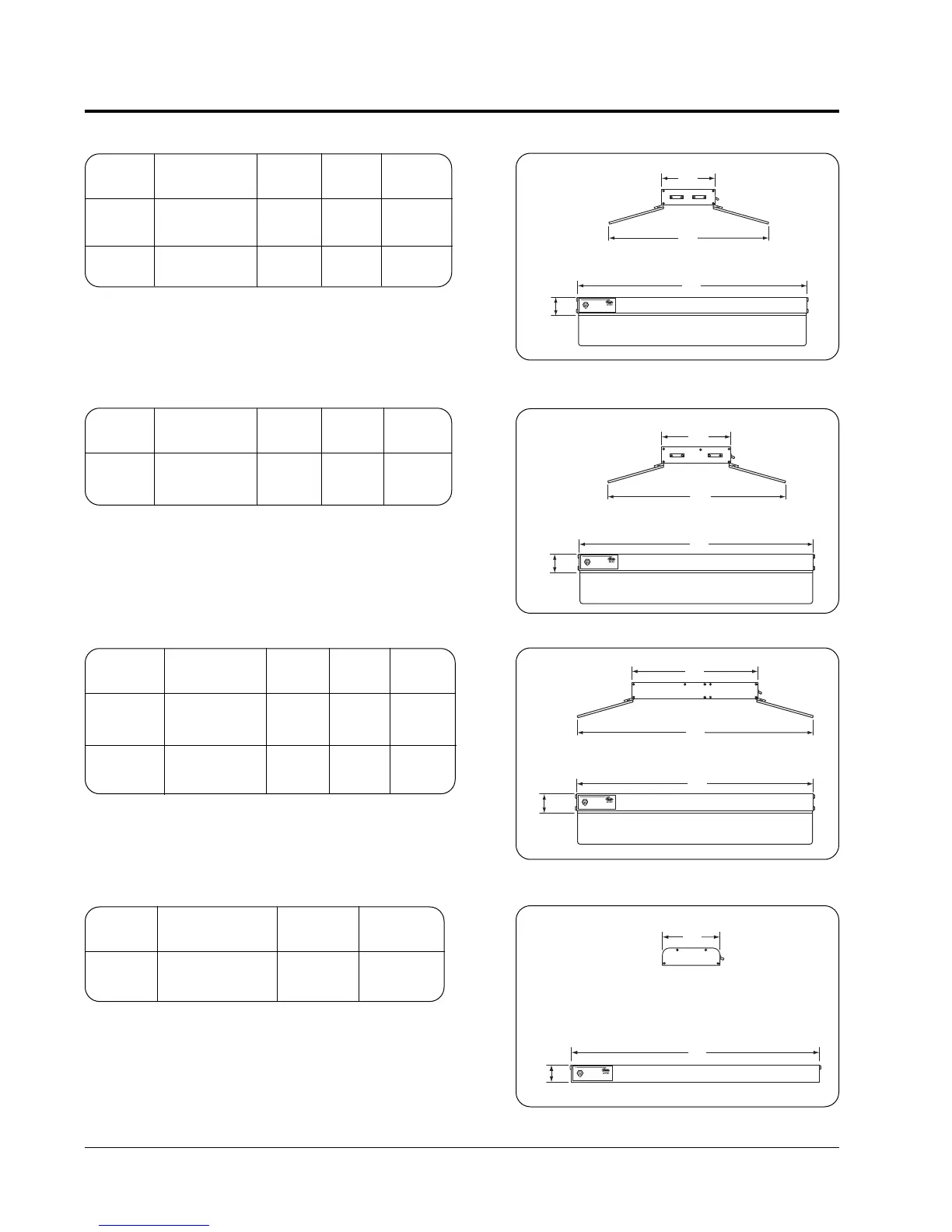

Figure 6. Dimensions–GR, GRH, GRA & GRAH
Models
Figure 7. Dimensions–GRAL & GRAHL Models
Width Depth Depth Height
Models (A) (B) (C) (D)
GRAL & 18" - 144" 9" 26" 2-1/2"
GRAHL (457 - 3658 mm) (229 mm) (660 mm) (64 mm)
Width Depth Depth Height
Models (A) (B) (C) (D)
GR & 24" - 96" 6" 23" 2-1/2"
GRH (610 - 2438 mm) (152 mm) (584 mm) (64 mm)
GRA & 18" - 144" 6" 23" 2-1/2"
GRAH (457 - 3658 mm) (152 mm) (584 mm) (64 mm)
NOTE: Units shown with optional 9-3/8" (187 mm) breath
protectors and mounting flanges. Not available for retro-fit or
on GR and GRH models.
NOTE: Units shown with optional 9-3/8" (187 mm) breath
protectors and mounting flanges. Not available for retro-fit.
NOTE: Units shown with optional 9-3/8" (187 mm) breath
protectors and mounting flanges. Not available for retro-fit.
A
D
A
D
B
C
B
C
Figure 8. Dimensions–GRA-D, GRAH-D, GRAL-D
& GRAHL-D Models
* Dimension shown is standard with 3" (76 mm) spacer; when
used with 6" (152 mm) spacer add 3" (76 mm).
Figure 9. Dimensions–GRN & GRNH Models
Width Depth Height
Models (A) (B) (C)
GRN & 18" - 72" 4" 2"
GRNH (457 - 1829 mm) (102 mm) (51 mm)
A
B
C
A
B
C
D
Width Depth
*
Depth
*
Height
Models (A) (B) (C) (D)
GRA-XXD & 18" - 144" 15" 32" 2-1/2"
GRAH-XXD (457 - 3658 mm) (381 mm) (813 mm) (64 mm)
GRAL-XXD & 18" - 144" 15" 32" 2-1/2"
GRAHL-XXD (457 - 3658 mm) (381 mm) (813 mm) (64 mm)
