Form No. HBGBHCM_CN-0120
7
Model
Width Depth
HBGBHC-1414 367 mm (14-1/2″) 365 mm (14-3/8″)
HBGBHC-2414 617 mm (24-5/16″) 365 mm (14-3/8″)
HBGBHC-3014 767 mm (30-1/4″) 365 mm (14-3/8″)
HBGBHC-3614 917 mm (36-1/8″) 365 mm (14-3/8″)
HBGBHC-4814 1220 mm (48-1/8″) 365 mm (14-3/8″)
HBGBHC-6014 1520 mm (59-7/8″) 365 mm (14-3/8″)
HBGBHC-7214 1820 mm (71-11/16″) 365 mm (14-3/8″)

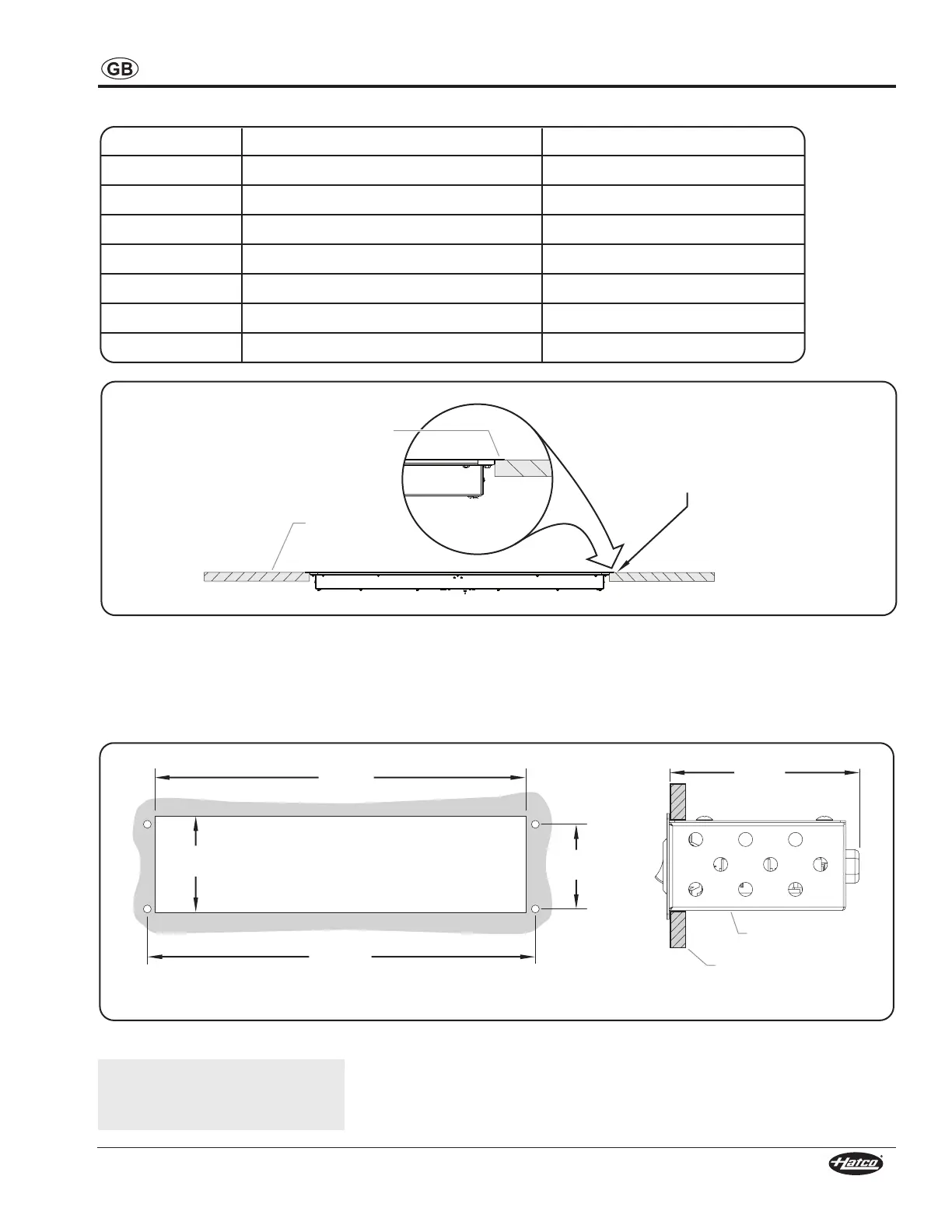

Control Box Installation Dimensions
116 mm
(4-5/8″)
Control Enclosure
211 mm
(8-5/16″)
48 mm
(1-7/8″)
54.5 mm
(2-3/16″)
Side View of Installed EnclosureFront View of Cutout
Mounting Surface
220 mm
(8-11/16″)
IMPORTANT NOTE:
Make sure the installation location
provides enough room for electrical
connections to the control box.
Trim Mounting Ring
Metallic
Countertop
Apply a bead of NSF-approved
sealant between the metallic
countertop and trim mounting ring.
Sealant must be rated for use at
121°C (250°F) or higher.
HBGBHC Built-In Installation
INSTALLATION
Control Box Installation Dimensions
Countertop Cutout Chart — With Trim Ring
