2
The IDM T1 DAU
About this Manual
This manual assumes no previous knowledge of operation of
this type of test equipment. Although details are given on the
manner in which the IDM should be used, reference should also
be made to the Help menu within Replay
™
Plus software for
further instructions.
Introduction (This Section)
First time users of the IDM should read this section which
describes the capabilities of the system and the operational
overview to understand how the IDM functions.
Installation
Gives information on IDM installation with details of the
various inputs and outputs.
Replay
™
Plus
Describes how to configure IDM parameters using the Qualitrol
Hathaway Replay
™
Plus software package.
Note:
Some Replay
™
Plus and IDMCal software screens and
dialog boxes shown in this manual may have updated
due to continuous product enhancement.
Where to Go for Further Help
If problems are experienced with the setup or the use of the
IDM Data Acquisition System, please contact:
Qualitrol - Hathaway Instruments Division
15 Wildflower Way, Belfast, BT12 6TA, Northern Ireland
Telephone: +44 28 9022 5200
Fax: +44 28 9022 5225
Qualitrol - Hathaway Instruments Division
2 Inverness Drive East, Englewood, Colorado 80112, USA
Telephone: +1 303 799 8200
Fax: +1 303 799 8200
e-mail: sales@hathaway-systems.com
Internet: www.qualitrolcorp.com

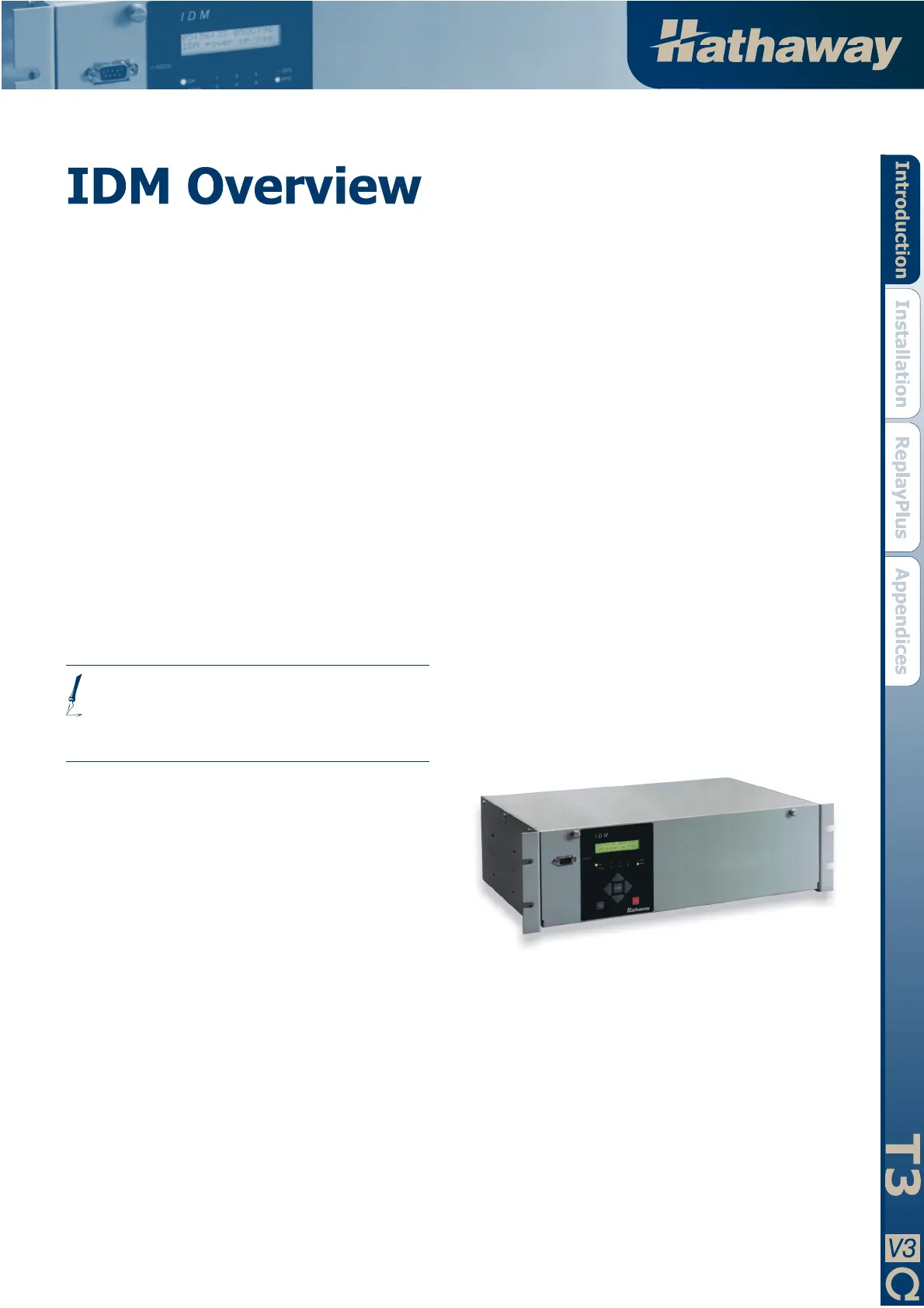

What is an IDM?
The IDM is an advanced multifunction distributed data
acquisition system designed to address the data recording
requirements of a modern transmission or distribution power
substation. The product, when coupled with the Qualitrol
Hathaway Replay
™
Plus software package, provides a powerful
platform for the acquisition, analysis and reporting of data from
power system substations.
The IDM Data Acquisition Unit (DAU) has six standard formats
(or types):
# A 3U rack mounting model, the IDM T1 (Type 1)
# The IDM T2 (Type 2), an upgrade kit for Qualitrol
Hathaway DFR 0, DFR I, DFR II and DFR II (B) fault
recorders giving them the functions of the IDM T3
# A 6U rack mounting model, the IDM T3 (Type 3)
# A portable model, the IDM T4 (Type 4), which is
based on the 3U IDM T1
# A 6U rack mounting model, the IDM T5 (Type 5)
# A portable model, the IDM T6 (Type 6), which is
based on the 6U IDM T3
IDM T1
The IDM T1 DAU is equipped with 10 analog channels and 16
or 32 event channels, in a 3U 19” rack mountable enclosure that
is 312mm deep.
