HATO 200C - Technical Specifications; Check Product

5
3. Technical specifications
Tools required
 A ladder and Tape measure
 Electric drill and assorted drill bits
 Screwdriver
 Spanner / Wrench
 Multimeter / Test pen
 Hacksaw / Cutter
 Pliers / Hammer
Use a helper if possible to assist with the installation.
4. Check
After receiving the product, you should make an unpack-inspection, in which you should check
whether the product was damaged. If you have any problem please contact dealer.

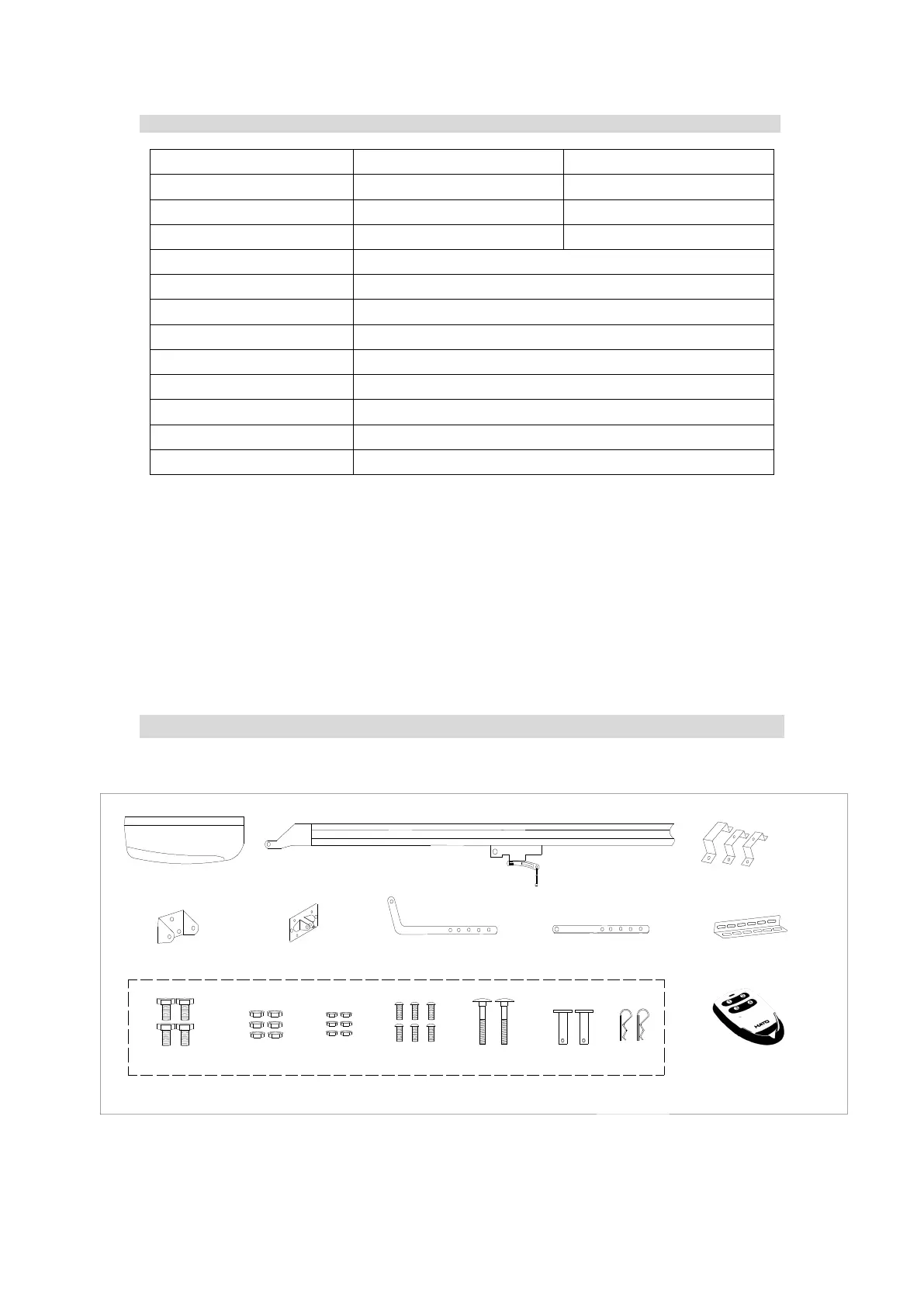

Fig.1
Model
HATO 180C
HATO 200C
Motor power
80 W
100 W
Lifting capacity
800 N
1000 N
Max. door size
8 m
2
12 m
2
Power supply
220X(1±10%)V AC 50-60Hz
Motor
24VDC
Ambient temperature
-20ºC~+50ºC
Working humidity
≦90%
Courtesy light time
3 minutes
Radio frequency
433.92 MHz
Transmitter type
Rolling code
Transmitter battery
27A 12V
Bulb
24V 5W
1.Powerhead (x1)
3. Shuttle&Manual release cord(x1)
2. Chain drive rail assembly (x1)
6. Door bracket (x1)
5. Header bracket (x1)
8. Straight arm (x1)
10. Screw / Screw cap / Pin and R pin
11. Transmitter (x2)
R pin
Pin
Screw(M8x16mm)
Screw cap(M8) Screw cap(M6)
7. L arm (x1)
Screw(M6x22mm)
Screw(M8x55mm)
4. Powerhead
bracket (x3)
9. Angle iron (x1)
