Fig.8
Step 6
Fix the door bracket on the top edge of the door with screws (M8X55) and screw caps (M8).

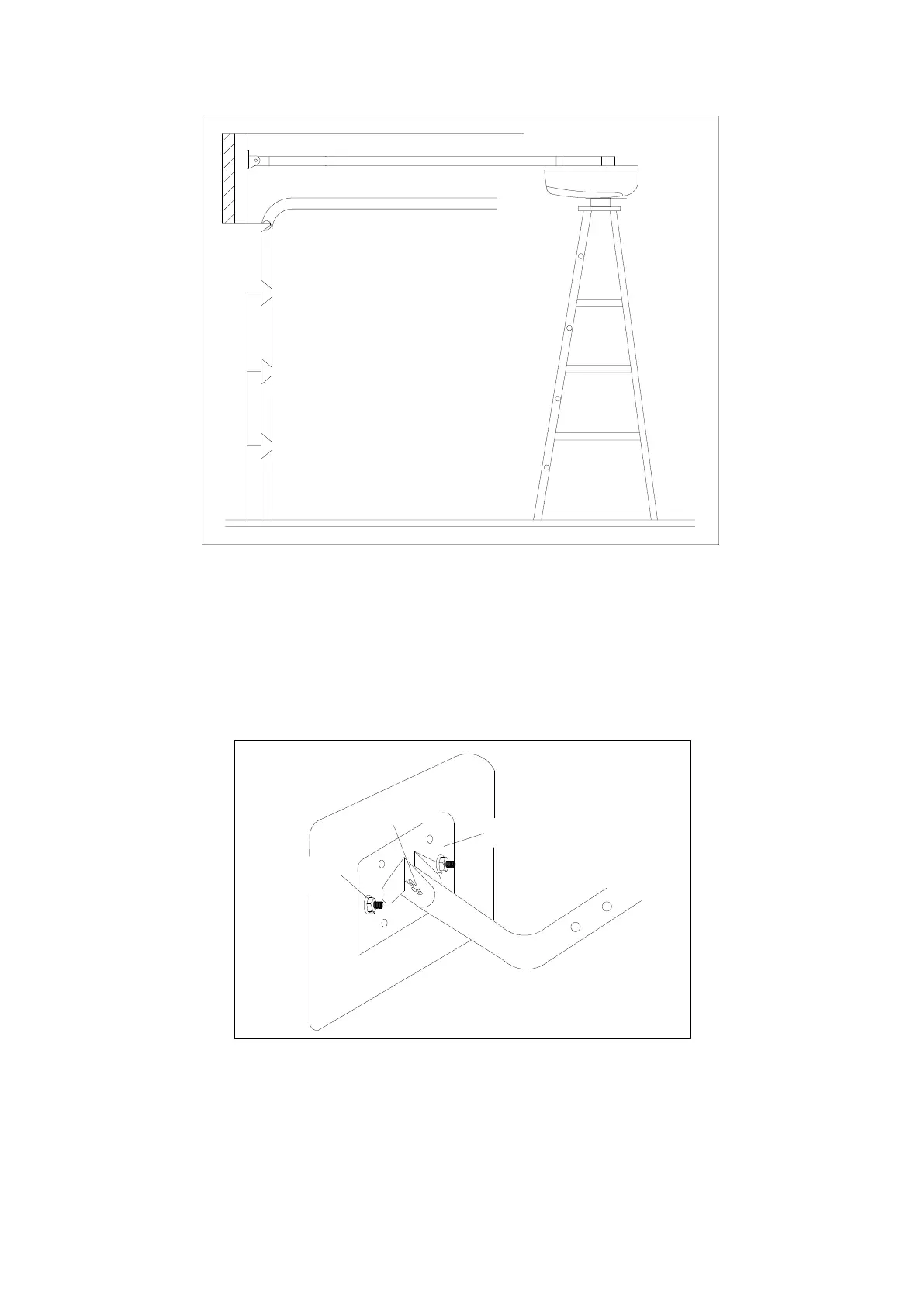

Link the L arm to the door bracket with pin and R pin. Link the straight arm to the shuttle with
pin and R pin, then connect L arm to straight arm with two screws (M8X16) and screw caps
(M8), ensure the door arm can be moved freely. See Fig.8, Fig.9 and Fig.10.
L arm
Door bracket
Pin and R pin(X1)
M8 screw cap(X2)
M8x55 screw(X2)
M8 Screw cap(X2)
M8X16mm Screw(X2)
Fig.9
