ASSEMBLY INSTRUCTIONS
Phase 1:
FRONT END OF TRAILER

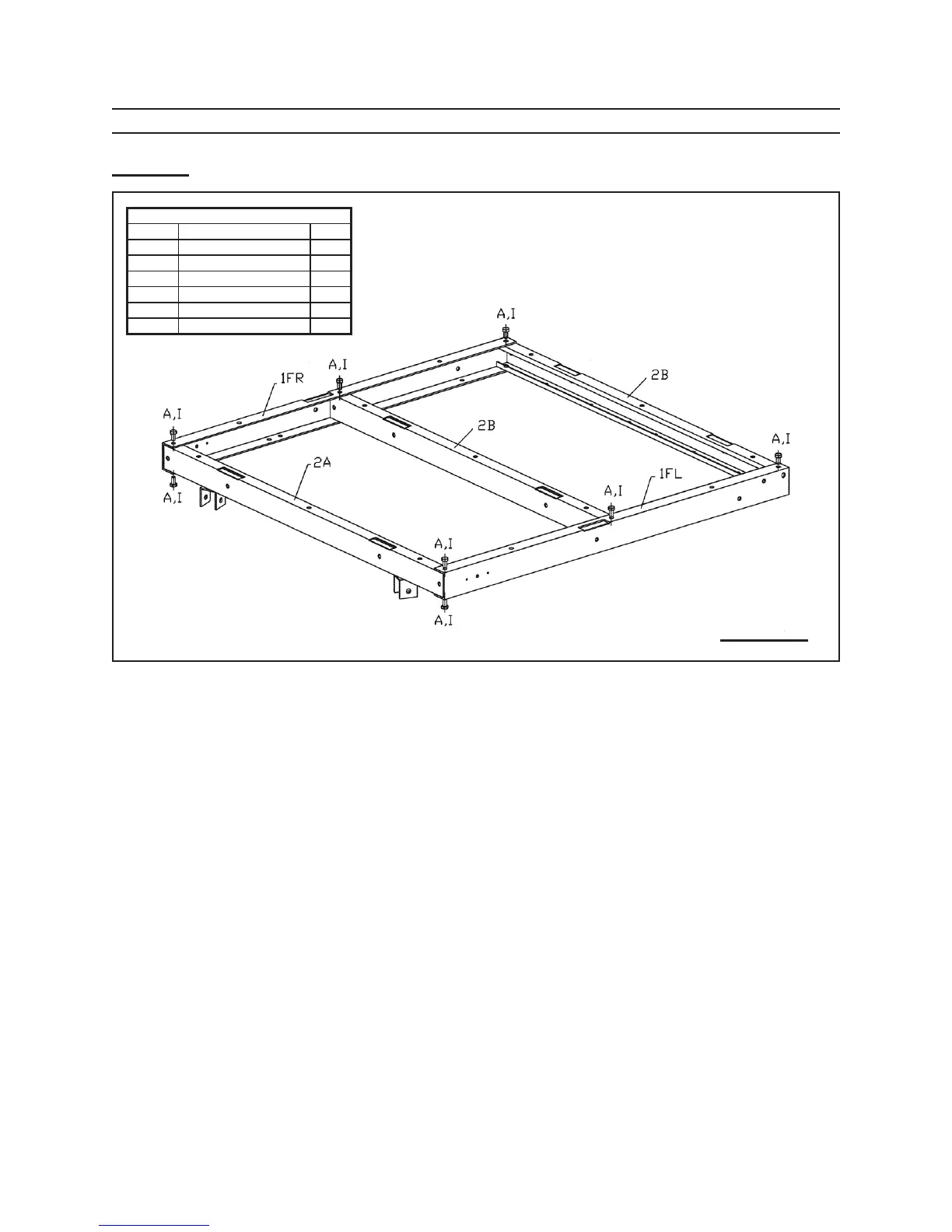

FIGURE A
Parts Needed
Part # Description Qty.
1FL Front Left Side Rail 1
1FR Front Right Side Rail 1
2A Cross Member 1
2B Cross Member 2
A M10 x 20 Bolt 8
I M10 Nylon Nut 8
Lay out the Front Left Side Rail (1FL), Front Right Side Rail (1FR), one Cross Mem-
ber (2A), and two Cross Members (2B). Assemble these parts, using the M10 x 20
Bolts (A) and M10 Nylon Nuts (I). (See Figure A.)
