HAUL MASTER 98511 - Hardware Parts List

SKU 98511 For technical questions, please call 1-800-444-3353. Page 7
PACKAGE
NO.
Part
No.
Description QTY
A
15 Bolt M10 x 35 (1-3/8” L) 4
16 Nut M16 4
17 Flat Washer Ø16 8
B
18 Bolt M12 x 50 (2” L) 8
19 Nut M12 8
20 Flat Washer Ø12 8
C
21 Bolt M16 x 30 (1-3/16” L) 2
23 Flat Washer Ø10 2
D
21 Bolt M16 x 35 (1-3/16” L) 2
22 Nut M10 2
23 Flat Washer Ø10 2
E
24 Bolt M12 x 75 (3” L) 2
25 Nut M12 2
26 Flat Washer 2
F1
27 Bolt M18 x 85 (3-1/2” L) 4
28 Nut M18 4
29 Spring Washer Ø18 4
30 Flat Washer Ø18 8
PACKAGE
NO.
Part
No.
Description QTY
F2
27 Bolt M18 x 85 (3-1/2” L) 4
28 Nut M18 4
29 Spring Washer Ø18 4
30 Flat Washer Ø18 8
G
31 Bolt M12 x 70 (2-3/4” L) 8
32 Nut M12 8
33 Spring Washer Ø12 8
34 Flat Washer Ø12 8
46 Flat Washer Ø16 8
H
35 Bolt M10 x 70 (2-3/4” L) 2
36 Nut M10 2
37 Spring Washer Ø10 2
38 Flat Washer Ø10 2
I
39 J-Hook 8
40 Nut M12 8
41 Spring Washer 8
42 Flat Washer Ø12 8
J
43 Bolt M18 x 70 (2-3/4”L) 4
44 Nut M18 4
45 Flat Washer Ø18 8

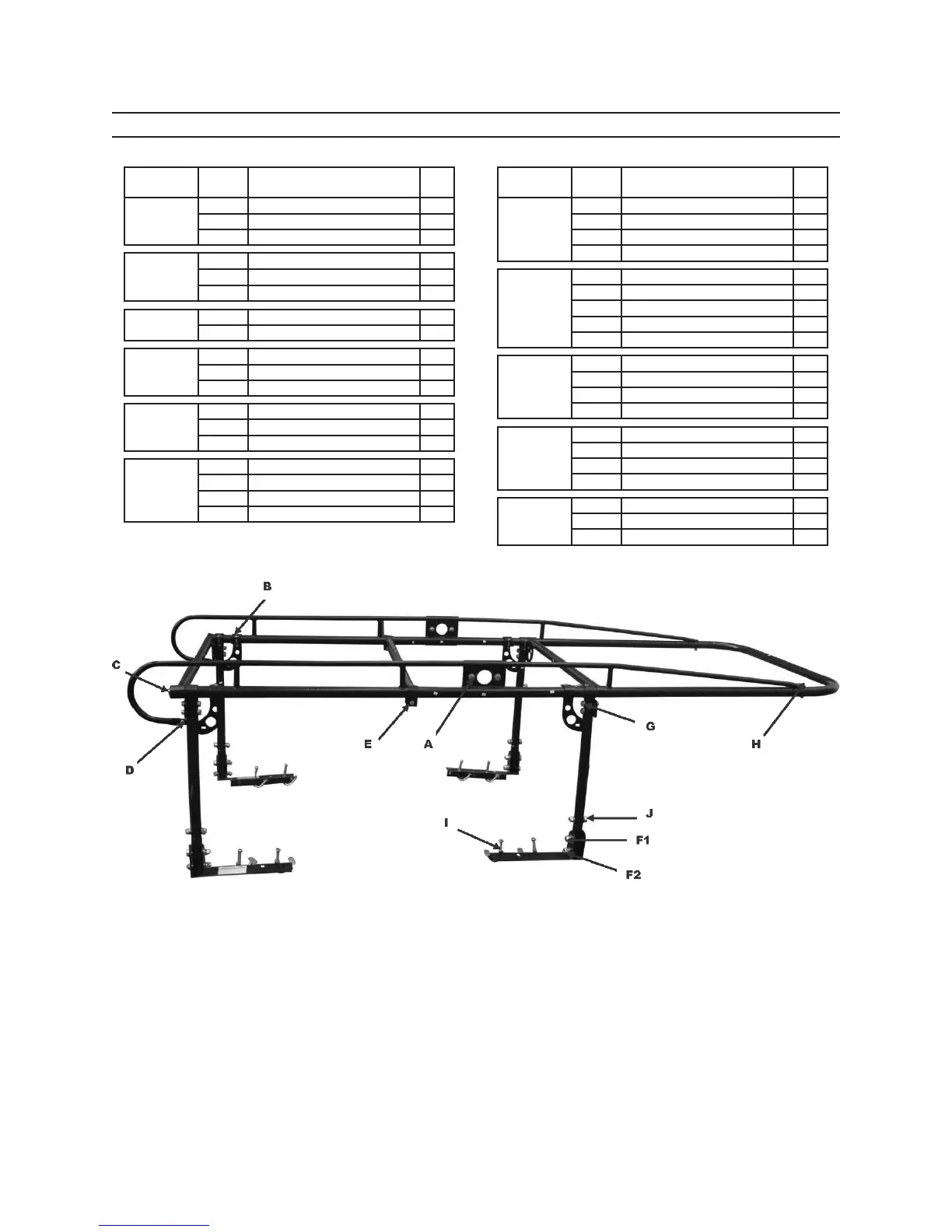

HARDWARE PARTS LIST AND DIAGRAM
REV 10b, 10c
