83
2420344510 E 11.11 AUS
Telescopic handlers
E
- Attachments

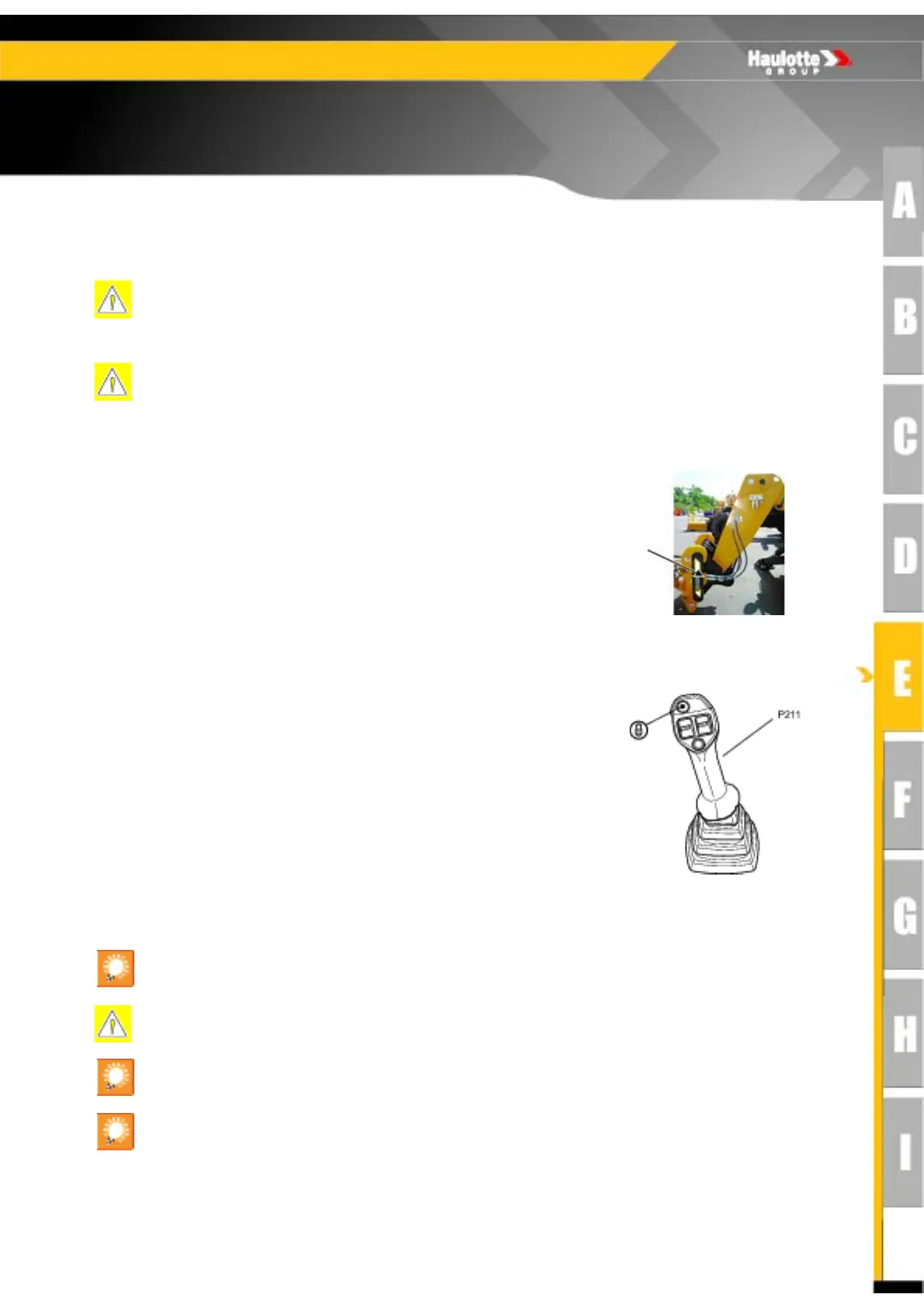

5.2 - HYDRAULIC ACCESSORY LOCKING DEVICE (OPTION)
5.2.1 - Specific instructions
5.2.2 - Operation
• Start the engine.
• Align the tool apron pin with the attachment recess by lifting and crowding ( P211 ).
• Carry out the attachment installation operations while holding the locking button down.
• Release the button to lock.
Before installing the hydraulic adaptation kit, ensure :
• there is no internal malfunction. The ECU indicator must not show any boom angle fault (-5 flashes)
• that the boom is below 15 °.
The hydraulic adaptation kit connection is carried out with the machine stopped.
• Connect the hoses from the hydraulic adaptation kit to the
push/pull sockets on the tool holder carriage.
• To unlock the tool holder carriage, press the locking button
for at least 2 s and hold down.
Releasing the button locks the attachment.
Do not press on the locking button for longer than 2 s when the auxiliary line is connected to the
attachment. Danger of unexpected movement.
If the attachment requires hydraulic control, connect auxiliary hydraulic hoses A and B.
Hold the button down for 5 s to unlock the carriage.
