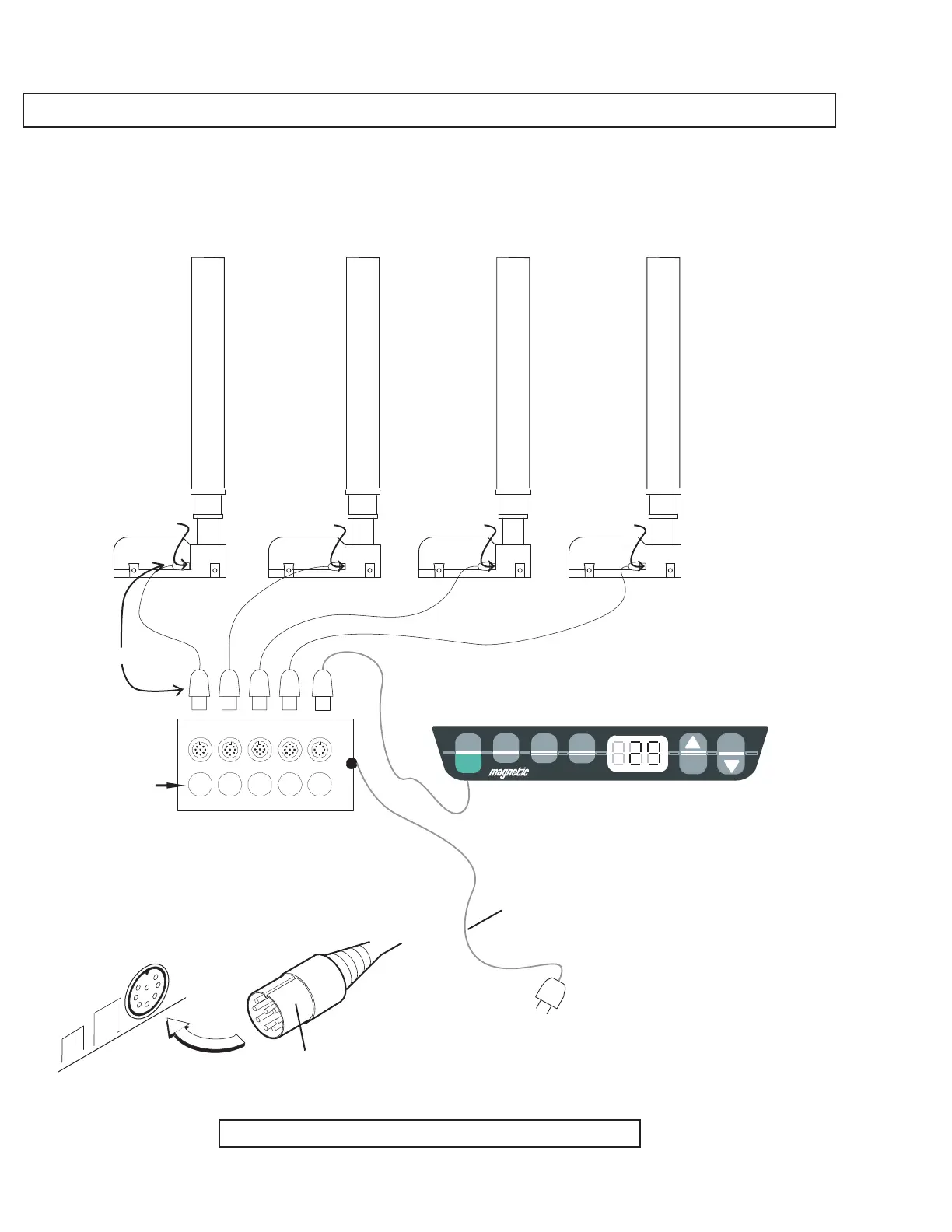

1396/1398 WIRING DIAGRAM
5
↥2004 Hausmann Industries, Inc.
11/3/04
HS
2134
56789
Lift Motor
Column 4
# TMA
Lift Motor
Column 3
# TMA
Lift Motor
Column 2
# TMA
Lift Motor
Column 1
# TMA
Control Box
# LD-014
Blank
Electrical Power Cord
hardwired to Control Box
110V, 60 Hz
Port
Actuator Connecting Cable
(at both ends of cable)
Memory
Buttons
LED
Display Up Down
Hand Switch Panel
# LD-011
Unit is shipped fully wired and ready for operation.
1
S
2
3
4
Connectors
Port
Port Port Port
Note:
TMA Lift Motors
are 24V-DC.
CAUTION: You must remove 110V power plug before attempting any factory authorized repair.
ALL CORD CONNECTIONS FROM LIFT COLUMNS TO CONTROL BOX ARE PRE-CONNECTED AT
FACTORY. DO NOT REMOVE CONNECTIONS WITHOUT FACTORY AUTHORIZATION.
