Hayter R48 - Deck and Baffle Assembly

111-2088 Rev B

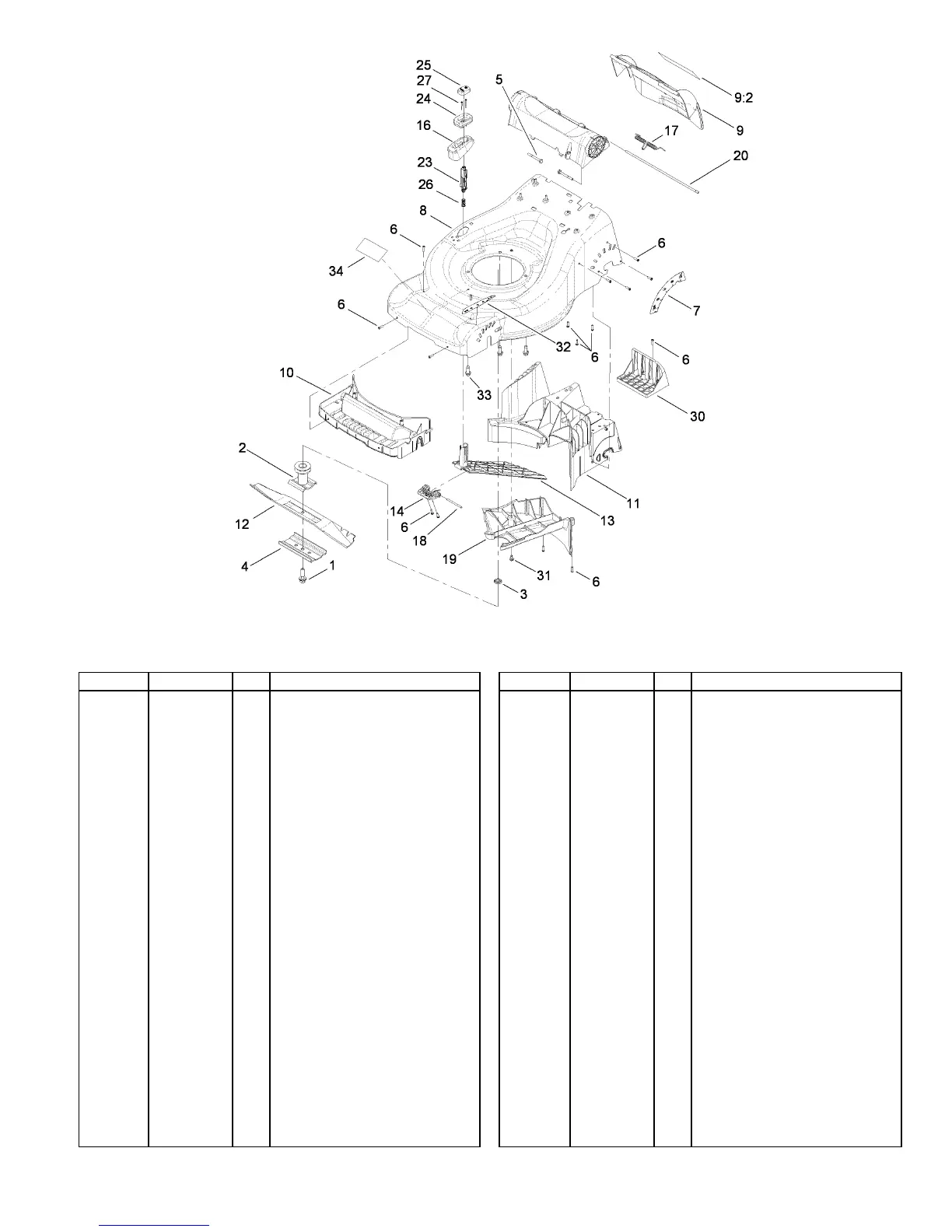

Deck and Baffle Assembly
2
Ref Part No. Qty. Description
Bolt-Blade1
105-8579
1
Blade Driver ASM2
106-3987
1
Spacer-Driver3
106-3999
1
Support-Blade4
108-3766
1
Screw-HH5
110-7110
2
Screw-Torx, Pan Head6
110-1271
23
Decal-HOC, Rear7
110-7058
1
Housing-Deck8
115-2784
1
Rear Door ASM9
114-5373
1
Decal-Warning9:2
110-7126
1
Baffle-Front10
110-7066
1
Baffle-Rear11
114-5380
1
Blade12
110-7080
1
Door-Recycle13
110-7094
1
Hinge-Door, Recycle14
110-7095
1
Cover-Door, Recycle16
110-7097
1
Spring-Torsion17
110-7107
1
Pin-Hinge18
110-7108
1
Cover-Belt19
110-7109
1
Bar-Pivot, Rear Door20
110-7119
1
Latch-Recycle23
110-7129
1
Housing-Knob24
110-7136
1
Knob25
110-7138
1
Spring-Compression26
110-7141
1
Ref Part No. Qty. Description
Screw-Torx, Pan Head27
110-7143
2
Tray-Battery30
110-7154
1
Screw-HH31
110-7170
1
Decal-HOC32
110-7178
1
Screw-Taptite, HWH33
110-7182
3
Decal-Hayter34
410087
1
