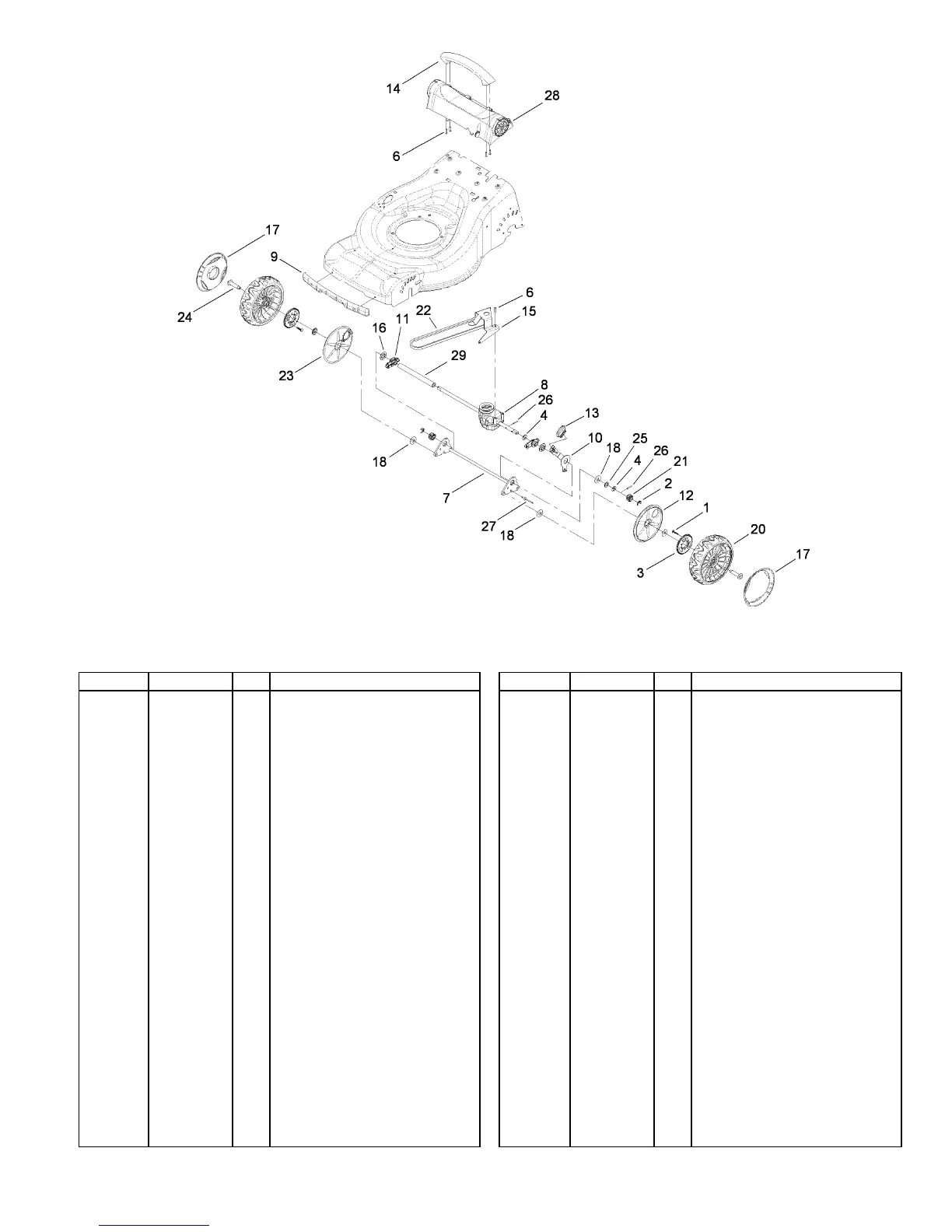

Hayter R48 - Drive Assembly

111-2088 Rev B
Drive Assembly
3
Ref Part No. Qty. Description
Screw-Drive1
27-6260
6
Ring-Clip, Locking2
65-2720
2
Gear-Wheel, 52T3
105-3035
2
Washer-Thrust, Keyed4
112-3911
2
Screw-Torx, Pan Head6
110-1271
7
Pivot Bar ASM7
110-7016
1
Gearbox ASM8
110-7042
1
Bumper-Front9
110-7067
1
Lever-HOC, Rear10
110-7073
1
Bushing-Camlock11
110-7112
2
Cover-Wheel12
110-7114
2
Knob-HOC13
110-7125
1
Handle-Rear14
110-7155
1
Bracket-Gear Case15
110-7158
1
Spacer-Flange16
110-7171
2
Cover-Wheel, Rear17
110-7174
2
Washer18
110-7179
3
Rear Wheel ASM20
110-7254
2
Pinion21
110-9417
2
V-Belt22
110-9429
1
Washer-Stepped23
614426
2
Bolt-Shoulder24
614650
2
Washer-Thrust25
110-7191
1
Pin-Roll26
110-7192
2
Ref Part No. Qty. Description
Rivet-Pop27
110-7193
1
Mount-Handle28
114-5372
1
Spacer29
115-3850
1
