Check that the available electrical power supply and the network
frequency correspond to the required operating current, taking into
account the appliance’s specific location and the current needed to
power any other appliance connected to the same circuit.
ECP 06 230 V~ +/- 10 % 50 Hz 1 Phase
ECP 08 230 V~ +/- 10 % 50 Hz 1 Phase
ECP 11 230 V~ +/- 10 % 50 Hz 1 Phase
ECP 13 230 V~ +/- 10 % 50 Hz 1 Phase
ECP 15 230 V~ +/- 10 % 50 Hz 1 Phase
See the corresponding wiring diagram in the appendix.

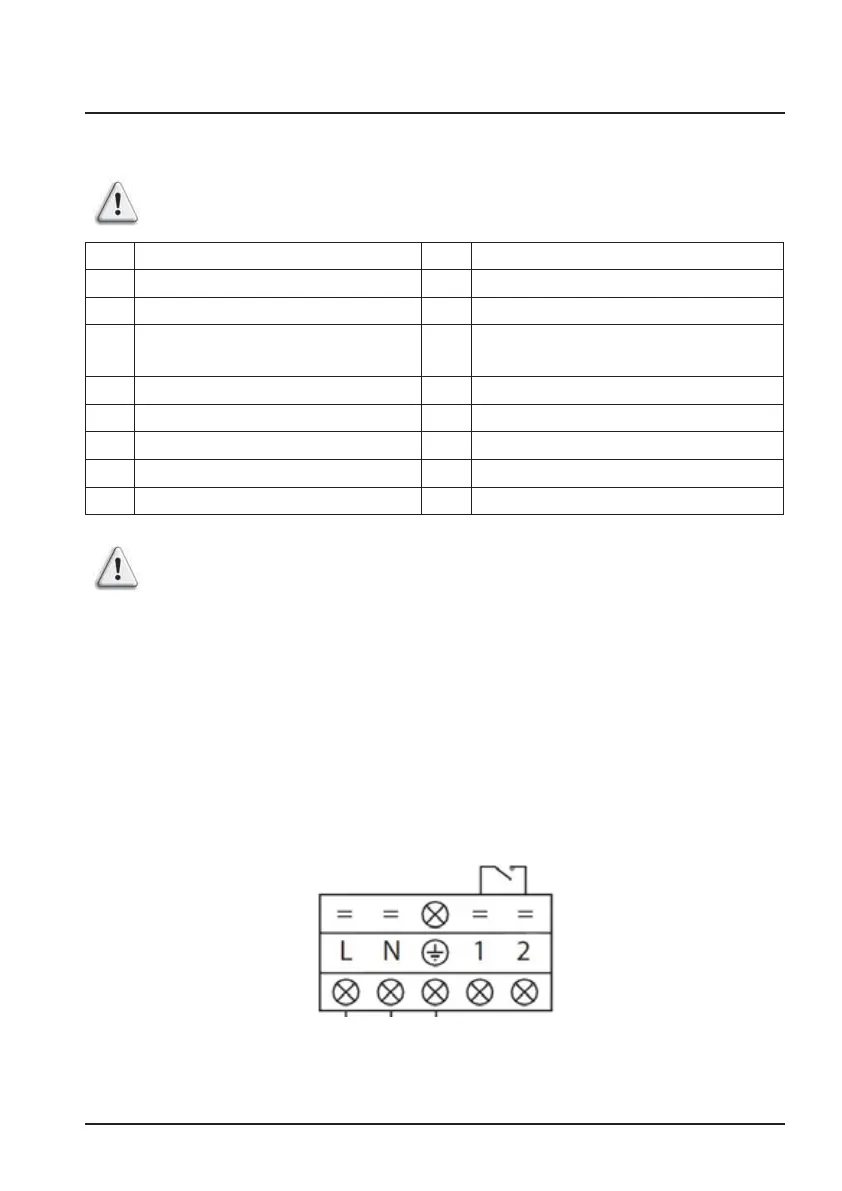

The connection box is located on the right side of the unit. Three of the
connections are for the power supply and two are for the filtration pump
control (Servo control).
3. INSTALLATION AND CONNECTION (continued)
3.4 Electrical Connection
F NF C15-100 GB BS7671:1992
D DIN VDE 0100-702 EW EVHS-HD 384-7-702
A ÖVE 8001-4-702 H MSZ 2364-702/1994/MSZ 10-553 1/1990
E UNE 20460-7-702 1993,
RECBT ITC-BT-31 2002
M MSA HD 384-7-702.S2
IRL Wiring Rules + IS HD 384-7-702 PL PN-IEC 60364-7-702:1999
I CEI 64-8/7 CZ CSN 33 2000 7-702
LUX 384-7.702 S2 SK STN 33 2000-7-702
NL NEN 1010-7-702 SLO SIST HD 384-7-702.S2
P RSIUEE TR TS IEC 60364-7-702
Power supply
230V~ / 50Hz
Dry contact 7A Max
potential free
The electrical installation and wiring of this equipment must comply
with local installation standards.
