Hayward HP50A - Disconnect & Test Fan Motor; Test Fan Capacitor

35
Isolate the fan and measure resistance across the wires.
They should be: between red & blue (83ohms), blue &
black (203ohms), & red & black (121ohms). IF correct go
to 4L. IF incorrect, replace the fan motor (HPX2000-
330124).
Disconnect wires to the fan capacitor and measure for
resistance (pg. 18). IF capacitor tests bad, then replace
the fan capacitor (HPX2000-350012). IF correct contact
tech support for further assistance
(908) 355-7995.
Disconnect & Test Fan Motor
Step 4K
Step 4L
4. Error Code: E02 (cont.)
Test Fan Capacitor

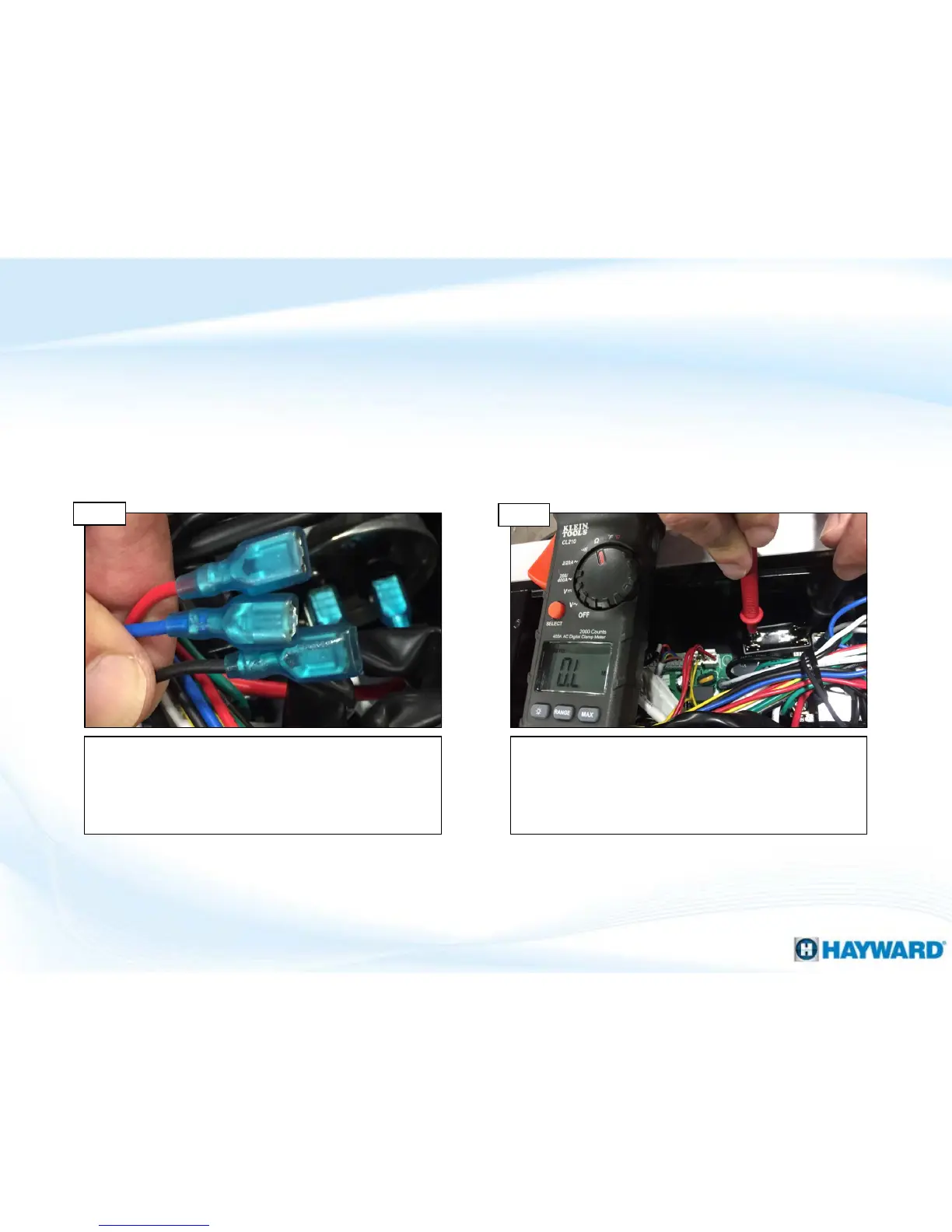

To test the fan motor, isolate the motor wires and measure resistance across red &
blue (83ohms), blue & black (203ohms), and red & black (121ohms).
