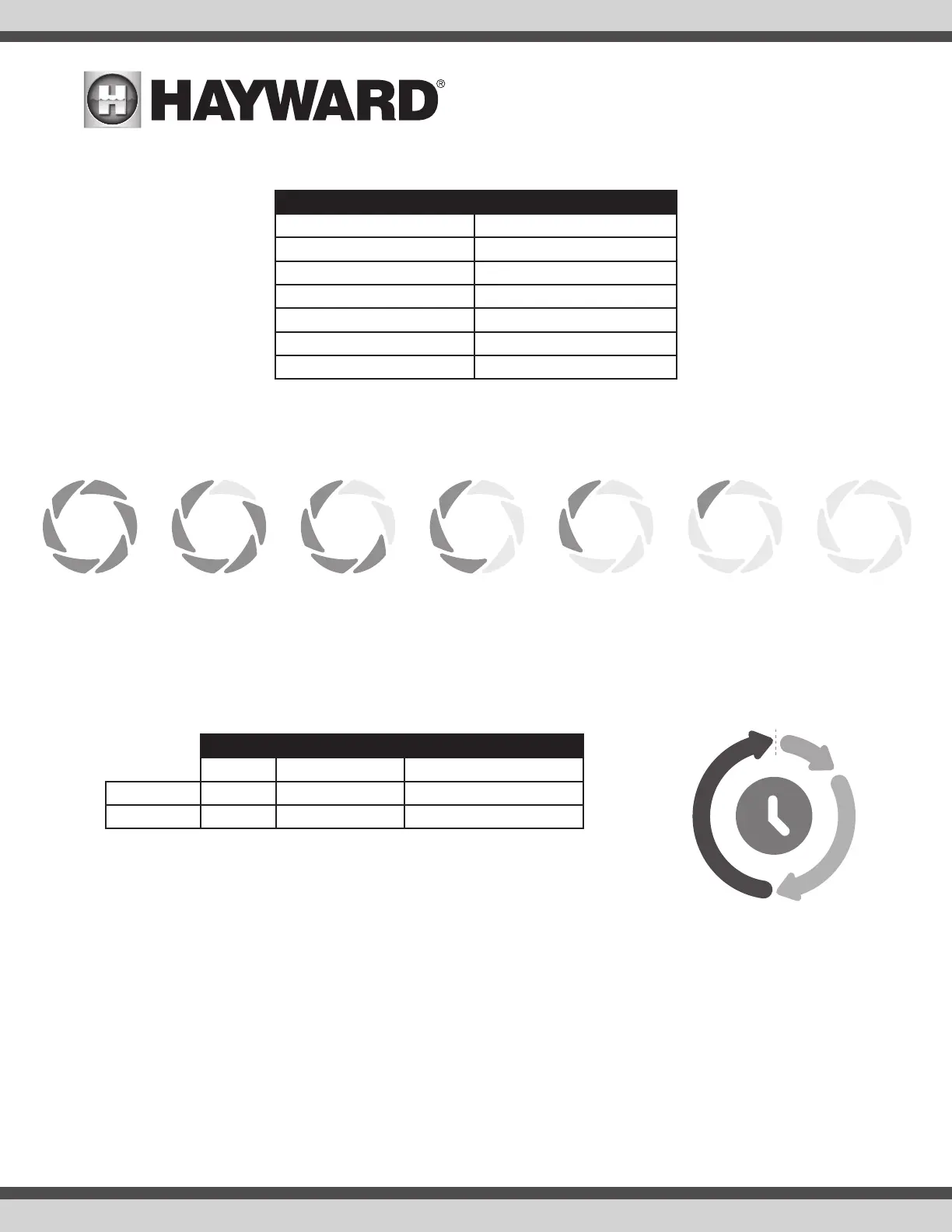

The LED indicator communicates operating mode and pump status.
Operating Mode or Status LED Behavior
Normal Operation Solid Green
Manual Override Slow Flashing ON/OFF
Programming – Interval 1 Quick Flashing - One Blink
Programming – Interval 2 Quick Flashing - Two Blinks
Programming – Interval 3 Quick Flashing - Three Blinks
Press & Hold Confirmation Three Rapid Flashes
System Errors See Table on page 15
Operating Speeds
There are six speeds available on the XE pumps. When programming the Daily Schedule (page 11), refer to this information.
Normal Operation – The Daily Schedule
The XE pump will operate on a 24 hour daily schedule which runs continuously and restarts every 24 hours. This 24 hour schedule is split into 3 time inter-
vals which are each programmable to one of several different speeds. The default schedule from the factory is shown below:
24 Hour Daily Schedule - Default
Interval 1 Interval 2 Interval 3
Duration 4 Hours 8 Hours 12 Hours
Speed 50% 50% 50%
To prime the system, the pump will run for 8 minutes at maximum speed whenever power is first applied.
The daily schedule starts as soon as power is applied to the pump. After priming, the pump will run at the speed programmed in Interval 1 for four hours, and
then it will change to the speed programmed in Interval 2 for eight hours, and finally the speed of Interval 3 for twelve hours. After the end of Interval 3, the
pump will return to the start of Interval 1. This daily schedule will run continuously until power is removed from the pump.
In order to ensure the pump operates throughout the day at the desired speed, apply power to the pump at a time suitable for the application.
If it is desired that the pump run at 50% at all times, apply power to the pump and use the default schedule. If different speeds are desired, program the daily
schedule as shown on page 11.
Important: Any time power is removed and re-applied to the pump, such as turning off a switch or breaker, the pump will restart the daily schedule at the
beginning of Interval 1. The start of the daily schedule will always be the time at which power is applied to the pump. Note that when power is removed from the
pump, the LED will blink for a short period and you must wait for the LED to fully turn off before reapplying power. This may take up to 30 seconds. If power is
applied while the LED is still blinking, the motor will not start for 6 minutes. This delay can be overridden if the button is pressed.
I
N
T
E
R
V
A
L
1
I
N
T
E
R
V
A
L
3
1
2
h
o
u
r
s
8
h
o
u
r
s
I
N
T
E
R
V
A
L
2
4
h
o
u
r
s
24 hour
START: POWER ON
100% 80% 70% 50% 45% 40% 0%
Speed1 Speed2 Speed3 Speed4 Speed5 Speed6 STOP
