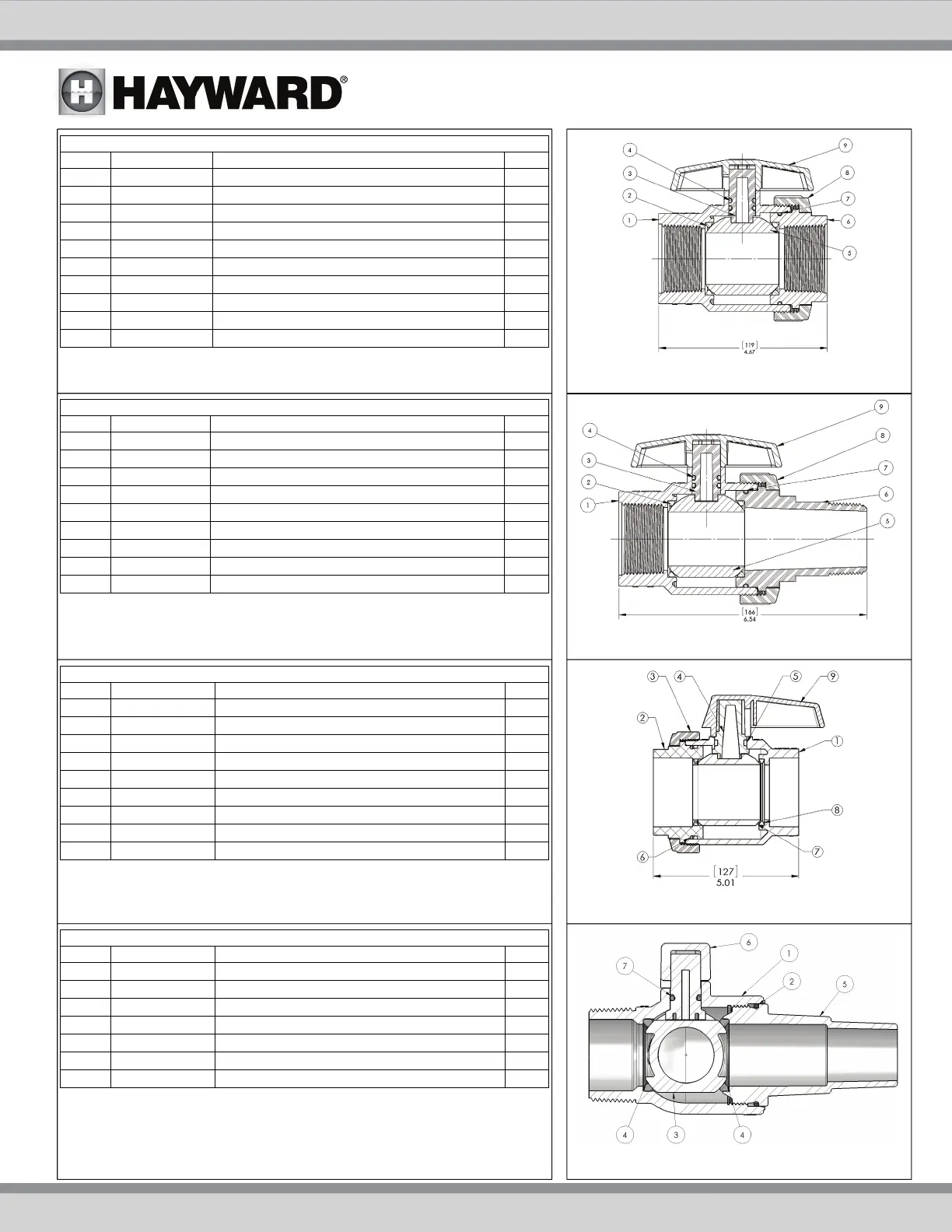

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS 4
Two Way Ball Valves
SPARE PARTS: SP0722 1 ½”
F
P
T
ABS-SP0722S 1 ½” SOC PVC
ITEM PART NUMBER DESCRITPION QT
Y
1 N/A VALVE BOD
Y
2 SPX0722P2 SEAT (SET OF 2) 1
3 SPX0722B7 STEM 1
4 SPX0722GH O-RING KIT (STEM and END CONNECTOR) 1
5 SPX0722C7 BALL 1
6 SPX0722ET7 END CONNECTOR 1 ½” FPT
6a SPX0722ES7 END CONNECTOR 1 ½” SOCKET (PVC)
7 SPX0722GH O-RING KIT (STEM and END CONNECTOR)
8 SPX0722D NUT, ASSEMBL
Y
9 SPX0722
F
HANDLE 1
Do not overtighten assembly nut. Only tighten nut when valve is in the
closed position.
SP0722 SP0722S
SP0723 SP0723S
SP0724S
SP0729
SPARE PARTS SP0
7
23 VALVE 1 ½” FP
T
x 1 ½” MPT ABS
ITEM PART NUMBER DESCRITPION QT
Y
1 N/A VALVE BOD
Y
-SP0723S HAS A 1 ½” SOCKET
2 SPX0722P2 SEAT (SET OF 2) 1
3 SPX0722B7 STEM 1
4 SPX0722GH O-RING KIT (STEM and END CONNECTOR) 1
5 SPX0722C7 BALL 1
6 SPX0723ET7 END CONNECTOR 1
7 SPX0722GH O-RING KIT (STEM and END CONNECTOR)
8 SPX0722D NUT, ASSEMBL
Y
9 SPX0722
F
HANDLE 1
SPARE PARTS SP0724S Trimline VALVE 2” Socket ABS
ITEM PART NUMBER DESCRITPION QT
Y
1 N/A VALVE BOD
Y
2 N/A END CONNECTOR SOCKET 1
3 N/A NUT 1
4 N/A STEM 1
5 SPX0724GA SEAL KIT (O-RING & BALL) 1
6 SPX0724GA SEAL KIT (O-RING & BALL) 1
7 SPX0724C BALL
8 SPX0724GA SEAL KIT (O-RING & BALL)
9 SPX0724J HANDLE 1
SPARE PARTS: SP072
9
ECONOLINE 1 1/2”MPT X HOSE ABS
ITEM PART NUMBER DESCRITPION QT
Y
1 N/A VALVE BOD
Y
2 SPX0728H O-RING 1
3 SPX0728C BALL (Limited Availability) 1
4 SPX0728F2 SEAT KIT (2) 1
5 SPX0729E END CONNECTOR HOSE ADAPTER 1
6 SPX0728D HANDLE 1
7 SPX1441Z1 O-RING (Limited Availability)
