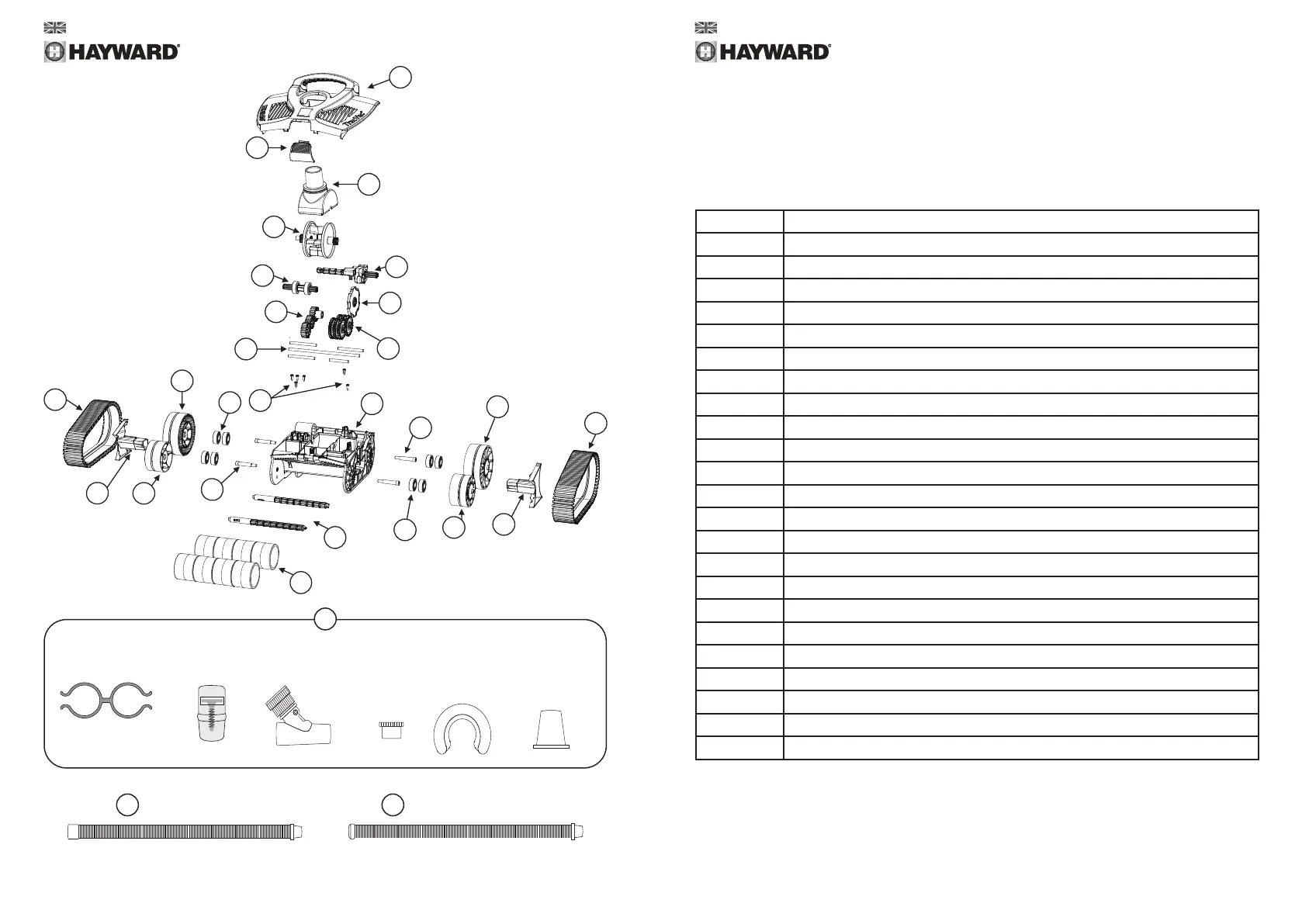

COUNT DESCRIPTION
1 Top Cover Kit (Top cover including handle and balancing weights)
2 Turbine Cover Swivel Kit (Turbine Cover/Swivel)
3 Buckle/Latch Kit
4 Track Kit (Set of 2)
5 Front Small Wheel Kit (Set of 2, including bearings and mushroom insert)
6 Rear Large Wheel Kit (Set of 2, including bearings and mushroom insert)
7 Roller Kit (Set of 4 rollers)
8 Roller Bar kit (Set of 2)
9 Left Drive Kit (Long drive shaft & Bearing Housing)
10 Right Drive Kit (Short Drive Shaft & 2 bearings)
11 Cam Kit (Cam & 1 reduction gear)
12 Cam Reduction Gear Kit (5 reduction gears and SS Shaft)
13 Turbine Kit (Just the Turbine)
14 Drive gear Kit (3x drive side gears)
15 Bearing kit (Set of 8)
16 SS Shaft Kit (5x)
17 SS Screw Kit (6x internal SS Shaft Screws)
18 Wheel Screw Kit (4x SS Screws for the wheels)
19 Chassis kit (Chassis with balancing weights & latch spring installed)
20 Side Covers (2x), Left-Right
21 Accessory Kit
22 Leader hose
23 Connector hose
14
10
13
2
9
1
3
11
12
17
18
6
4
20
5
15
19
18
6
8
7
5
20
4
16
15
Flow
Regulator
Valve
Regulator
Cap
Float
Double Hose Clip
Flow
Gauge
MAXIMUM FLOW
MINIMUM FLOW
21
Connector HosesLeader Hose
23 22
Hose Cone
Adaptor
