RTN/M2
SPECIFICATIONS
24
VersionMaterialMax. capacity
for load cell
Order number
1-RTN/M2LB33T
33 t galvanized
WITH stay rod
1-RTN/M2B33T WITHOUT stay rod
Scope of supply
Complete weighing module mounted with stay rod without RTN load cell. For additional
information on the appropriate load cell, please refer to our data sheet RTN...
Notice
Instead of the load cell, a dummy is installed which is able to support loads up to the val
ues specified above. Please take care you have to lift the mounted tank by min. 10 mm to
replace the dummy with an RTN load cell.

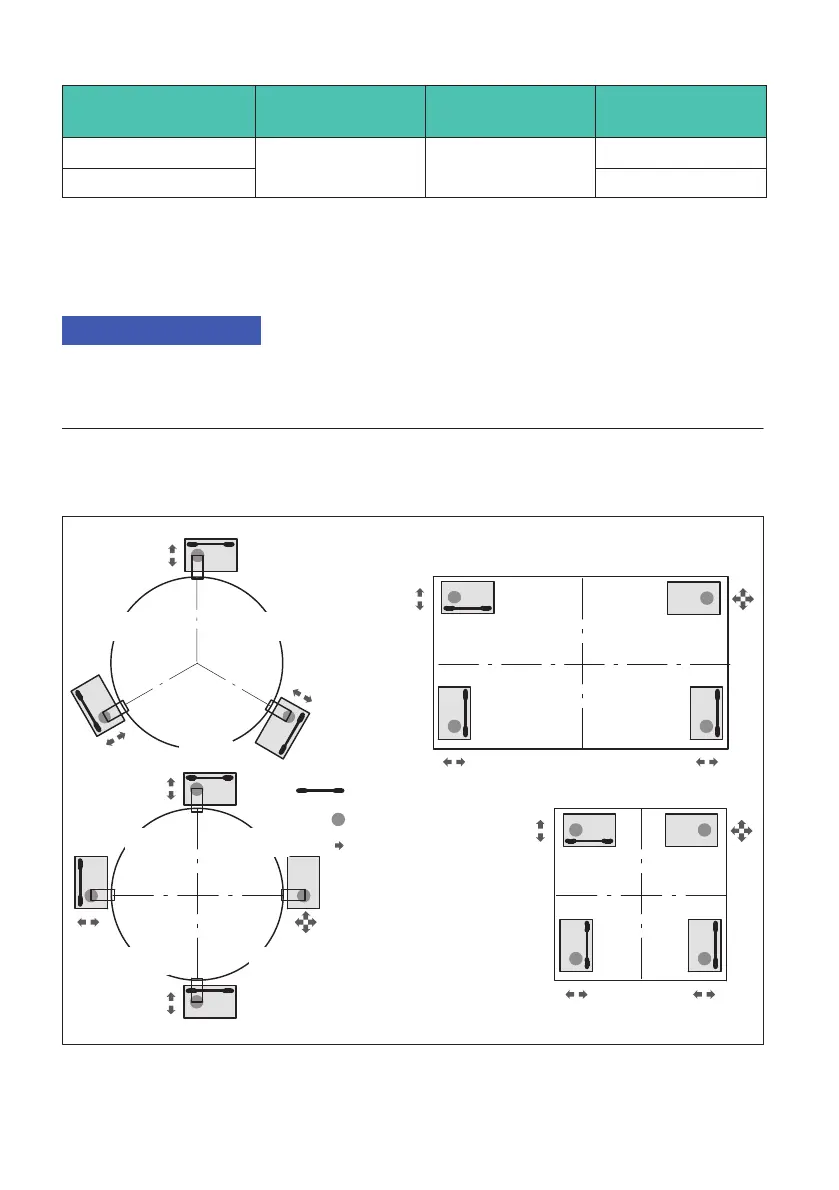

Mounting examples for weighing modules with stay rods
Stay rod
Load introduction
Degree of freedom
120° 120°
120°
90°90°
90° 90°
Attention: The represented
bearing arrangements con
sider only weighing‐techni
cal criteria.
The carrying and stability
must be examined and
guaranteed in each case by
the operator.
