11
P2VA1/DA2510
HBMA2130-2.1 de/en
2 Connection

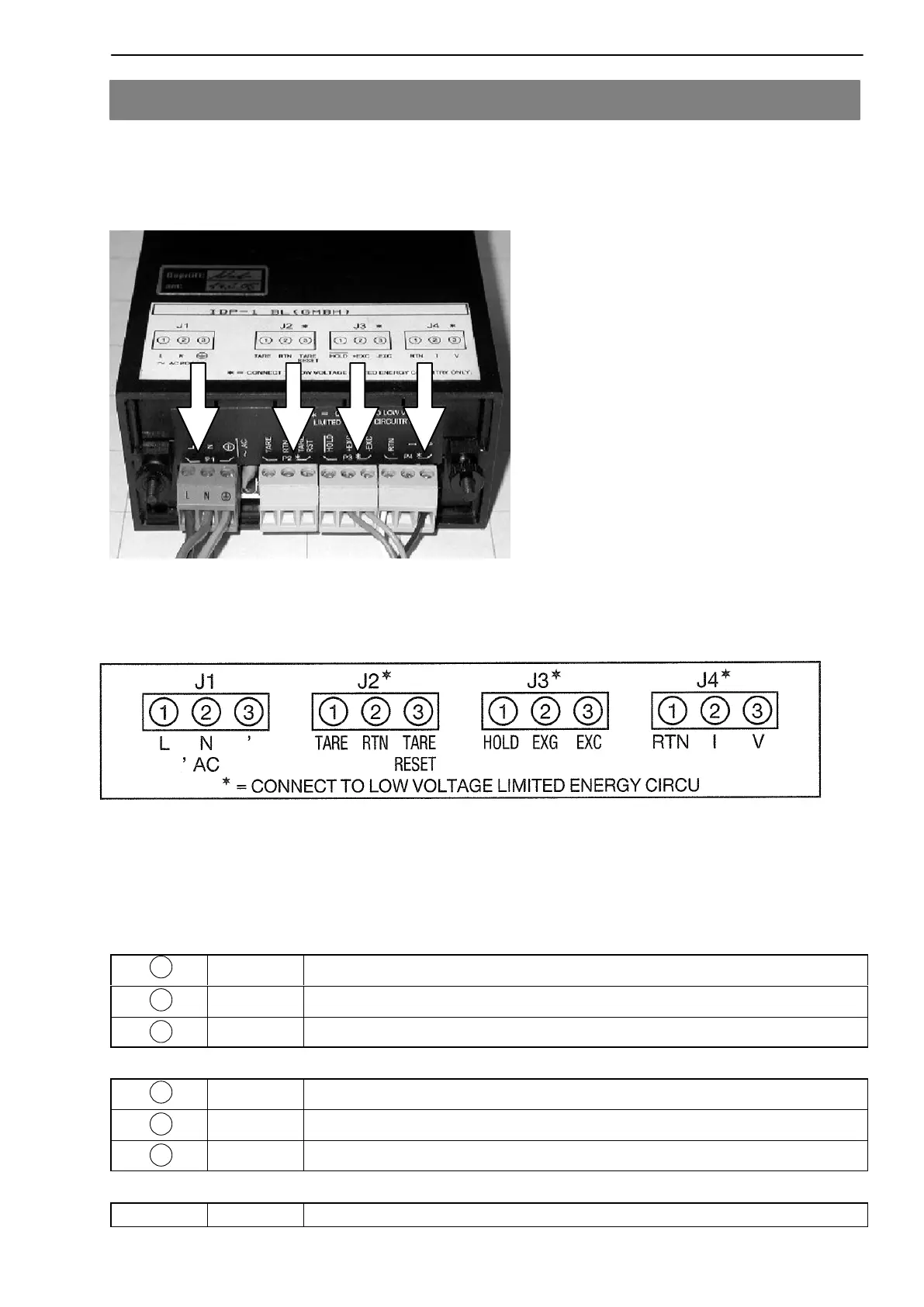

The pressure transducer is connected to the terminals on the rear of the
DA2510 with the connection cable provided.
Assignment of plug-in terminal designations (device cover sticker) to terminals
on rear:
AC
Connection P2VA1 with output 0.5 ... 10 V
J3- -
J3- Brown Power supply +24V
J3- Blue Supply voltage 0 V
J4- White Output 0 V
J4- -
J4- Black Output 0.5 ... 10 V
- Gray TEDS is not used
