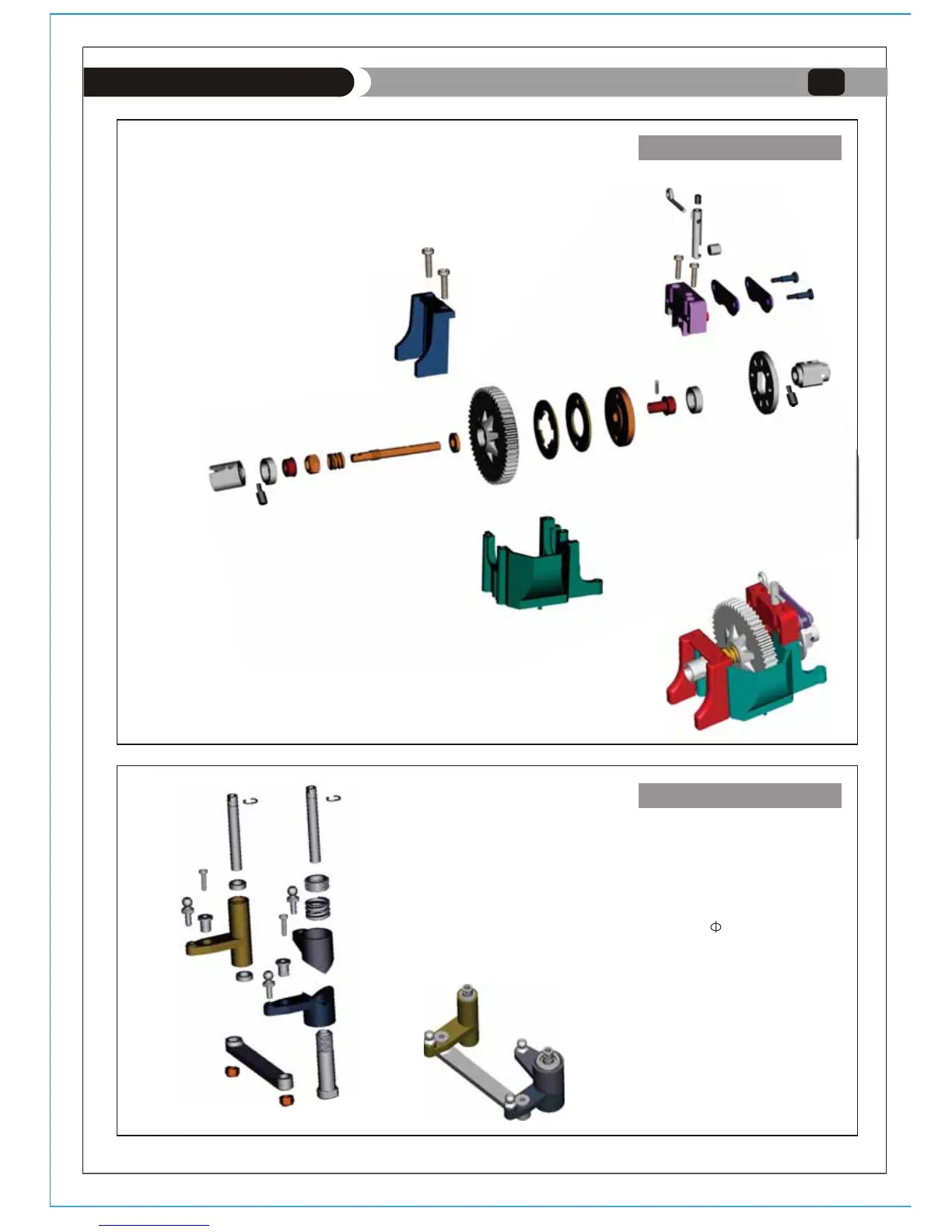

HBX WildFire 3378 - Centre Diff. Assembly; Steering Assembly

Assembly Diagrams-2
Centre Diff. Assembly
23
Steering Assembly
1
2
3
4
5
6
7
8
9
10
11
12
14
13
3
15
2
16
17
17
18
19
20
24
22
26
25
21
23
26
27
1. Centre Diff. Outdrive-1
2. Grub Screw 3*3-2*7
3. Ball Bearing 10*15*4
4. Ball Bearing Bush
5. Lock Nut M6
6. Load Spring
7.Centre Diff. Gear Shaft
8. Copper Bush
9. Centre Diff. Gear
10. Gear Ant--friction pad-1
11. Gear Ant--friction pad-2
12. Gear Ant--friction pad Mount
13. Pin 2*12
14. Ball Bearing Bush Retainer
15. Disc Brake
16.Centre Diff. Outdrive-1
17.Round Head Screw 3*12
18.Brake Pad
19. Centre Gear Mount-3
20.Round Head Self Tapping Screw 3*12
21.Brake Bar
22. Brake Block
23. Brake Post
24. Grub Screw 3*3
25.Centre Gear Mount-1
26. Centre Gear Mount-2
1
1
2
2
3
4
5
5
5
6
7
3
6
8
9
10
11
12
13
13
1.E-Clip (4mm)
2. Steering Post
3. Steering Plate Bush
4.Steering Adjustable Ring
5.Ball Stud Screw 4.8
6. Steering Bush Insert
7. Steering Post Bushing A
8. Steering Bushing Load Spring
9. Steering Post Bushing Assembly A-1
10.Steering Post Bushing Assembly A-2
11. Steering Post Bore
12. Steering Ackerman Plate
13. Lock Nut M2.5
14. Round Head Screw 2.5*12
14
14
