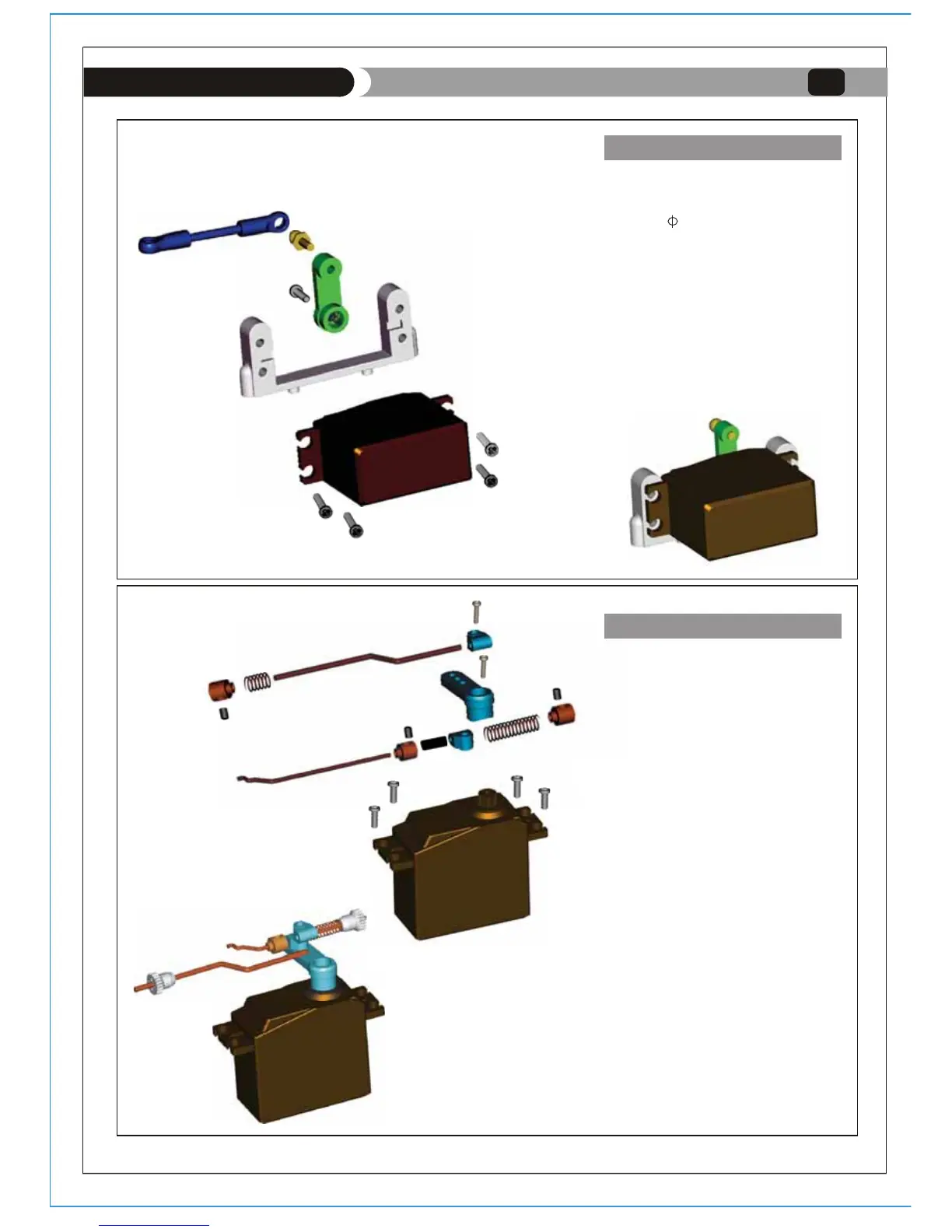

Assembly Diagrams-4
25
Steering Servo Assembly
1. Grub Screw 3*3
2. Throttle/brake Bar Locator
3. Brake Bar Load Spring
4. Throttle Bar
5. Brake Bar
6. Silicon Rubber Tubing
7. Throttle/brake bar retainer
8. Round Head Screw 2.5*17
9. Throttle Bar Load Spring
10. Round Head Self Tapping
Screw 2.6*8
11. Servo Arm
12. Round Head Self Tapping
Screw 3*8
13. Servo Unit
1
2
3
4
5
7
7
7
7
6
1. Servo Linkage Set
2. Ball Stud. 4.8
3. Round Head Self Tapping Screw 2.6*8
4. Servo Arm
5. Servo Retainer
6. Servo Unit
7. Round Head Self Tapping Screw 3*8
1
2
3
4
1
2
6
7
8
10
1
2
9
11
13
12
12
12
12
5
7
Throttle Servo Assembly
