1
2
2
3
3
4
4
5
6
6
7
8
9
10
11
12
17
18
19
6
20
22
23
21
19
6
25
26
27
28
29
16
16
14
13
15
13
15
16
16
14
22
24
29
28
27
26
25
19
23
22
22
24
6
6
21
20
19
18
17
34
2
32
16
31
30
33
34
2
32
33
31
16
30
35
19
36
38
37
39
40
36
41
42
43
44
44
45
46
11
19
10
9
6
47
48
49
50
2
2
2
2
48
49
50
51A
55
54
53
52
61
62
63
64
65
56
57
58
60
59
17
66
67
68
69
19
19
25
26
29
29
69
68
25
26
19
19
67
66
17
70
71
73
13
72
13
72
73
16
16
16
16
4
6
6
6
6
4
2
2
74
75
75
76
77
77
79
79
80
78
81
51B
51B
51C
51C
1.Front Bumper
2. Shock Ball 4.8
3. Front Shock Set
4. Shock Ball Stud. 4.8
5. Front Shock Tower
6. Lock Nut M3
7. Front Body Post
8. Front Lower Suspension Arm Holder
( Outside)
9. Front/rear Bulkhead Housing A
10. Front/rear Diff. Complete
11. Front/rear Bulkhead Housing B
12. Front Lower Suspension Arm Holder
( Inside)
13. Front/rear Lower Arm Inside Hinge Pin
14. Front Lower Arm
15. Front Lower Arm Outside Hinge Pin
16. E-clip (2mm)
17. Front Dogbone
18. Front Wheel Shaft
19. Ball Bearing 5*10*4
20. Front Upright
21. Steering Hub Bush
22. Steering Hub Bolt
23. Ball Stud Screw 4.8
24. Steering Hub
25. Wheel Hex. Pin 2*10
26. Wheel Hex.
27. Front Rim
28. Front Tyre
29. Flange Lock Nut M4
30. Front Upper Arm Inside Hinge Pin
31. Front Upper Arm Assembly-1
32. Front Upper Arm Linkage Bar
33. Front Upper Arm Assembly-2
34. Front Upright Bush
35. Front Upper Suspension Mount
36. Centre Outdrive
37. Front Brace
38. Centre Front Dogbone
39. Centre Diff. Complete
40. Centre Rear Dogbone
41. Rear Brace
42. Engine /Exhaust Complete
43. Fuel Tank
44. Fuel Tank Post
45.Front Steering Top Plate
46.Rear Lower Suspension Arm
Holder-Inside
47.Rear Brace Mount
48. Rear Upper Arm Assembly -1
49. Rear Upper Arm Linkage Bar
50. Rear Upper Arm Assembly-2
51A. Steering Assembly
51B. Front Turning Linkage Set
51C. Steering Post Bush
52. Servo linkage Set
53. Steering Servo
54. Exhaust Pipe Retainer Bar
55.Exhaust Pipe Retainer
56.Speed Testing Metre Plate
57. Speed Testing Metre Plate Mount
58. Chassis Side Plate A
59. Chassis
60.Chassis Side Plate B
61. Throttle Servo
62. Battery/receiver Box
63. Battery/receiver Box Mount-1
64. Battery/receiver Box Mount-2
65. Battery/receiver Box Mount-3
66. Rear Wheel Shaft
67. Rear Upright
68. Rear Rim
69. Rear Tyre
70. Rear Lower Suspension Arm Mount
(Outside)
71. Rear Body Post
72. Rear Lower Suspension Arm Outside
Hinge Pin
73. Rear Lower Suspension Arm
21
74. Rear Shock Tower
75.Rear Shock Set
76. Rear Bumper
77. Wing Stay
78. Wing Post
79. Wing Mount
80. Wing Stay Retainer
81. Wing
Screws Required:
(S-1) Round Head Self Tapping Screw 3*12
(S-2) Round Head Screw 2.5*14
(S-3) Round Head Self Tapping Screw 3*10
(S-4) Round Head Self Tapping Screw 2.6*8
(S-5) Round Head Self Tapping Screw 3*15
(S-6) Countersunk Self Tapping Screw 3*37
(S-7) Countersunk Self Tapping Screw 3*12
(S-8) Round Head Screw 3*8
(S-9) Round Head Self Tapping Screw 3*8
(S-10) Grub Screw 3*3-2*7
(S-11) Round Head Self Tapping 3*37
(S-12) Cap Head Hex. Screw 3*37
(S-13) Round Head Screw 2.5*12
(S-14) Countersunk Screw 3*8
(S-15) Countersunk Self Tapping Screw3*10
(S-16) Countersunk Self Tapping Screw 2.3*7
(S-17) Grub Screw 3*3
(S-18) Cap Head Hex. Screw 3*12
(S-19) Countersunk Self Tapping Screw 2.6*8
S-1
S-2
S-2
S-3
S-4
S-3
S-3
S-5
S-5
S-1
S-1
S-2
S-2
S-6
S-6
S-7
S-1
S-1
S-8
S-4
S-8
S-9
S-9
S-1
S-1
S-10
S-10
S-11
S-11
S-1
S-9
S-9
S-9
S-9
S-2
S-2
S-9
S-12
S-5
S-7
S-7
S-7
S-3
S-1
S-1
S-3
S-1
S-3
S-3
S-3
S-1
S-7
S-14
S-15
S-15
S-7
S-18
S-17
S-16
S-16
S-16
S-16
S-16
S-16
S-19
S-15
S-7
S-7

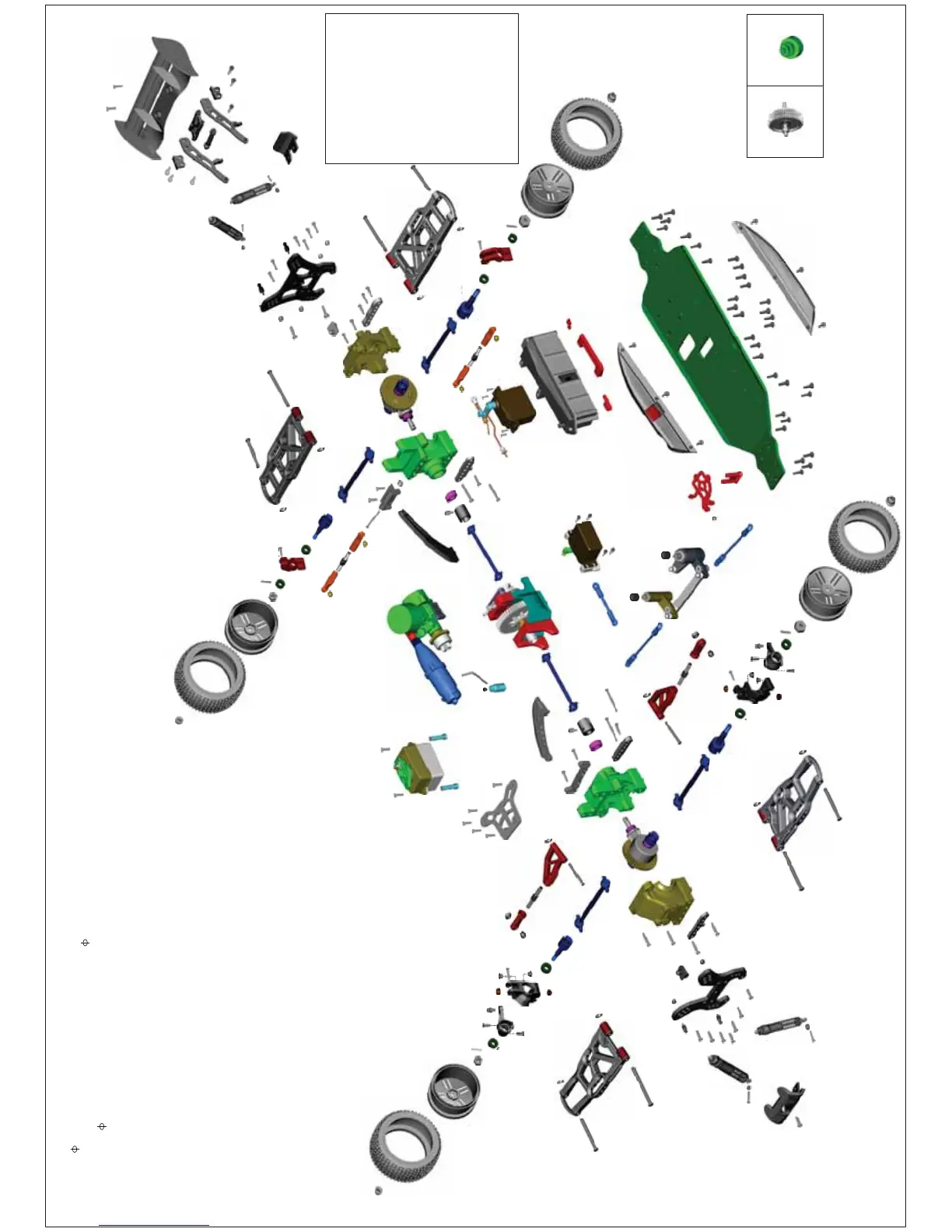

Exploded View
1/10th scale fuel powered off road buggy
(Item No.: 3378)
Two speed gears
complete
Clutch Bell(Twin gears)
3378-T10 3378-T11
The following are the spare parts for
upgrading your buggy to two speed
buggy.
