HDE DigiVolt DVM-80UVM - Add-On Resistor Stick; Hot Stick; Hot Stick Adapter

10
PROBES AND ACCESSORIES continued

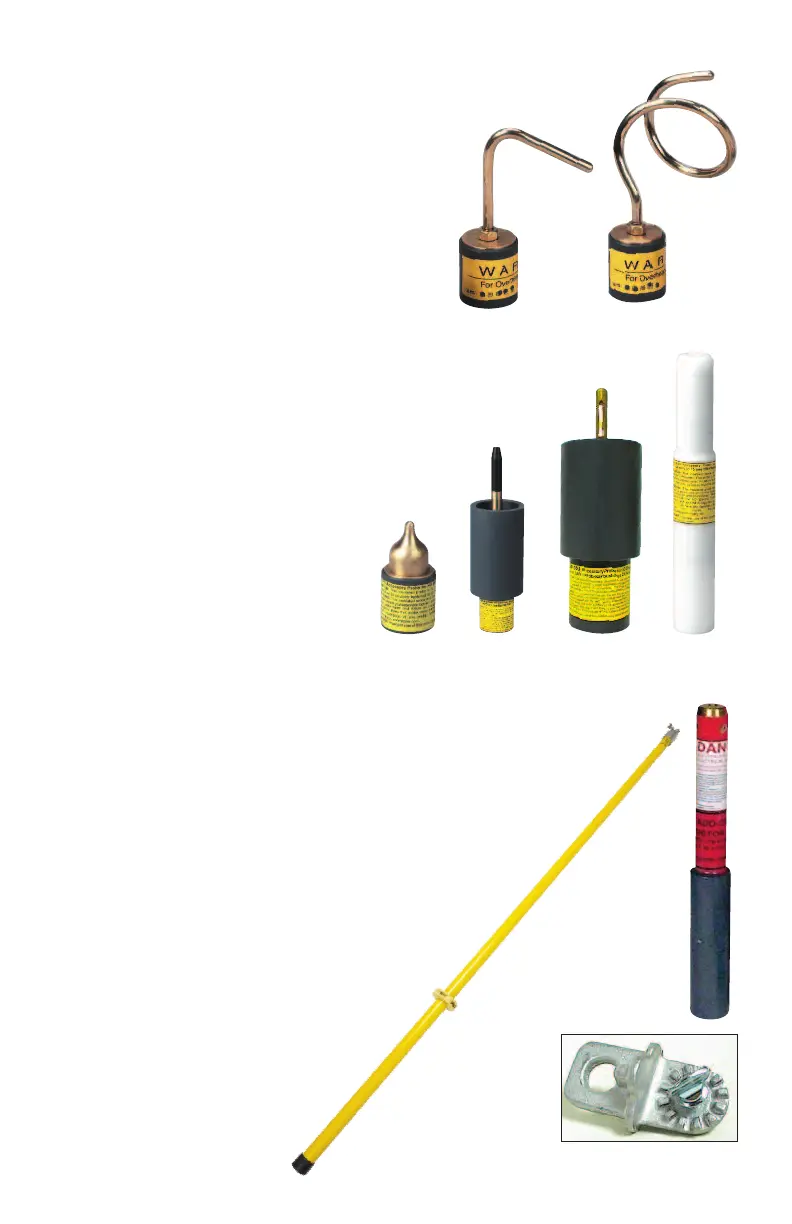

OVERHEAD PROBES
• 025-OLPS-5 brass hook probe
• 025-OLPS-6 brass pigtail probe
UNDERGROUND
DEAD FRONT
BUSHING PROBES
• ASP-15/25 for use in 15kV and 25kV
loadbreak bushings
• ASP-35U for use in 35kV
loadbreak bushings
UNDERGROUND
ELBOW PROBE
EA-15/25 for insertion in loadbreak elbows
NOTE: The elbow must be firmly
supported when using this probe
INSULATED
UNDERGROUND
PROBE
GCP-1 for general underground use
on grounded terminals, exposed high
voltage terminals or elbow test points.
ADD-ON RESISTOR STICK
R-80 Resistor Sticks are used to take readings above 40kV. Always
completely remove the voltmeter from the live circuit before adding
or removing add-on resistor sticks. Always use the add-on
resistor sticks in pairs, one on each voltmeter stick, then
attach the appropriate overhead or underground probe
to be used. When a reading is displayed, multiply that
reading by two (for example, if the display reads 30kV
with add-on resistor sticks installed, multiply
30 times 2 = 60kV). Do not exceed 80kV
with the R-80 resistor sticks attached.
HOT STICK
A range of hot sticks are available
in lengths starting at 4’. Contact
HD Electric for more details.
HOT STICK ADAPTER
HSA-2500 shotgun
hot stick adapter
ASP-15/25 EA-15/25ASP-35U
025-OLPS-6025-OLPS-5
GCP-1
HSA-2500
R-80
Hot Stick
