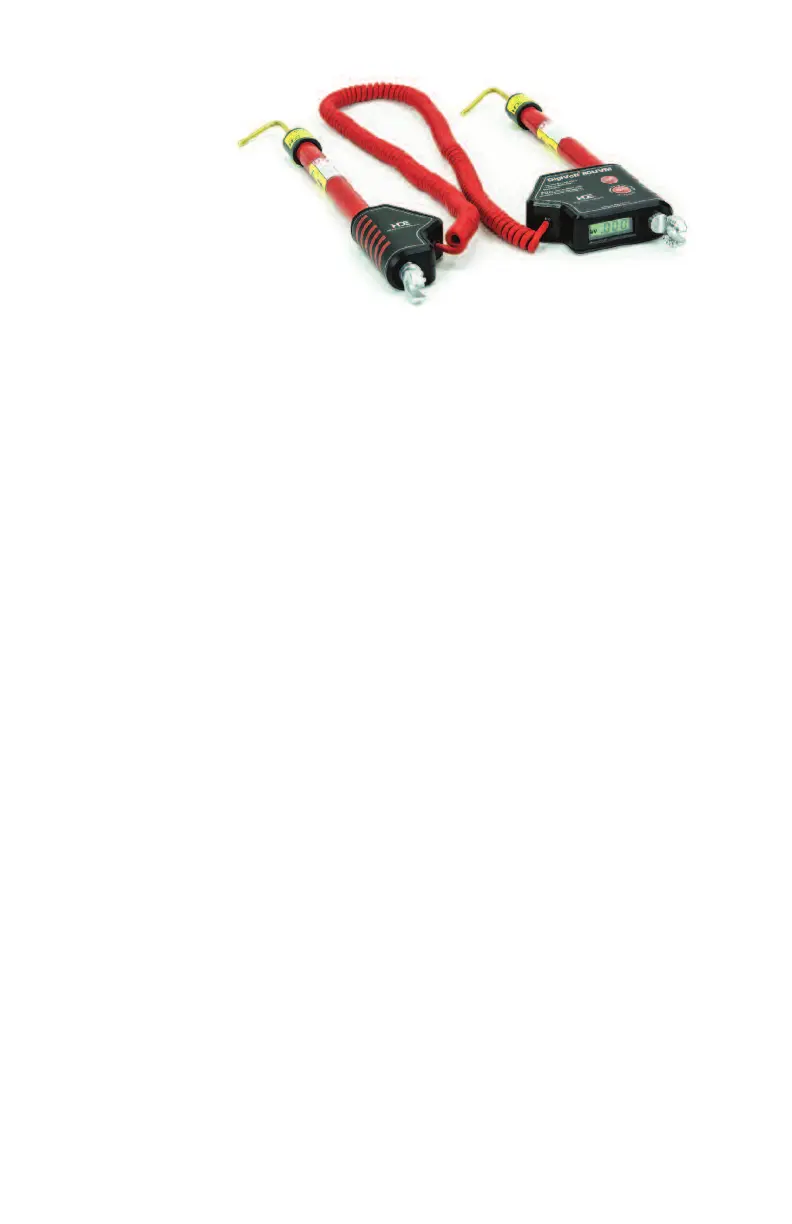

TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
• Conditions
-
Indoor and outdoor use
• Altitude
-
Up to 6,566 ft. (2000M)
• Operating -20°F to +140°F
Temperature
-
(-29°C to +60°C)
• Humidity
-
95% to +60°C
(non-condensing)
• Pollution Degree
-
PD4
• Measurement Category IV
-
Classification Rating (CAT IV) –
Product is intended for use with test
and measuring circuits connected to
the circuits/wiring outside of a building
installation, including transmission lines.
• Overvoltage Category IV
• Enclosure Material
-
PVC UL 94-V0, fiberglass
• Printed Circuit Boards
-
FR-4 UL94V-0
BATTERY REPLACEMENT
INSTRUCTIONS
To replace the battery, open and remove
the compartment on the rear of the
meter housing. Remove and dispose
of the old battery, replacing it with a
fresh, new 9-volt lithium or alkaline
battery. Note battery polarity on
the battery compartment. This
compartment cannot be reinserted
if the battery polarity is reversed.
MANUFACTURING LOCATION
HD Electric Company • Waukegan, IL. 60085, USA
DIMENSIONS:
• Length (w/o probes)
-
15.125” (38.4cm)
• Display Housing
-
5”W x 4.5”L x 1.38”H
(13cm x 11cm x 3.5cm)
• Diameter of Fiberglass
-
1” (2.54cm)
• Connecting Cord Length
-
12’ (3.6m) fully extended,
3.5’ (1.7m) retracted
• Weight
-
(w/o probes): 3.0 lbs. (1.36kg)
• LCD Numeral Height
-
0.4”, indicates 3.5 digits
• Battery Life
-
17 hours continuous use
• Battery
-
9V alkaline 1604A, IEC 6LR61
or 9V lithium, ANSI-1604LC.
• Digital Meter
-
Reads in kilovolts,
3.5 digits with decimal point
• Voltage Range
-
5V-40kV, up to 80kV
with add-on resistors, DC, AC 16-1000Hz
• Auto-Ranging
-
No range selector switch
• Accuracy
- Within 1% of reading +/- 3 counts
- With R-80 add-on resistors installed -
within 2% of reading +/- 3 counts
(line-to-ground & line-to-line measurements)
• Meter Resolution
0.005 - 1.899 range with 1 Volt resolution
1.90 - 18.99 range with 10 Volt resolution
19.0 - 40.0 range with 100 Volt resolution
