5
GENERAL DESCRIPTION
The DVM-80UVM is a high accuracy digital voltmeter and phasing set designed to measure
voltages up to 40kV and up to 80kV when used with a pair of add-on resistors. The
DVM-80UVM includes an elbow test point reading feature as well as a peak hold
feature. The DVM-80UVM can be purchased on its own or in a complete, ready-
to-use Universal Voltmeter Kit that contains the following probes and accessories:
DVM-80UVK UNIVERSAL VOLTMETER KIT
• Dual stick phasing voltmeter (DVM-80UVM)
• Two overhead hook probes (025-OLPS-5)
• Two resistor sticks for measurements up to 80kV (R-80)
• Two underground bushing probes, 15 and 25kV class (ASP-15/25)
• An underground cable fault tester, 15, 25 and 35kV class (CFT-35)
• Voltmeter proof tester (PT-5000B)
• Two shotgun hot stick adapters (HSA-2500)
• A soft-sided, multi-functional carrying bag (B-12)
See pages 9-14 for a complete list of probes and accessories available.
All HD Electric voltmeters and phasers are constructed with epoxy encapsulated high

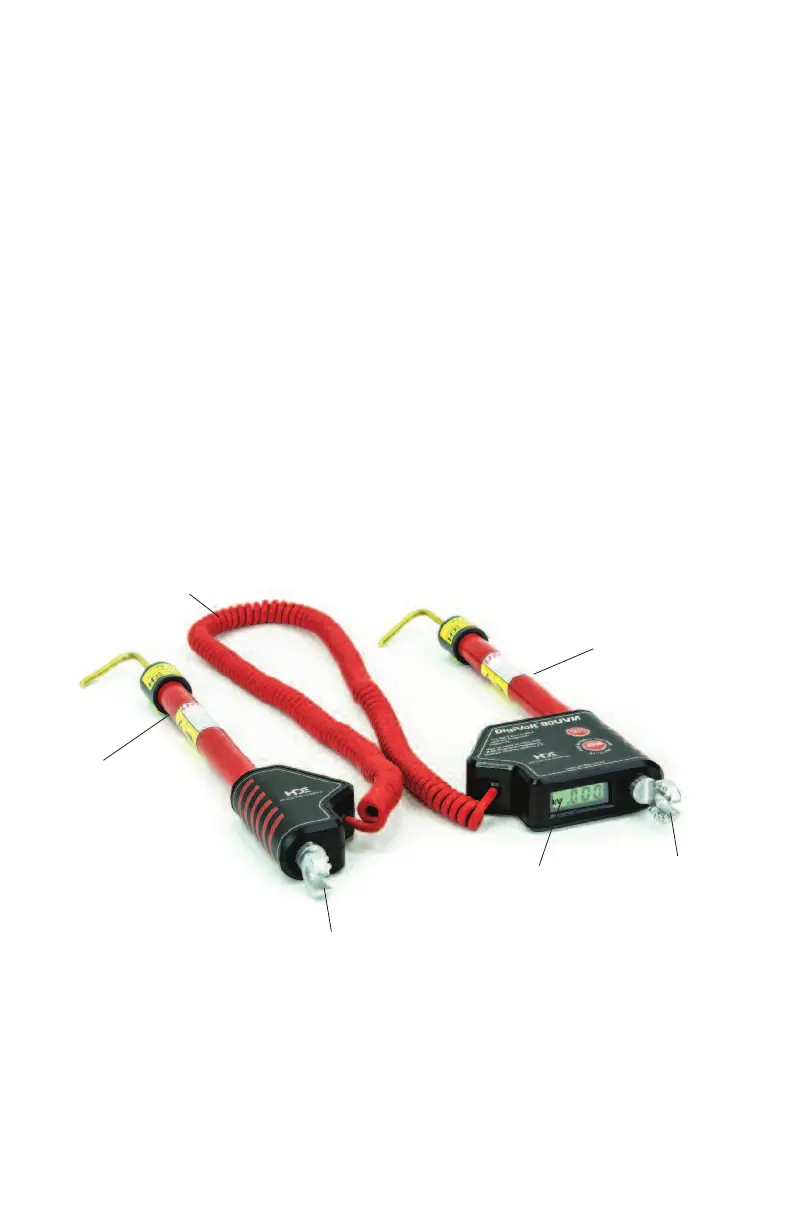

voltage resistors, a connecting cord and a meter display. The DVM-80UVM is a digital
meter. The major elements are shown here:
The high voltage resistors limit the current through the connecting cord to less than one
milliamp. Although the connecting cord is insulated for voltage up to 10kV, it should
always be kept free and clear from you, ground and any other conductors. These
instruments will measure DC and AC 16-1000Hz RMS.
WARNING: The DVM-80UVM will require add-on resistor sticks for higher voltage
ranges. Always completely remove the voltmeter from the live circuit before adding
or removing add-on resistor sticks. Always use add-on resistor sticks in pairs, one on
each voltmeter stick.
Universal Spline
Resistor
Stick
Resistor Stick
Universal Spline
Connecting
Cord
LCD Screen
