Healtech QuickShifter easy - Wiring Connections; Coil Wiring and Splice; Second Coil and Battery Connection

QuickShifter easy
Supplementary Manual
Honda CB1000R ABS 2008- (iQSE-W1 + QSH-P2T)
www.healtech-electronics.com 2/3

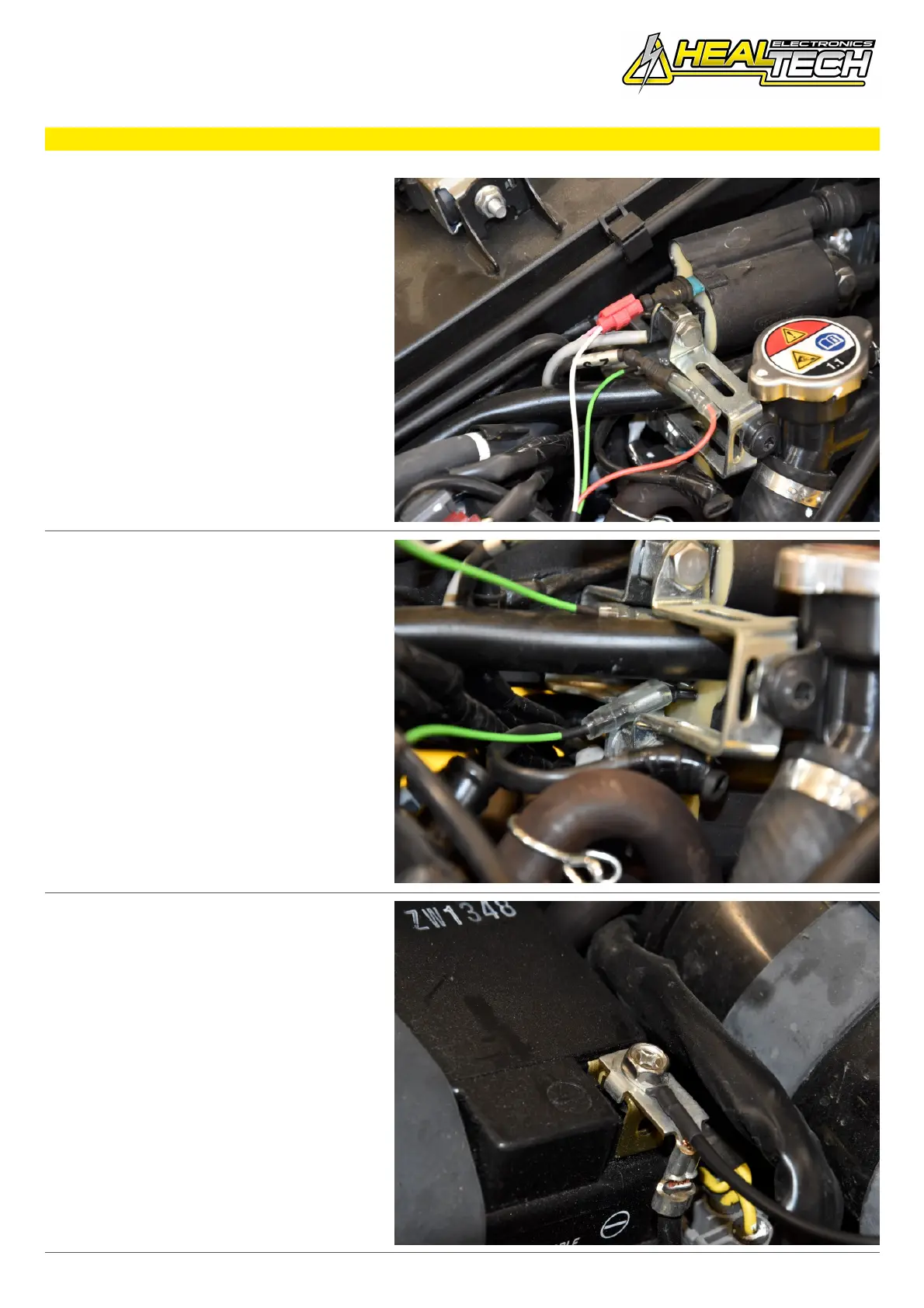

Take off the Black/White terminal from
the coil.

Connect the Black/White terminal to the
QSH Red wire terminal.

Connect the QSH Green terminal to this
coil terminal.

Splice the QSH White wire to the Pink
wire of the coil by using the supplied red
wire tap connector.
Take off the Black/White terminal from
the other ignition coil.

Connect the QSH Green terminal to the
empty ignition coil terminal.

Isolate the unused Black/White terminal
with tape.
Connect the QSH Black wire terminal to
the battery negative terminal.
