HEART HR4136-B1 - Systems Architecture; HR4135 Gate Controller; HR4136-B CID R;W Controller; RS485 Communication Limits

HR4136-B1
HEART TECH ENTERPRISE CO., LTD. BEST SERVICE FROM HEART
8

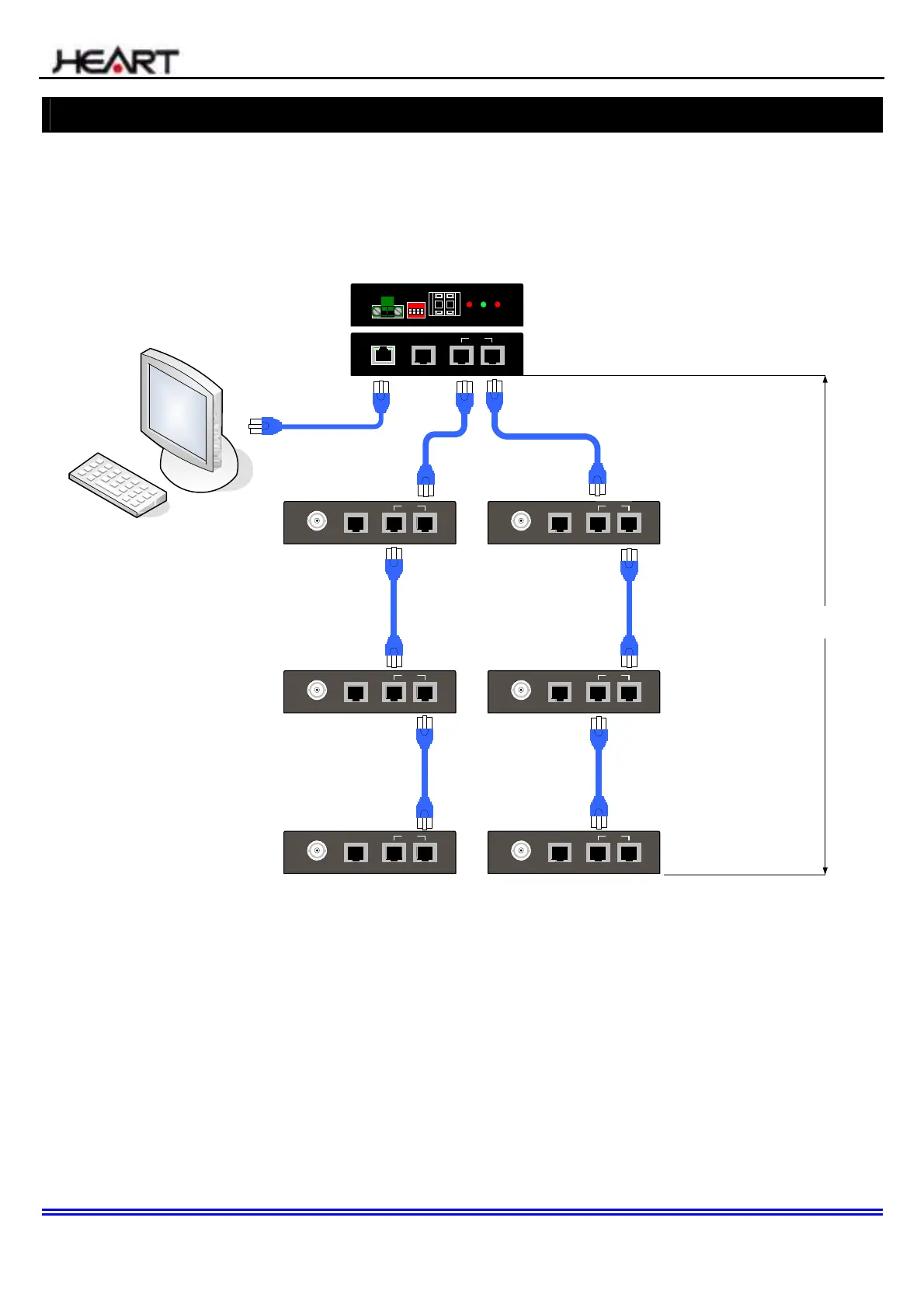

Systems Architecture:
RS232
RS485
Ethernet
10/100M
ADDRESSDC 10~24V
+
-
ST TX RX
FUNCTION
ON
1 2 3 4
0 0
ANT RS232 RS485ANT RS232 RS485
ANT RS232 RS485ANT RS232 RS485
ANT RS232 RS485ANT RS232 RS485
HR4136-B
CID R/W Controller
Max. 25 set.
HR4135 Gate Controller
HR4136-B
CID R/W Controller
Max. 25 set.
Total 1000m Max.
1. Each HR4135 gate controller has two RS485 communication ports. Each RS485 communications
port Maximum connections of 32 sets HR4136-B1 CIDRW controller. Recommended maximum
number of connections each RS485 communications port is not over 25 sets HR4136-B1 CIDRW
controller.
2. RS485 maximum connection distance: from HRP485 Repeater to last one HR4136-B1 CIDRW
Controller total 1000 m.
