APPROVED VENTING CONFIGURATION FOR HORIZONTAL TERMINATION,

(1) 90º ELBOW

• The termination must fall within the area outlined by the shaded area shown in the

illustration below.

• A minimum of a 9” rise is required directly off the heater.

• Use a vinyl siding standoff when installing against vinyl siding.

• Horizontal sections require a ¼” rise every 12” of horizontal run.

NOTES:

1. The vent must terminate within one of the regions outlined by the shaded area.

2. For each 90º elbow after 2, remove 5’ from horizontal run.

3. For Canadian installations: remove 4’ from horizontal run.

4. At minimum vertical rise, maximum horizontal run 14”.

5. Use with snorkel termination 14” maximum horizontal run.

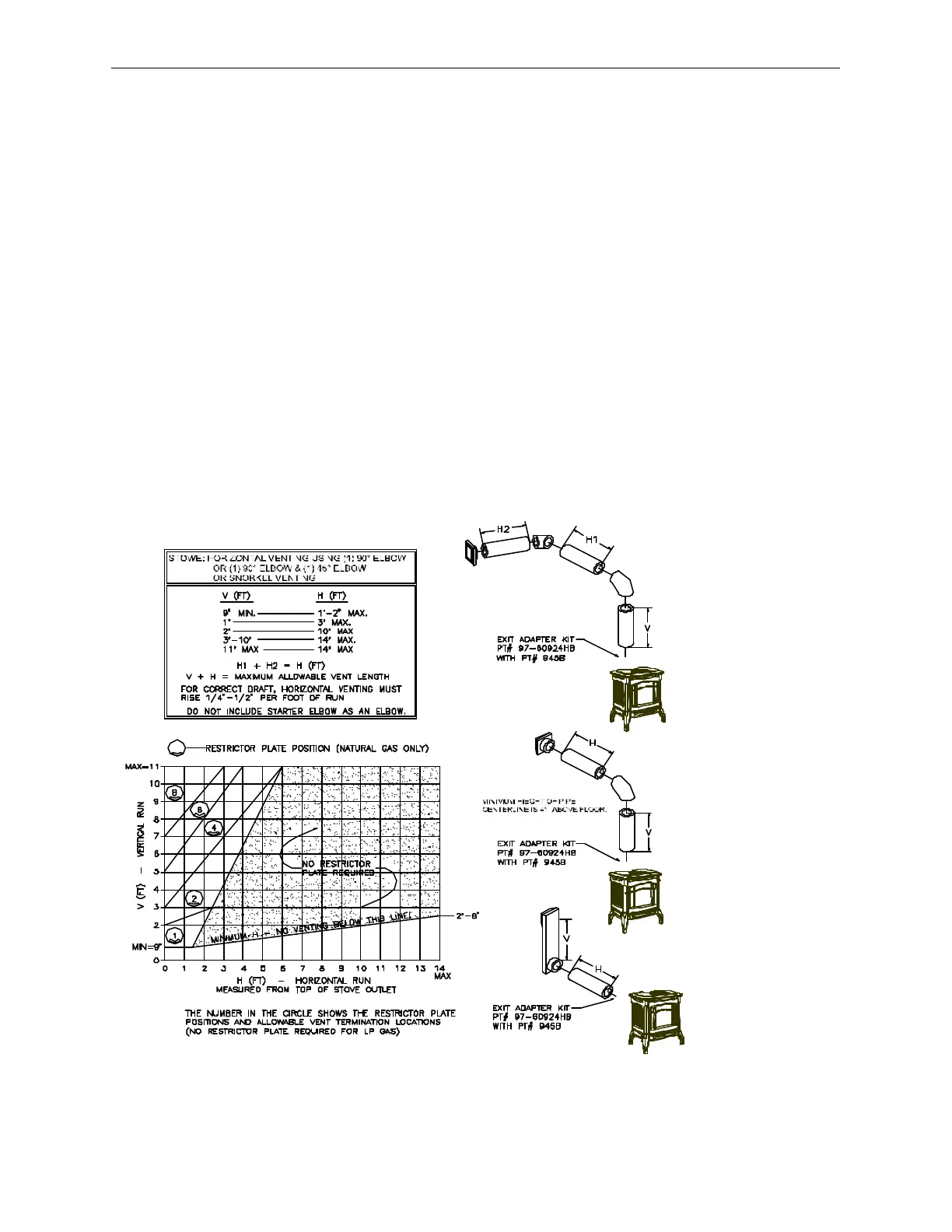

FIGURE 14 HORIZONTAL TERMINATION
