HearthStone 8321 - Fireplace Installation Venting Configuration

HearthStone Quality Home Heating Products Inc Stowe Model #8321
02044-1
19
APPROVED CONFIGURATION FOR FIREPLACE INSTALLATION
• The termination must fall within the demarcation line shown in the illustration. Use the
indicated restriction plate position. Restriction plate # 5950-922.

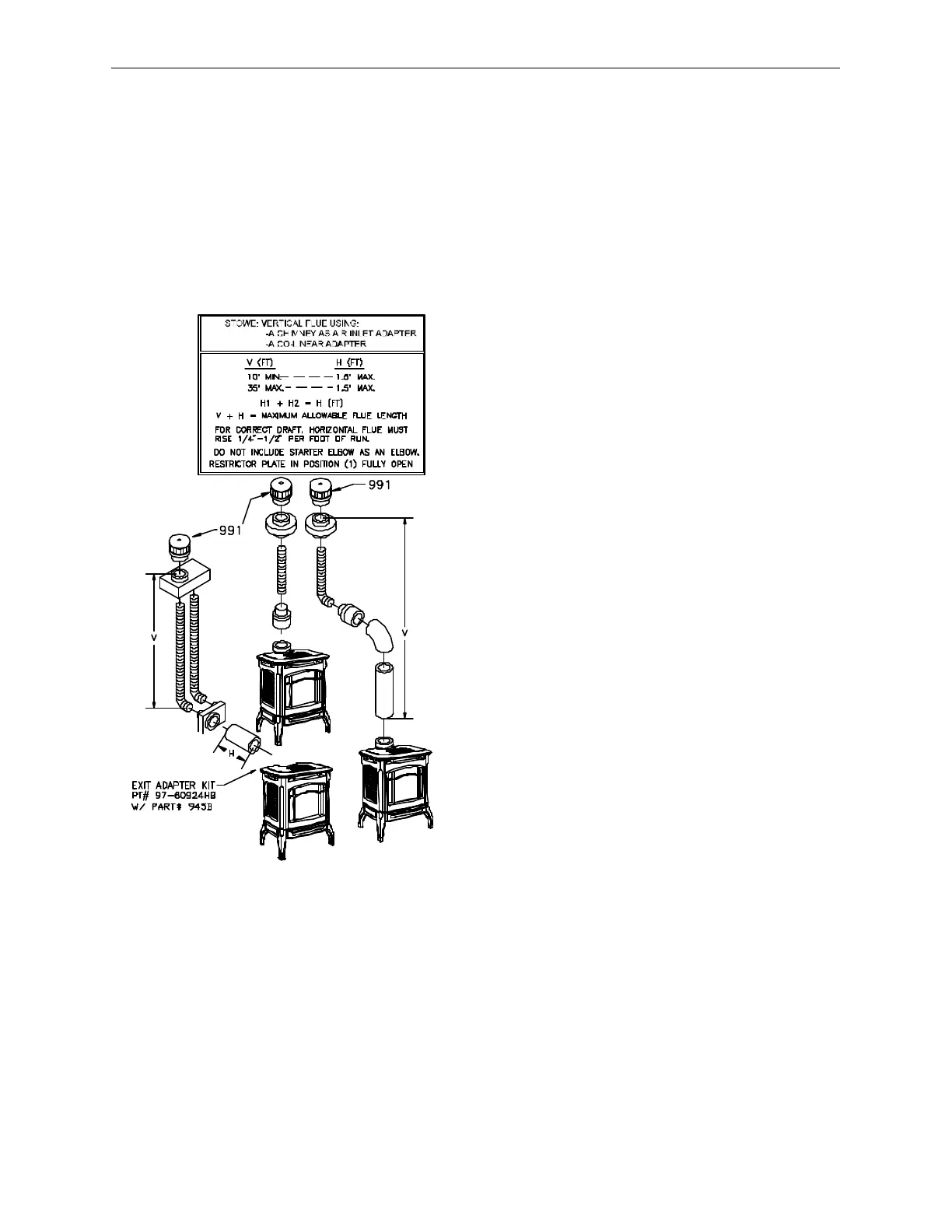

FIGURE 15. CO-LINEAR & CHIMNEY AS AN AIR INLET
