Heat & Glo Curve 100S-HS - Curve 100 Series Parts Identification

Curve Series
2/11/2014     Heat&Glo•7076-108      17
Service Parts
CURVE-100G-HS
Beginning Manufacturing Date: June 2013
Ending Manufacturing Date: Active
Wood Stove
IMPORTANT:THISISDATEDINFORMATION.Partsmustbeorderedfromadealerordistributor. Hearth and Home Technologies does
not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.

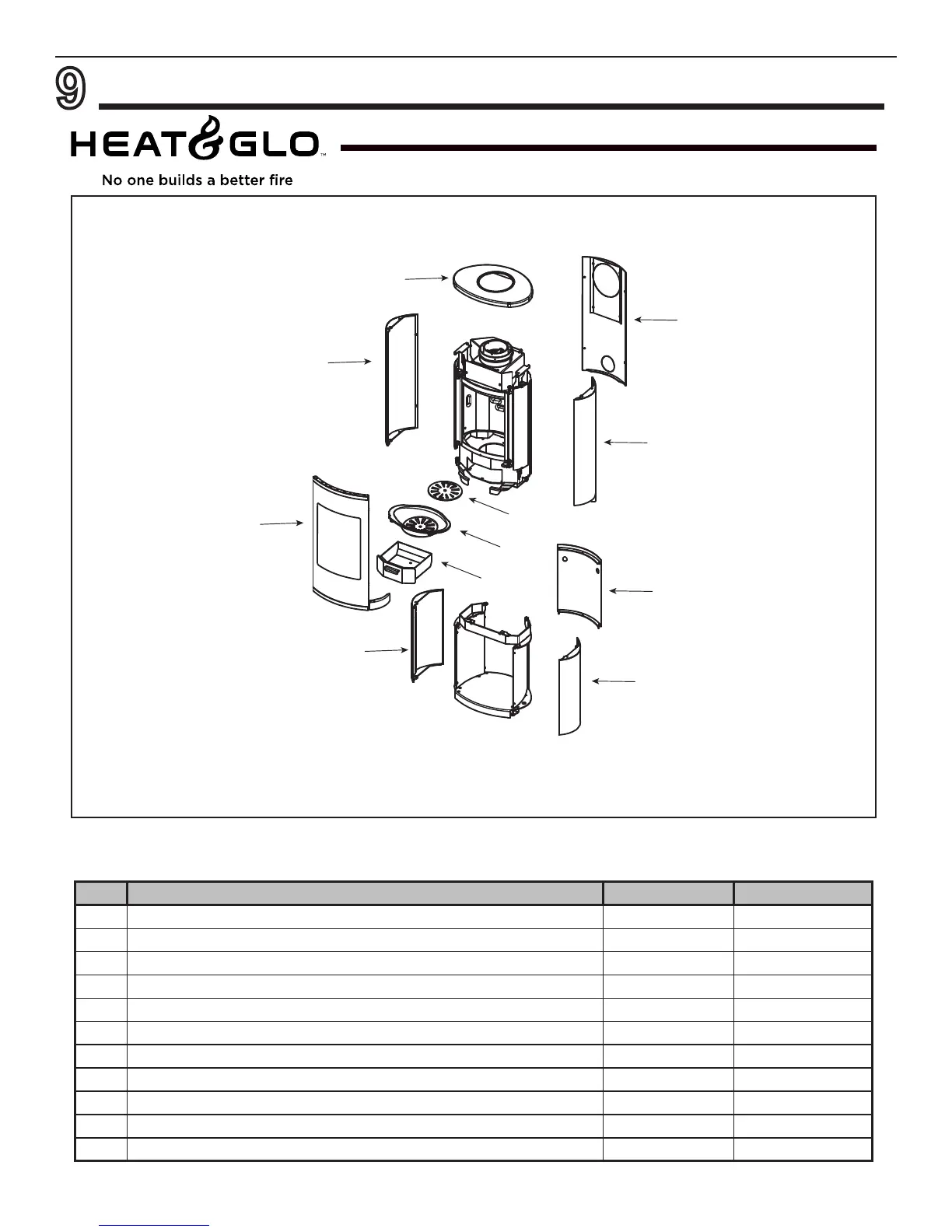

ITEM DESCRIPTION COMMENTS PART NUMBER
1
Top MG10-091
2
Side Panel, Left MG06-021
3
DoorAssembly MG10-161
4
SidePanelPedestal,Left MG10-051
5
SidePanelPedestal,Right MG10-061
6
RearPedestalPlate MG10-211
7
Side Panel, Right MG10-031
8
Back Panel MG06-111
9
FirepotPlate MG06-331
10
CastFirepot 7G06-201
11
Ashpan MG06-121
2/14
8
7
6
5
4
3
2
1
11
10
9
9
Service Parts List
