28
Installation
The Smart Controller should be installed in a
location where the large Liquid Crystal Display
(LCD) can be viewed easily, yet is secure and
vibration free. Because of the LCD screen,
the Smart Controller II should not be mounted
where it will experience temperatures below 40
ºF or above 100 ºF.
Installation

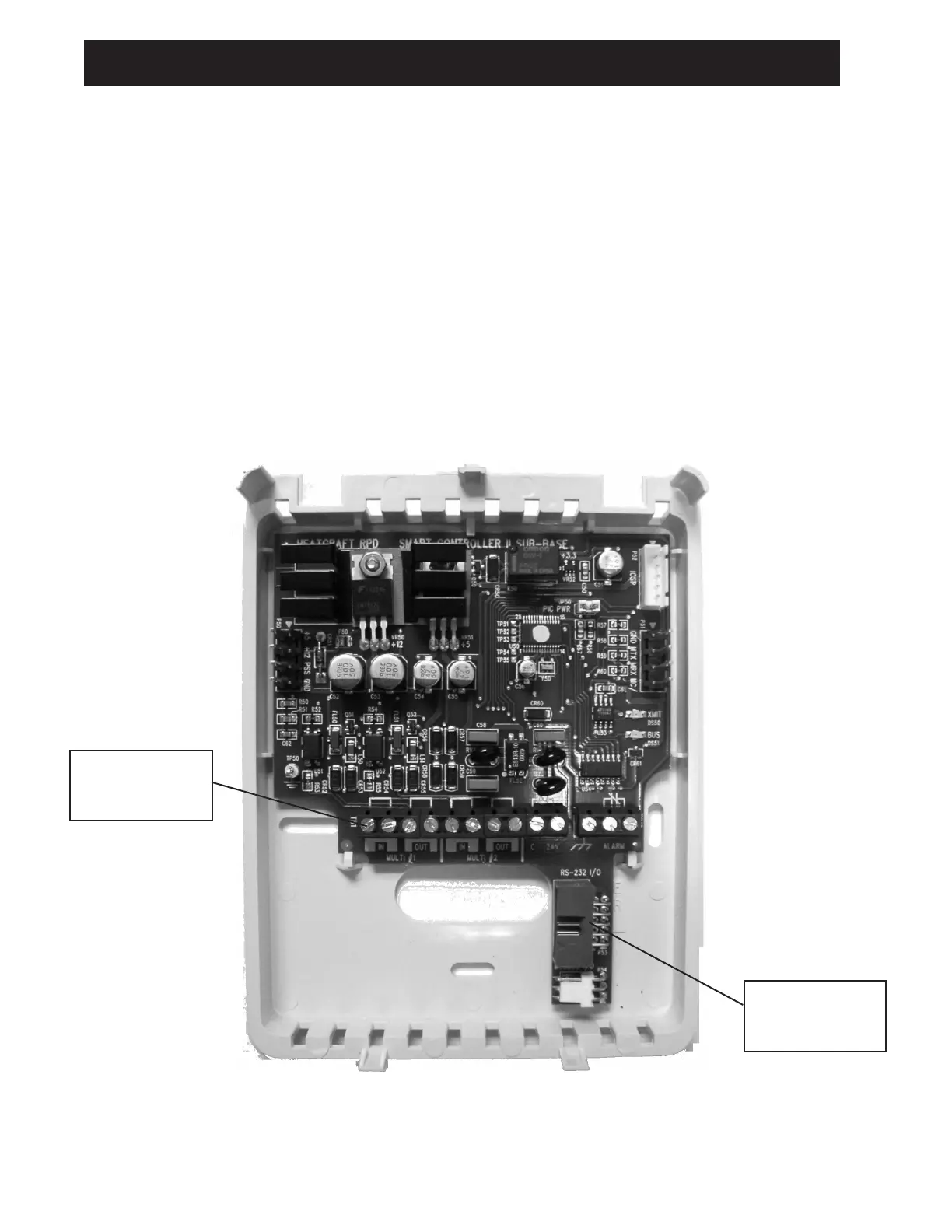

Beacon II Smart Controller Base
A terminal strip for wiring connections is located
on the base of the Smart Controller. To access
this terminal strip, pull both halves of the Smart
Controller housing apart. Mounting holes are
located in the plastic base.
Terminal
Strip
RS232
Connector
