6
6
Model
Part #
115V SP
(2) Req’d
230V SP
(2) Req’d
115V PSC
(2) Req’d
230V PSC
(2) Req’d
460V PSC
(2) Req’d
115V EC
(2) Req’d
230V EC
(2) Req’d
LFA*070 25300101 25300201 25302601 25302501 – 25317801 25317701
LFA*087 25300101 25300201 25302601 25302501 – 25317801 25317701
LFA*120 25300101 25300201 25302601 25302501 – 25317801 25317701
LFA*135 25300101 25300201 25302601 25302501 – 25317801 25317701
LFA*150 25300101 25300201 25302601 25302501 – 25317801 25317701
LFA*170 25300101 25300201 25302601 25302501 – 25317801 25317701
LFA*190 – – 2530688 2530689 25305001 25317601 25317501
LFA*230 – – 2530688 2530689 25305001 25317601 25317501
LFA*270 – – 2530688 2530689 25305001 25317601 25317501
Model
Fan Blade
(2) Req’d
Motor
Mount
(2) Req’d
Drain Pan
Defrost
Heater
(2) Req’d
Filters
LFA*070 22900601 2316597 4040170 2470063 89900801
LFA*087 22900601 2316597 4040170 2470063 89900801
LFA*120 22900601 2316597 4040171 2470135 89900801
LFA*135 22900601 2316597 4040171 2470135 89900801
LFA*150 22900701 2316598 4040171 2470135 89900802
LFA*170 22900701 2316598 4040171 2470135 89900802
LFA*190 2291240 4000111 4040172 2470150 89900802
LFA*230 2291240 4000111 4040174 2470200 89900802
LFA*270 2291624 4000112 4040173 2470200 89900803
Right source� Right parts� Right now�
InterLink™ is your link to a complete line of dependable and
certified commercial refrigeration parts, accessories and
innovative electronic controls for all Larkin equipment� At
InterLink, we provide our wholesalers with a comprehensive
selection of product solutions and innovative technologies
for the installed customer base� And every product is built to
ensure the same high performance standards with which all
Heatcraft Refrigeration Products (HRP) brands are built —
backed by a dedicated team to serve every customer need,
delivering at the best lead times in the industry�
Dependable� Versatile� Courteous�
Finally, one simple source for all your replacement needs
from a name you can trust�
For parts, please contact (800) 686-7278 or
visit www�heatcraftrpd�com�
Replacement Parts
Commercial Refrigeration Parts
Part # Description
4267W
LFAH Defrost Termination / Fan Delay Thermostat
22592801 Terminal Strip
28906601 Defrost Termination / Fan Delay Thermostat
2697490 Drain Fitting: Adapter
269151011 Drain Fitting: Locknut
5469 Drain Fitting: Washer
26914901 Drain Fitting
Model
Dimensions
A B C D E F G
in. mm in. mm in. mm in. mm in. mm in. mm in. mm
LFA*070 83 2108 49 1245 17 432 14 356 22 559 19-1/2 495 23-1/4 591
LFA*087 83 2108 49 1245 17 432 14 356 22 559 19-1/2 495 23-1/4 591
LFA*120 111 2819 38-1/2 978 17 432 14-1/2 368 22 559 19-1/2 495 23-1/4 591
LFA*135 111 2819 38-1/2 978 17 432 14-1/2 368 22 559 19-1/2 495 23-1/4 591
LFA*150 114 2896 38-1/2 978 18-1/2 470 16 406 22 559 19-1/2 495 23-1/4 591
LFA*170 114 2896 38-1/2 978 18-1/2 470 16 406 22 559 19-1/2 495 23-1/4 591
LFA*190 134 3404 48-1/2 1232 18-1/2 470 16-1/2 419 22 559 19-1/2 495 23-1/4 591
LFA*230 153 3886 58 1473 18-1/2 470 16-1/2 419 22 559 19-1/2 495 23-1/4 591
LFA*270 158 4013 58 1473 21 533 20 508 27 689 24-1/2 622 28-1/4 718

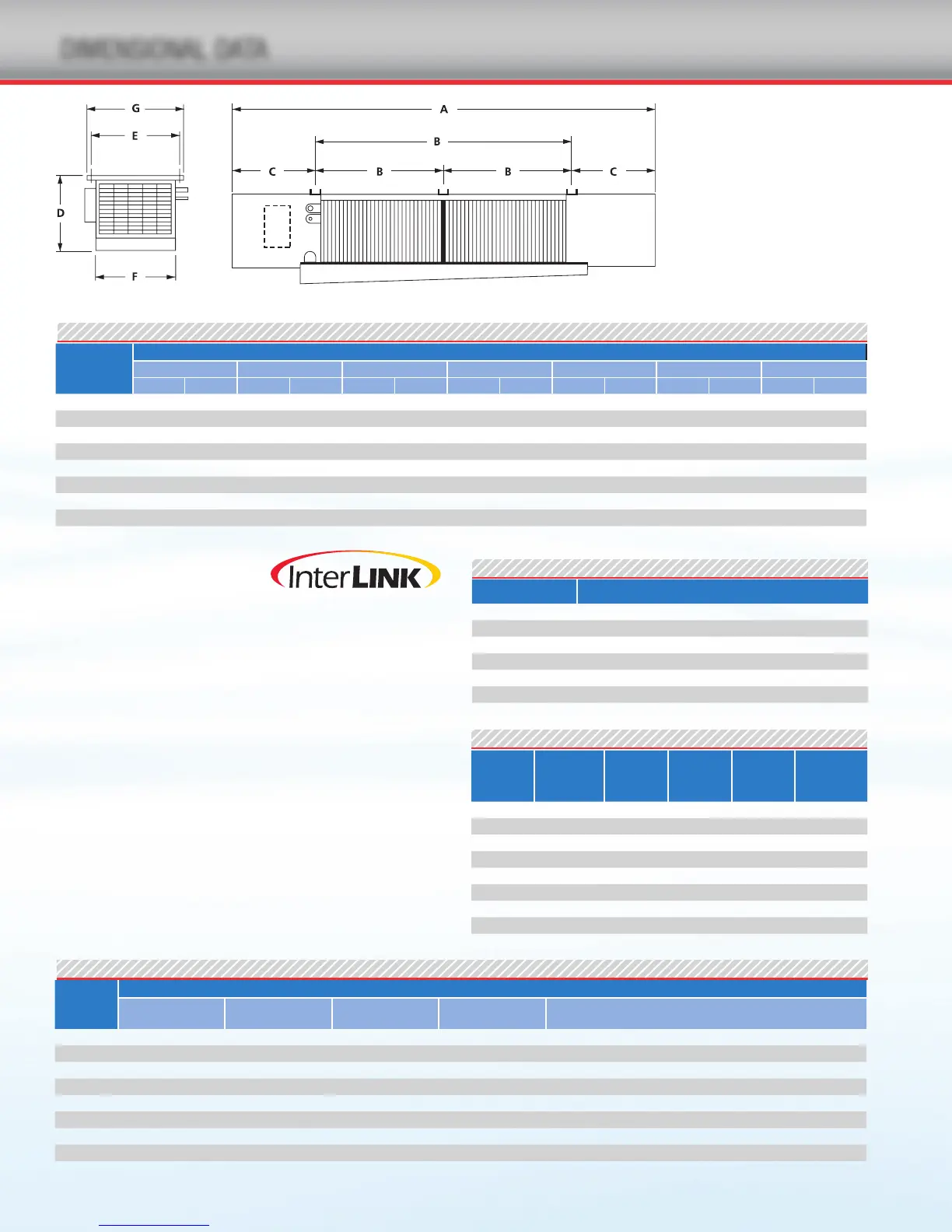

DIMENSIONAL DATA
LFA = Air Defrost
LFAE = Electric Defrost
LFAH = Hot Gas Defrost
Motors
Dimensional Data For All Models
