Page
20
;
(GeguestrHxir:
ve
<=>

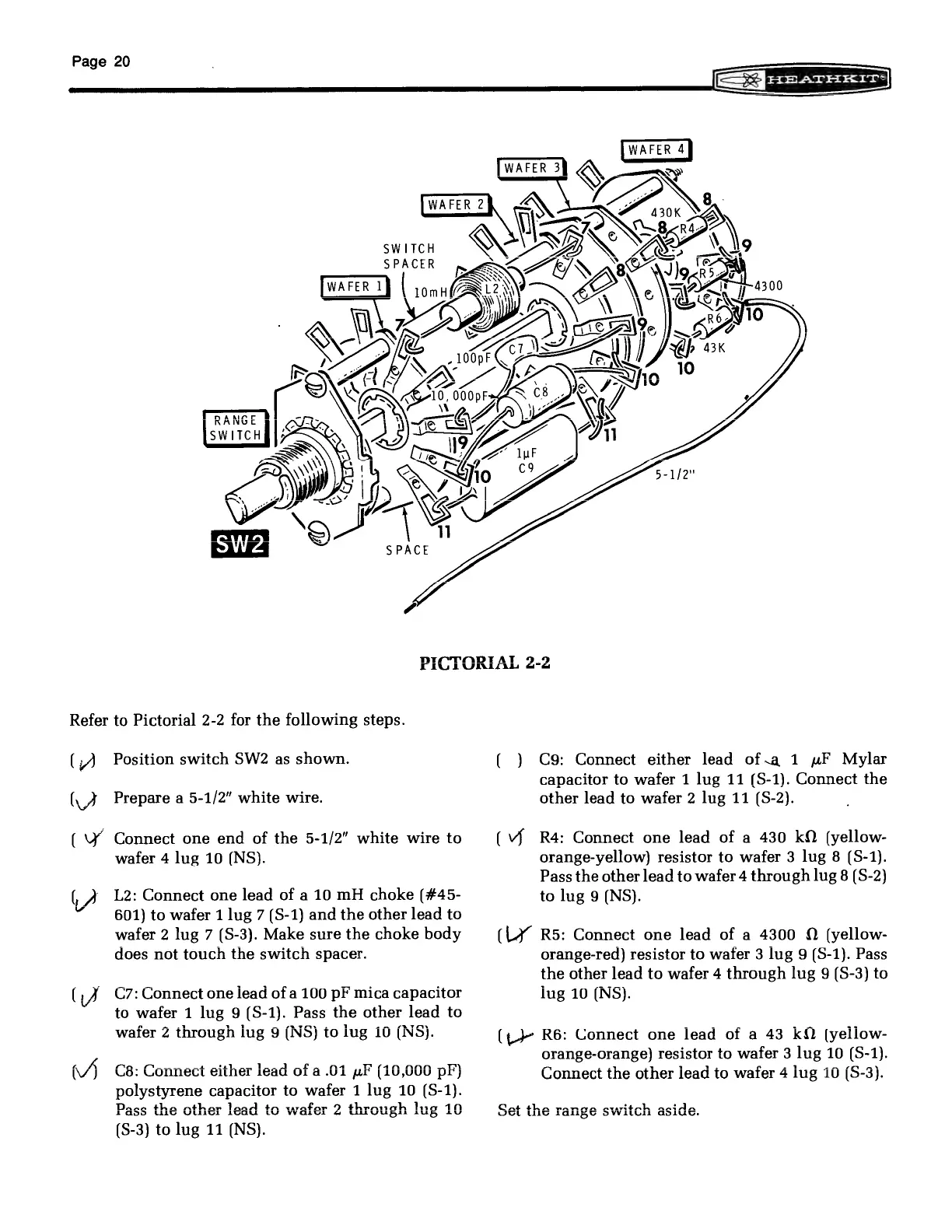

Refer
to
Pictorial
2-2
for
the
following
steps.
(A)
Position
switch
SW2
as
shown.
(J
Prepare
a
5-1/2"
white
wire.
(
Y
Connect
one
end
of
the
5-1/2”
white
wire
to
wafer
4
lug
10
(NS).
(,
8
L2:
Connect
one
lead
of
a
10
mH
choke
(#45-
“
601)
to
wafer
1
lug
7
(S-1)
and
the
other
lead
to
wafer
2
lug
7
(S-3).
Make
sure
the
choke
body
does
not
touch
the
switch
spacer.
(
vd
C7:
Connect
one
lead
of
a
100
pF
mica
capacitor
to
wafer
1
lug
9
(S-1).
Pass
the
other
lead
to
Pe
eran’
eRTOY
wafer
Z
through
iug
9
(NS)
to
iug
i0
(NS).
4
C8:
Connect
either
lead
of
a
.01
wF
(10,000
pF)
polystyrene
capacitor
to
wafer
1
lug
10
(S-1).
Pass
the
other
lead
to
wafer
2
through
lug
10
nS
at
logs
|
ve
es
Wwe
@
WW
aly
7
WY
0656
Saks
6
EK
inf
OSE
DY,
ry
Og
yk
A
pee
Me
is
Dh
eS
Te
43K
pp
(
)
C9;
Connect
either
lead
of~a
1
uF
Mylar
capacitor
to
wafer
1
lug
11
(S-1).
Connect
the
other
lead
to
wafer
2
lug
11
(S-2).
(
VW}
R4:
Connect
one
lead
of
a
430
kQ
(yellow-
orange-yellow)
resistor
to
wafer
3
lug
8
(S-1).
Pass
the
other
lead
to
wafer
4
through
lug
8
(S-2)
to
lug
9
(NS).
(L4”
R5:
Connect
one
lead
of
a
4300
2
(yellow-
orange-red)
resistor
to
wafer
3
lug
9
(S-1).
Pass
the
other
lead
to
wafer
4
through
lug
9
(S-3)
to
jug
10
(NS).
(y+
R6:
Connect
one
lead
of
a
43
kD)
(yellow-
orange-orange)
resistor
to
wafer
3
lug
10
(S-1).
Connect
the
other
iead
to
wafer
4
lug
10
(S-3).
