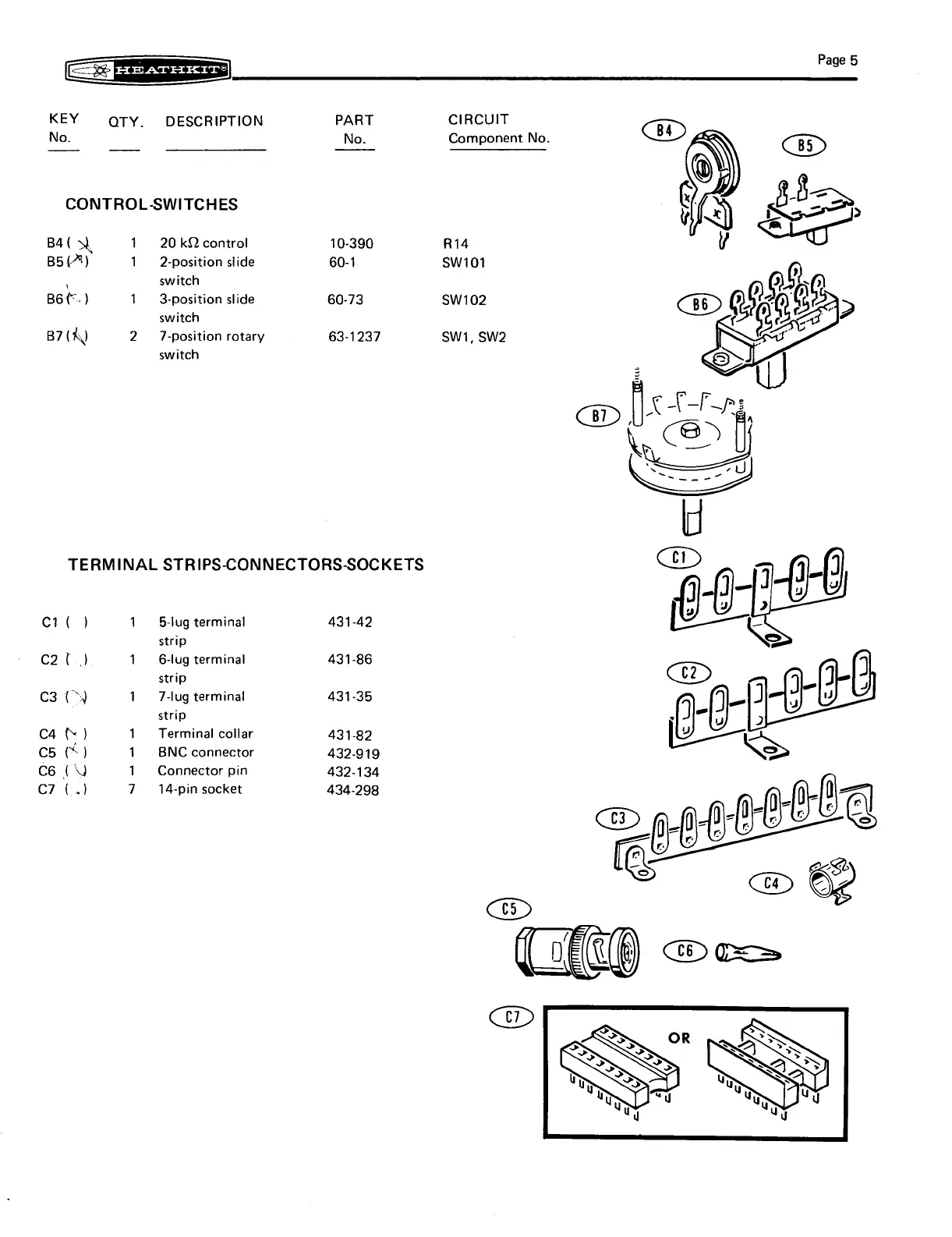

Page 5
KEY QTY. DESCRIPTION
No.
CONTROL-SWITCHES
B4 ( » 1 20k control
B5(*) 1 2-position slide
\ switch
B6et. ) 1 3-position slide
switch
B7 (K) 2 ~=7-position rotary
switch
TERMINAL STRIPS-CONNECTORS-SOCKETS
C1 ( ) 1 5-lug terminal
strip
c2 (.) 1 6-lug terminal
strip
C3 (>) 1 7-lug terminal
strip
C4 (\ ) 1 Terminal collar
c5 (é) 1 BNC connector
c6é (\ 1 Connector pin
C7 (.) 7 ~=-14-pin socket
PART
No.
10-390
60-1
60-73
63-1237
431-42
431-86
431-35
431-82
432-919
432-134
434-298
CIRCUIT
Component No.
R14
SW101
SW102
SW1, SW2
