PANEL ASSEMBLY
( ) Locate the short 6/32 screw and set aside to be used later.

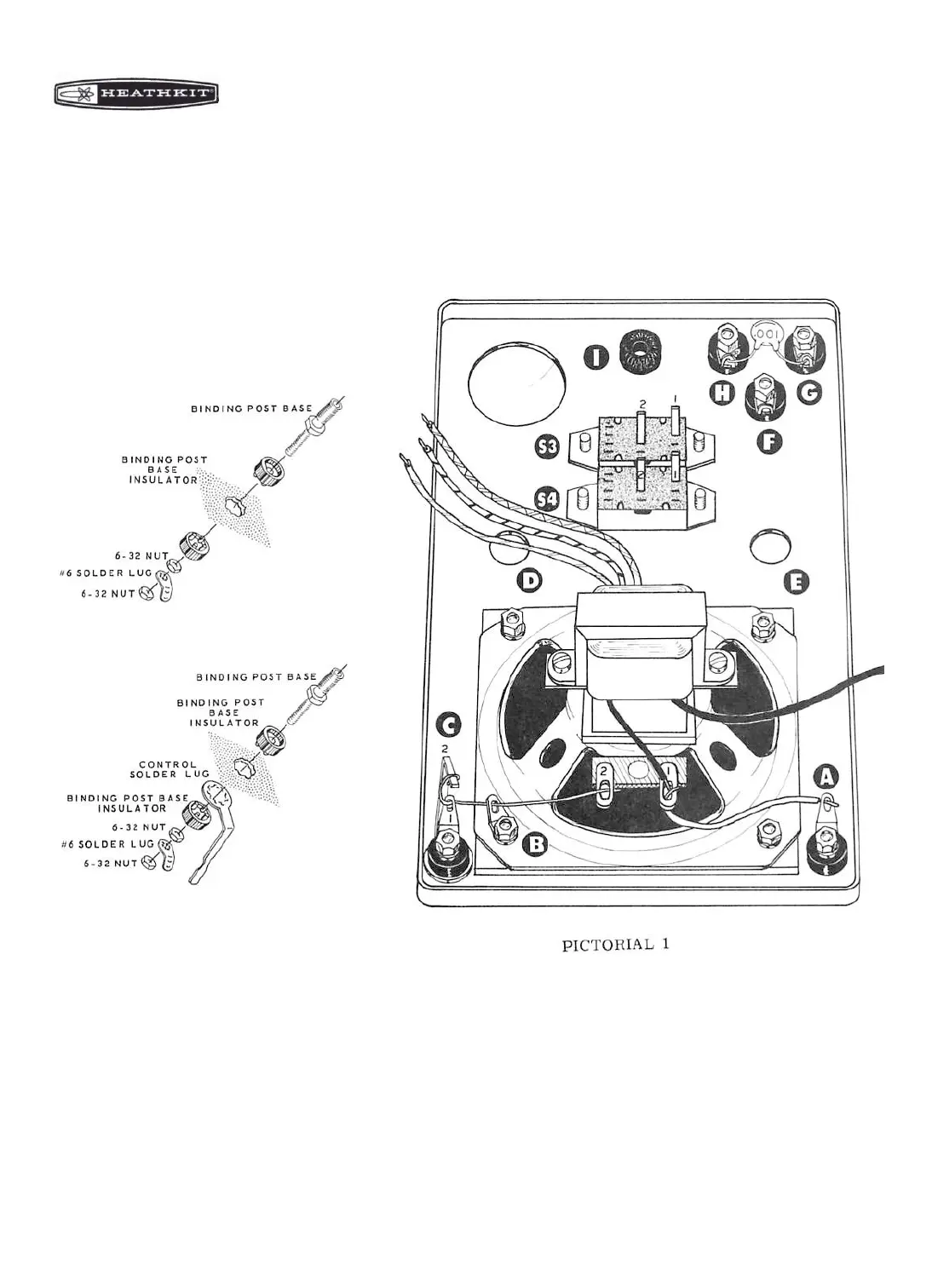

( ) Locate the front panel and position it as shown in Pictorial 1.
( ) Mount binding post A using a 6-32 nut. Position solder lug as shown in Pictorial 1.
( ) In like manner, mount binding post F, G and H.
( ) Mount binding post C with a control solder lug under the bushing. See Pictorial 1.
( ) Mount the speaker switch S4 as shown in Pictorial 1. Use 6-32 screws.
( ) In like manner, mount the noise switch S3.
( ) Insert the 3/8 grommet I.
( ) Connect one lead of a .001 ceramic disc condenser to terminal H (NS). Connect the other lead to terminal G (NS).
