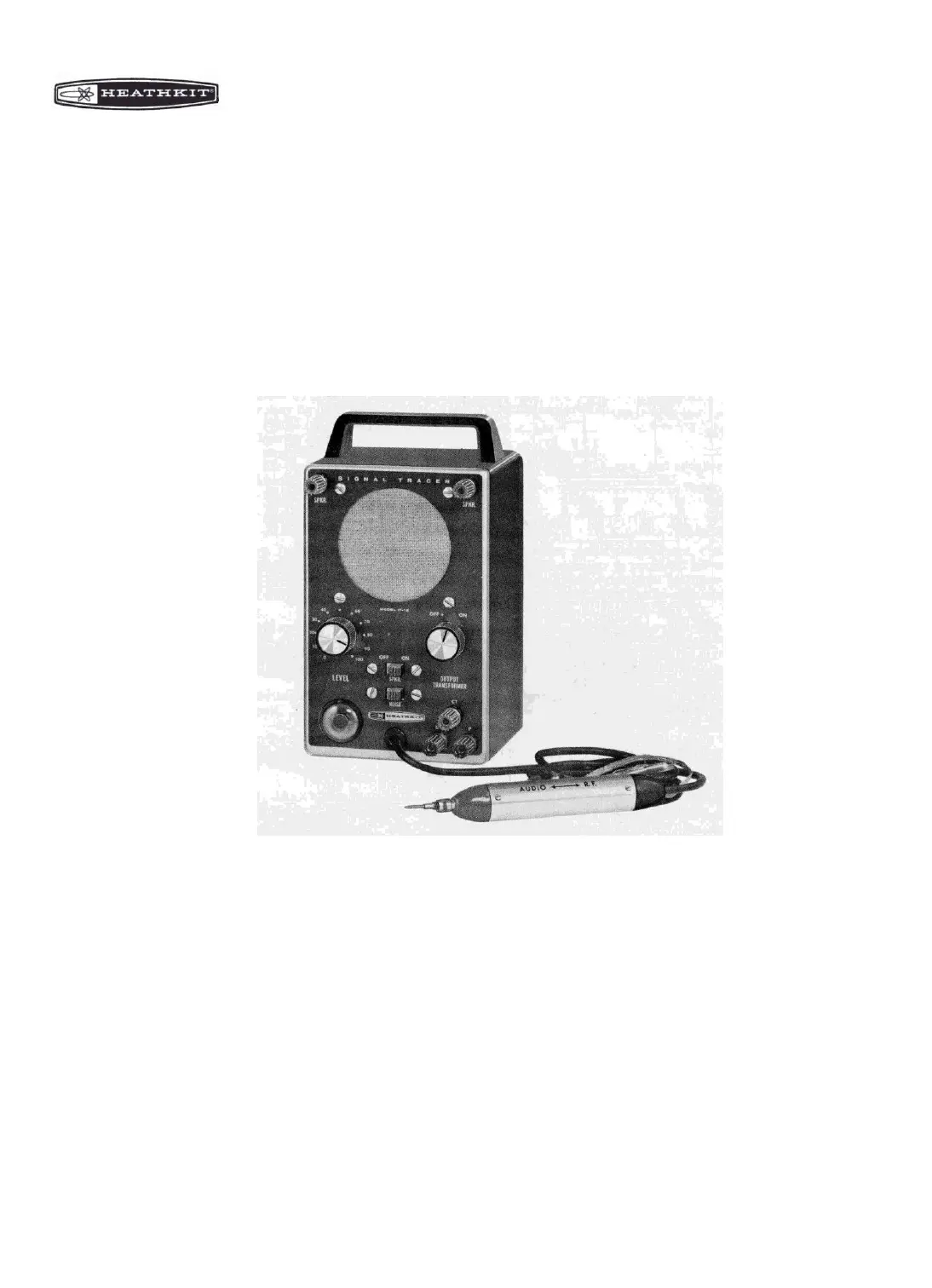

ASSEMBLY AND OPERATION OF THE
HEATHKIT VISUAL-AURAL SIGNAL TRACER
MODEL IT-12
SPECIFICATIONS
Power Supply…………………………………………
Transformer operated
Power Requirements
117 volts AC, 50-60 cps, 25 watts.
Tube Complement
VI - 12AX7 high gain dual triode, input cascade
amplifier.
V2 - 12CA5 beam power output tube.
V3 - 1629 electron beam visual indicator.
Speaker
3 1/2" permanent magnet.
Probe and Test Leads
4' input lead for RF and audio w/switch in probe body.
Two 3' panel test leads with alligator clips.
Dimensions
4 1/2" wide x 7 1/2" high x 4" deep.
Net Weight
4 Ibs.
