MULTIPOINT
5
3.0 INSTALLATION -
ELECTRICAL REQUIREMENTS
WARNING: This appliance must be earthed. It is suitable for a.c.
supply only. Disconnect the electrical supply before removing the
terminal cover. Installation must be in accordance with the current
I.E.E. Wiring Regulations.
3.1 The unit is supplied fitted with a 0.75m 3 core 1.5mm
2
flexible
cable on the 3kW model or a 0.75m 3 core 2.5mm
2
cable on the
4.5kW model. The electicity supply should be fused 13 Amp for a
3kW model and 20 Amp for a 4.5kW model and be via a double
pole isolating switch with a contact separation of at least 3mm in
both poles. Refer to the schematic wiring diagrams below.
3.2 The wires are colour coded as follows:
Green and Yellow EARTH ( )
Brown LIVE (L)
Blue NEUTRAL (N)
NEON
ELEMENT
('Stat/Cut-out plugs
directly onto element
terminations)
COMBINED
THERMOSTAT
AND THERMAL
CUT-OUT
RESET
BUTTON
EARTH
POST
N
L

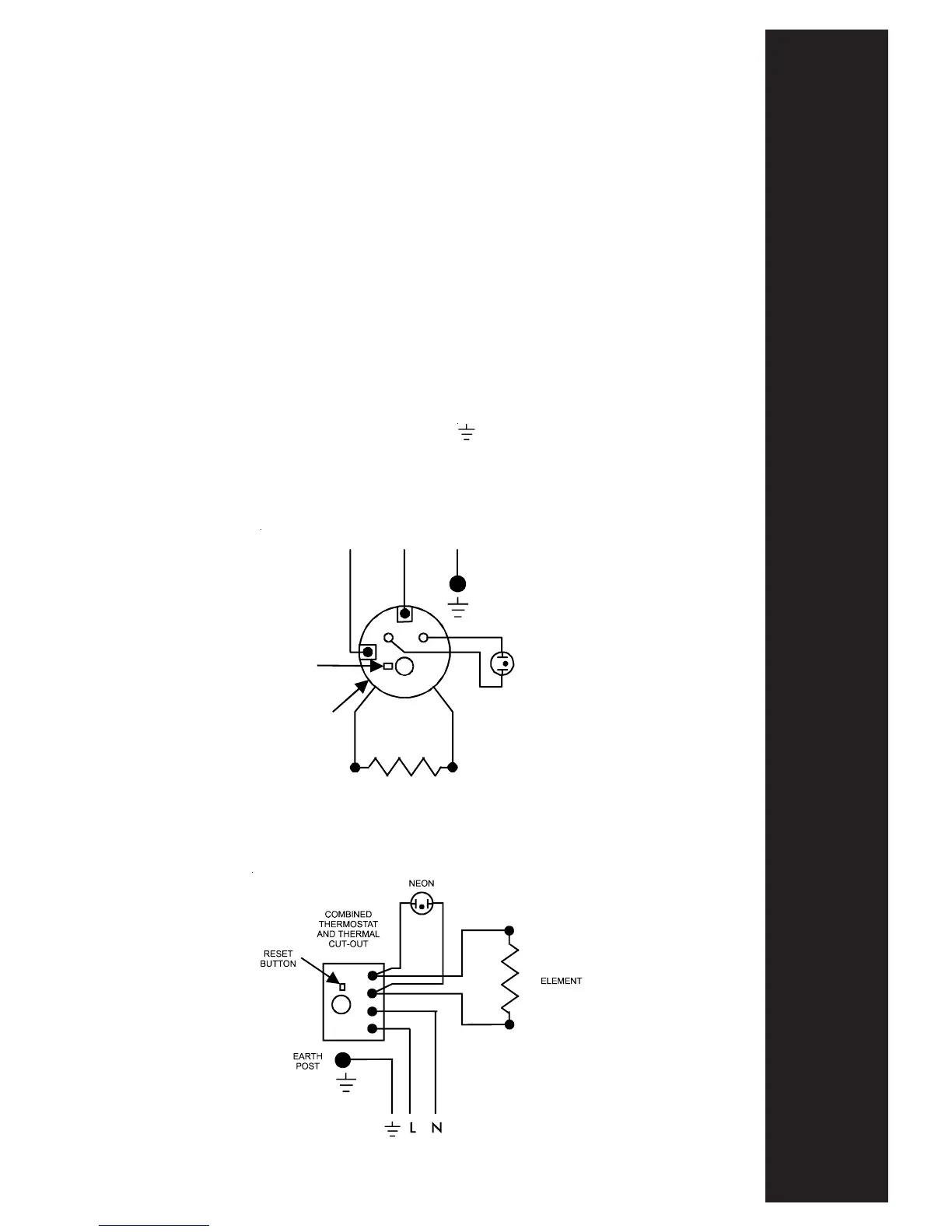

Wiring Diagram
3kW models
Wiring Diagram
4.5kW models
