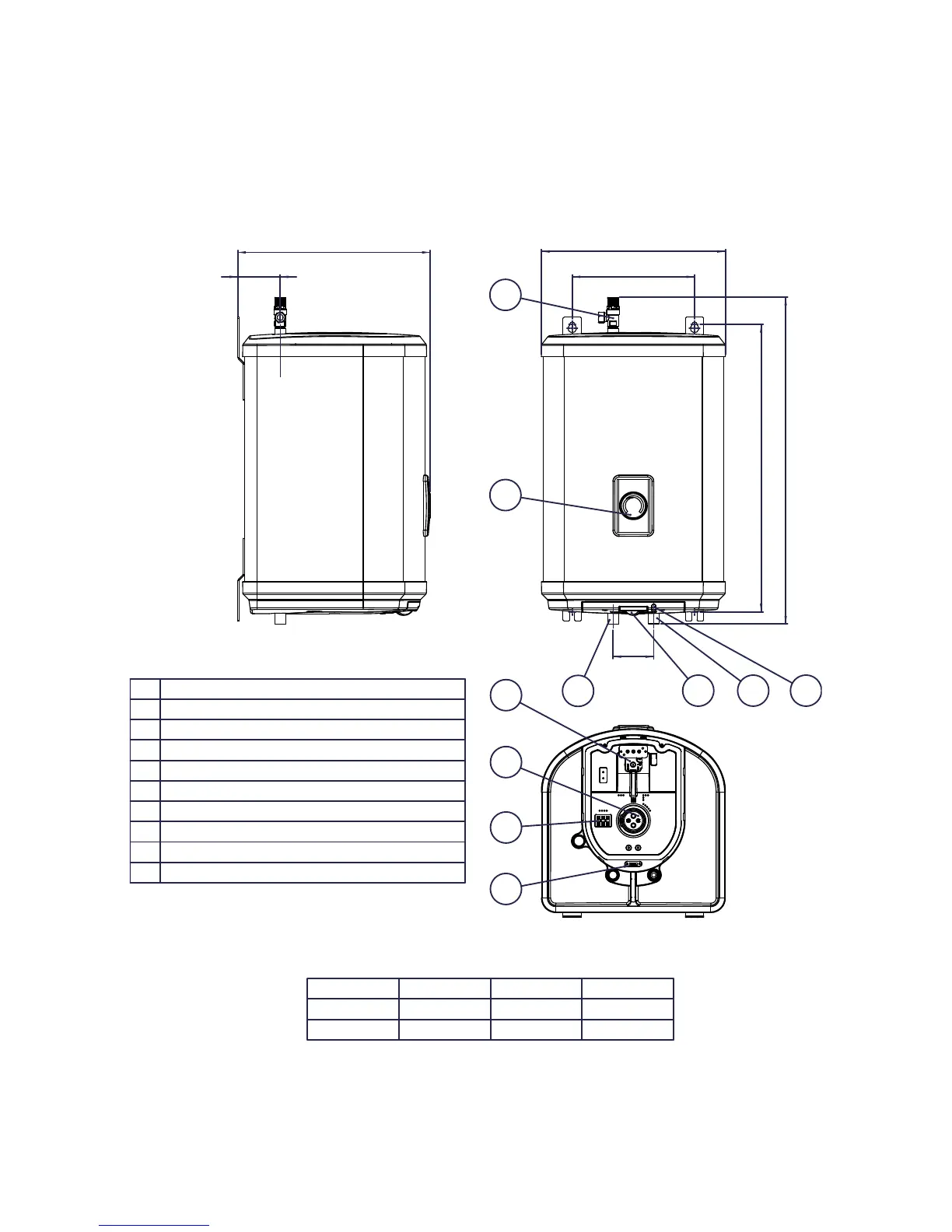

DIAGRAM 01: MULTIPOINT SS WATER HEATER- DIMENSIONS & IMPORTANT FEATURES
01
TEMPERATURE/PRESSURE RELIEF VALVE
02 THERMOMETER
03 COMBINED THERMOSTAT & CUT OUT
04 ELEMENT
05 TERMINAL BLOCK
06 CABLE CLAMP
07 HOT OUTLET
08 CONTROL KNOB
09 COLD INLET
10 INDICATOR LIGHT
DIMENSION 50 LITRE 80 LITRE 100 LITRE
A 705 963 1151
B 802 1060 1248
300
451
100
'B'
'A'
01
02
08 10
07
09
472
104
04
06
05
03
