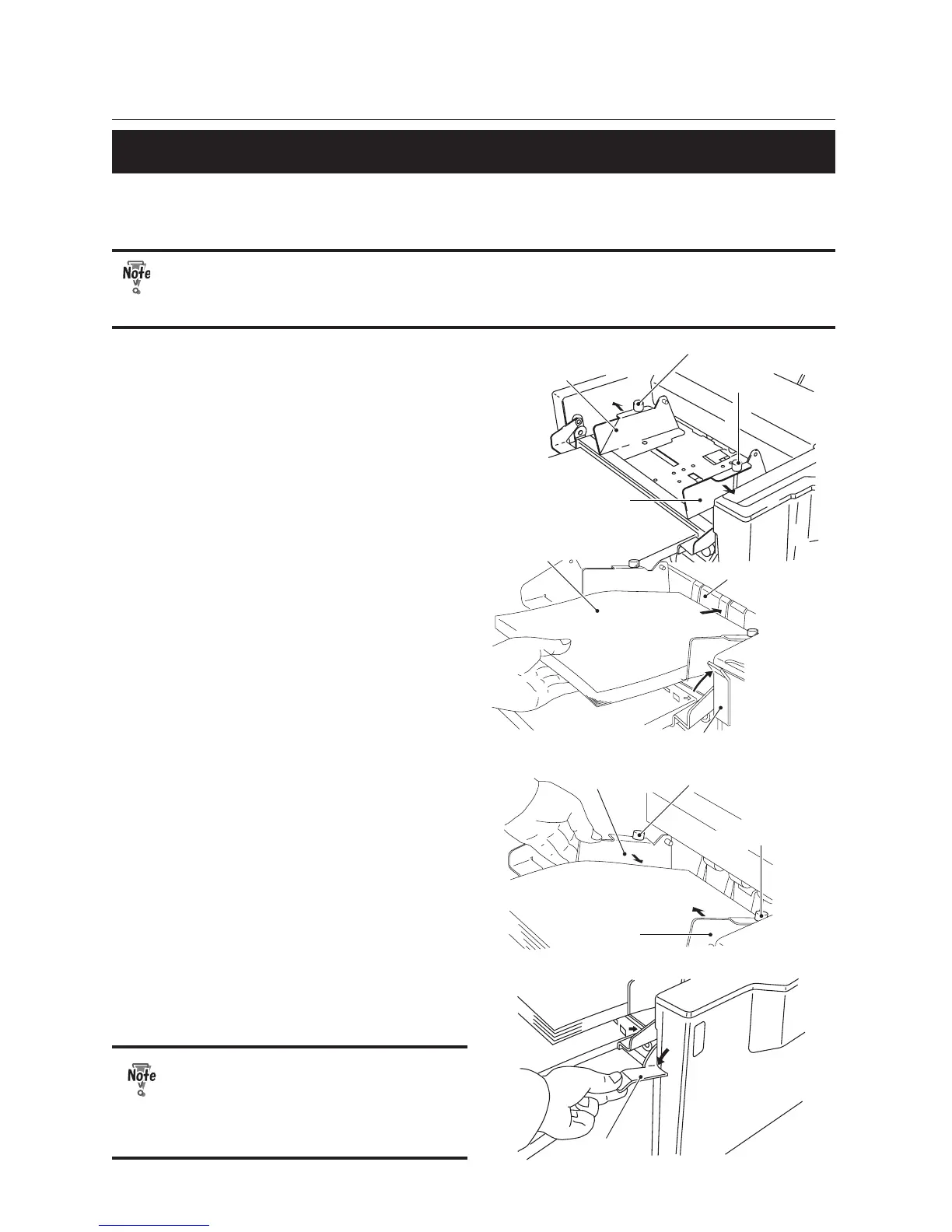

1-2. Double Folding Thick Paper
:KHQIROGLQJ¿QHTXDOLW\WKLFNSDSHUJPðLQWRIRXULWVIROGLQJVHFWLRQPD\RSHQZKHQHMHFWHG
to the stacker because of the paper thickness and consequently the folded paper may not be able to
pass through the stacker rollers, resulting in paper jam. To prevent this, follow the procedures below.
'RQRWIROG¿QHTXDOLW\WKLFNSDSHUJPðLQWRIRXUEHFDXVHSDSHUHMHFWLRQSUREOHP
may occur.
Side guide
Fixing screw
Side guide
Fixing screw
1
/RRVHQWKH¿[LQJVFUHZVRIWKHVLGH
guides, and move the side guides to
¿WWKHSDSHUZLGWK
Paper
Paper set lever
Guide plate
2
Raise the paper set lever and place
some paper on the paper feed table.
Push in the paper until its lead edge
touches the guide plate.
Side guide
Side guide
Fixing screw
Fixing screw
3
After pressing the side guide to each
side of the paper lightly, tighten the
screws to secure the side guides.
Paper set lever
4
Lower the paper set lever.
The paper feed table will be raised.
Make sure that you lower the paper
set lever. If you start operations
without the paper set lever lowered,
the paper feed rings will run idle,
causing the machine to stop.
