Hefter Systemform TF MEGA-M - 2. Removing Jammed Paper

4-3
&KDSWHU7528%/(6+227,1*
2. Removing Jammed Paper
:KHQSDSHUMDPKDVRFFXUUHG3$3(5(55ZLOOEHGLVSOD\HGRQWKH/&'GLVSOD\&KHFNWKH
PDFKLQHWR¿QGRXWZKHUHWKHMDPKDVRFFXUUHGDQGUHPRYHWKHMDPPHGSDSHUIROORZLQJWKH
procedures below.

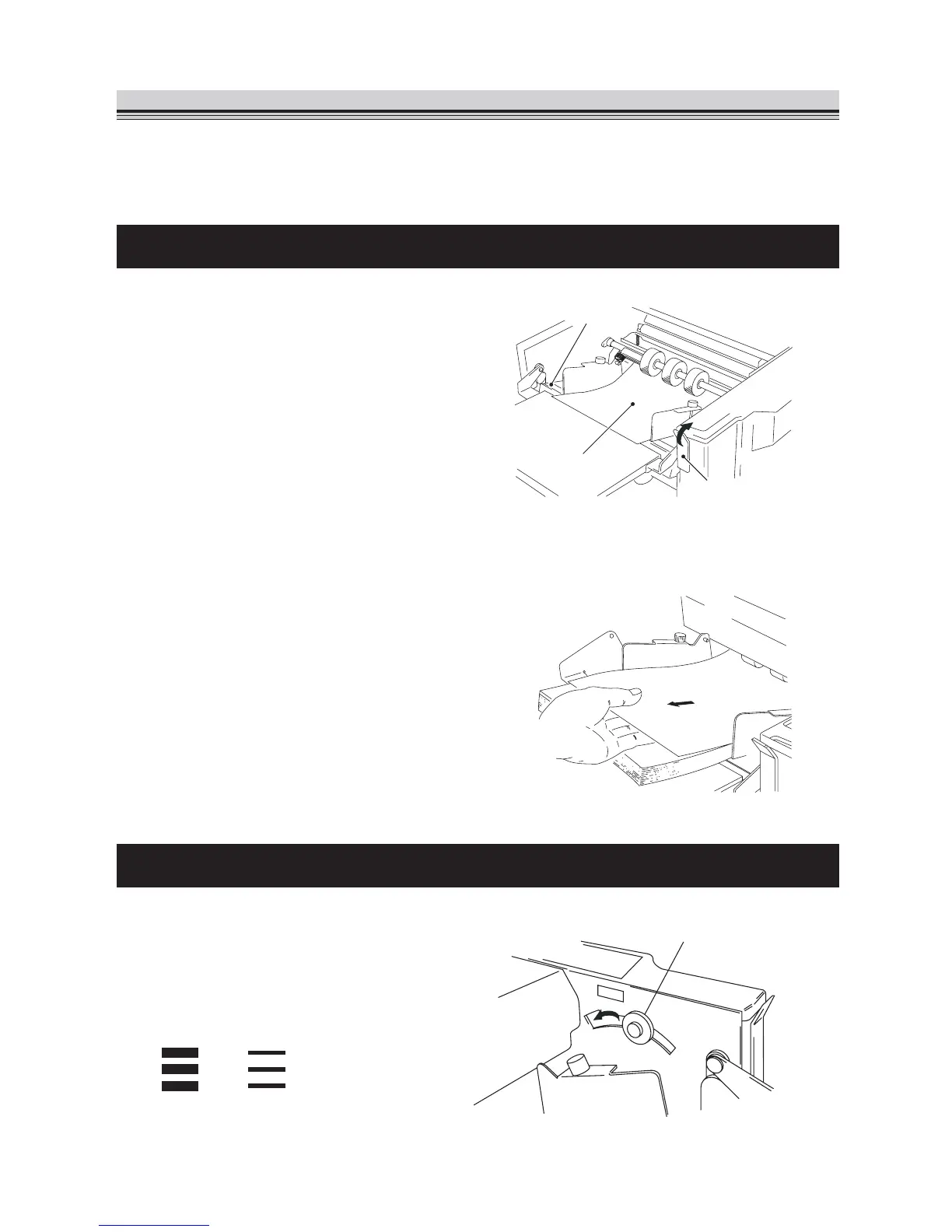

2-1. When Paper Has Jammed Near the Paper Feed Ring
Paper feed tray
Paper
Paper set lever
1
Raise the paper set lever to lower the
paper feed table downwards.
2
Pull the jammed paper towards you.
2-2. When Paper Has Slipped at the Paper Feed Section
Paper feed pressure adjustment knob
Ɣ
If mis-feed frequently occurs using
WKLFNSDSHU¿QHTXDOLW\SDSHUJ
PðVHWWKHSDSHUIHHGSUHVVXUH
adjustment knob to “Thick paper.”
ĸ
