Hefter Systemform TF MEGA-M - Paper

3-19
&KDSWHU$'9$1&('23(5$7,21
Paper
36 mm
Side guide
Paper set lever

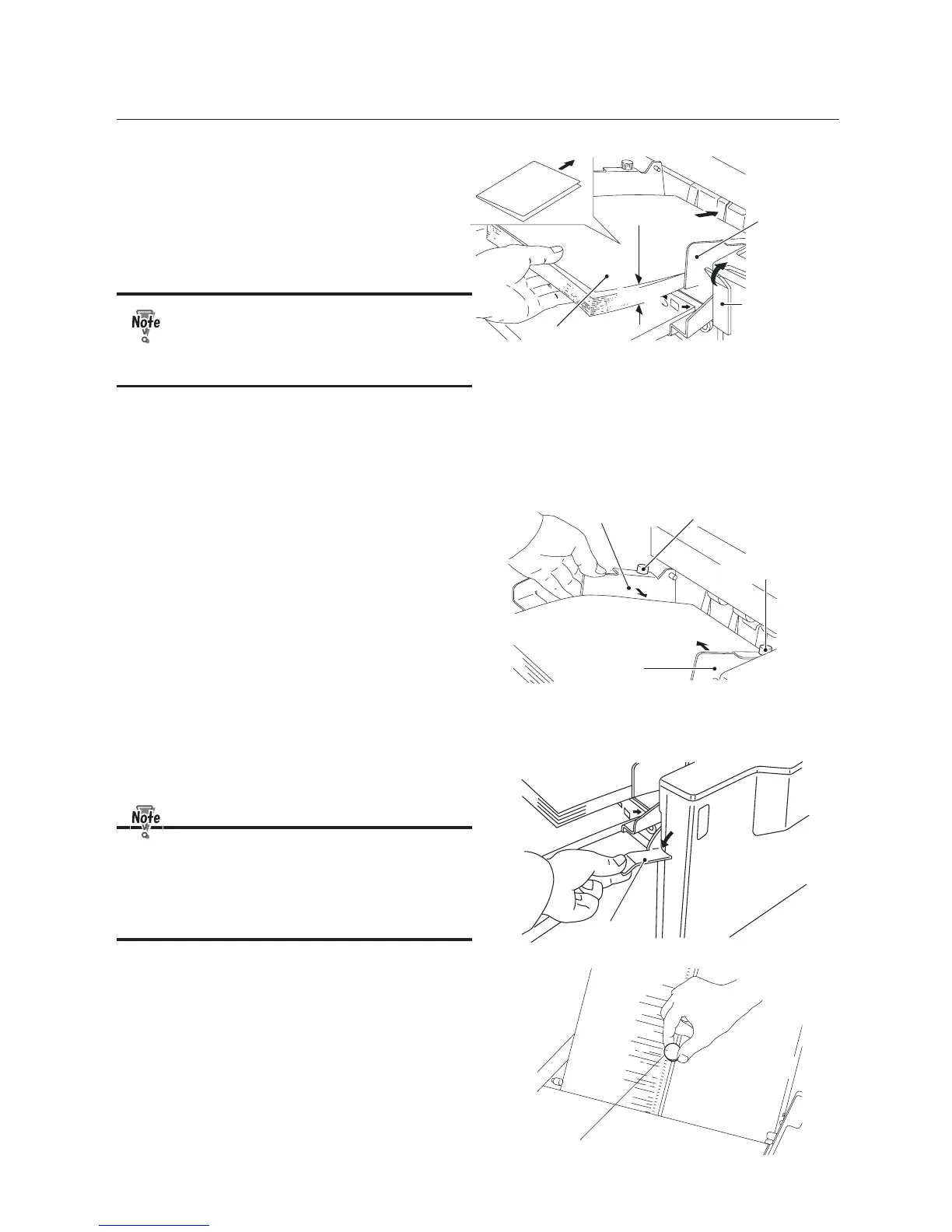

3
Raise the paper set lever and stack
the single-folded paper on the paper
feed table with the folded line facing
the non-operator's side.
The amount of paper stacked on
the paper feed table should be
DSSUR[LPDWHO\PPRIWKH
height of the side guide.
4
/RRVHQWKH¿[LQJVFUHZVRIWKHVLGH
guides.
Side guide
Side guide
Fixing screw
Fixing screw
5
After pressing the side guide to each
side of the paper lightly, tighten the
screws to secure the side guides.
Paper set lever
6
Lower the paper set lever.
The paper feed table will be raised.
Make sure that you lower the paper
set lever. If you start operations
without the paper set lever lowered,
the paper feed rings will run idle,
causing the machine to stop.
Rough adjustment knob
7
Move the rough adjustment knob of
WKH¿UVWIROGLQJSODWHWRWKHSRVLWLRQ
for single-fold A4 paper.
,IWKHRULJLQDOSDSHUVL]HLV%$RU%
the knob should be moved to the position of
%$RU%UHVSHFWLYHO\
