Hefter Systemform TF MEGA-M - 2. Setting Up the Machine

1-3
&KDSWHU%()25(23(5$7,21

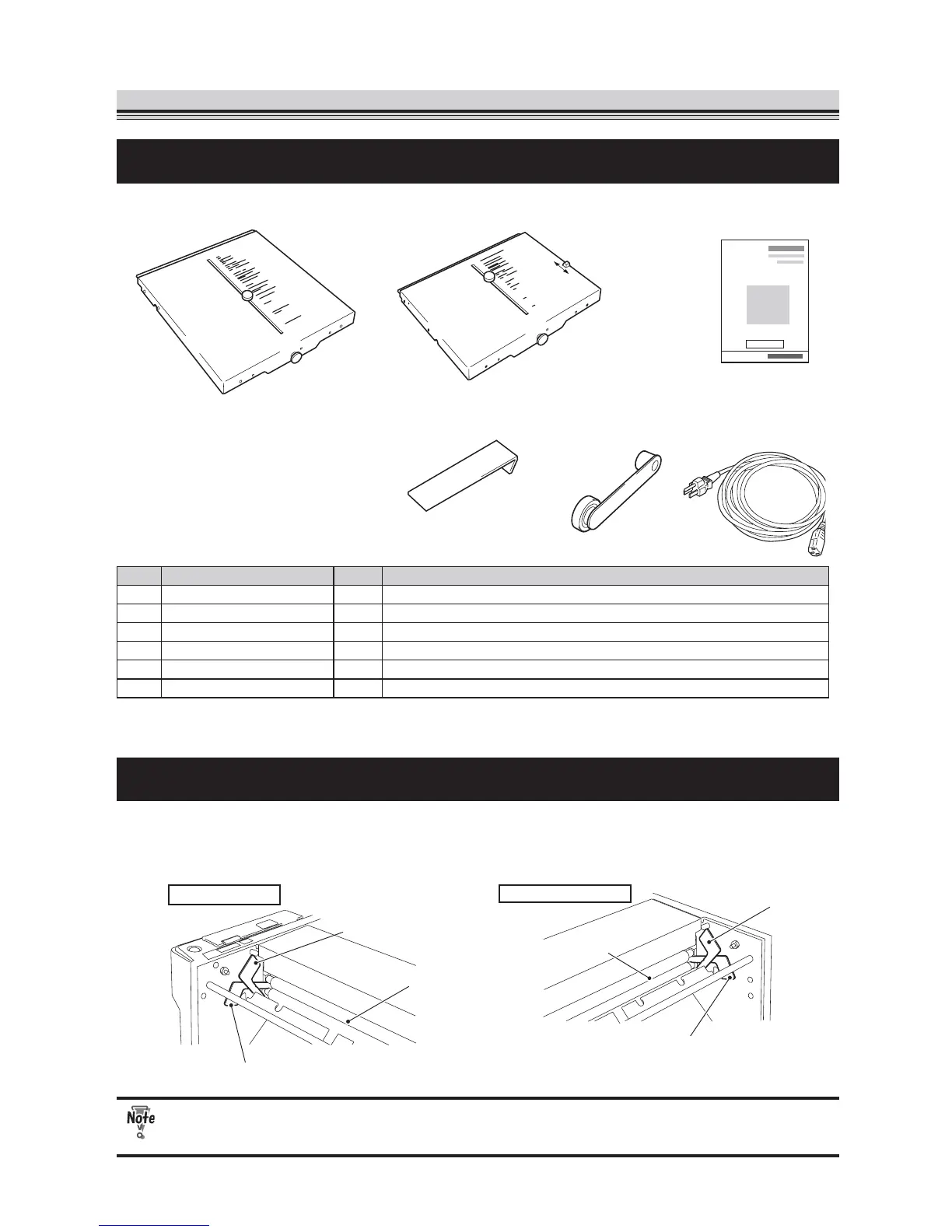

2. Setting Up the Machine
2-1. Components
[1] [2] [3]
[4] [5]
[6]
[7]
1R 1DPH Qty. 5HPDUN
>@ First folding plate  Attached to the right upper section on the operator's side.
>@ Second folding plate  Attached to the right lower section on the operator's side.
>@ Instruction manual  This manual
>@ *XLGHSODWHXQLW  8VHGZKHQIROGLQJ%VL]HWKLQSDSHULQWRIRXU
>@ &URVVIROGLQJOHYHU  Used when cross folding paper.
>@ Power cord 
2-2. Removing the Press Release Lever
The press release levers are attached to the unit at shipment to prevent the rubber roll from becoming
distorted. Be sure to remove them when setting up the machine.
The two types of press levers are attached to either side of the rubber roll.
Press release lever (A)
Operator’s side
Rubber roll
Press release lever (B)
Press release lever (A)
Press release lever (B)
Rubber roll
Non-operator’s side
The machine will be damaged if it is used without removing the lever.
>@ >@ >@
