&KDSWHU$'9$1&('23(5$7,21
Rough
adjustment knob
8

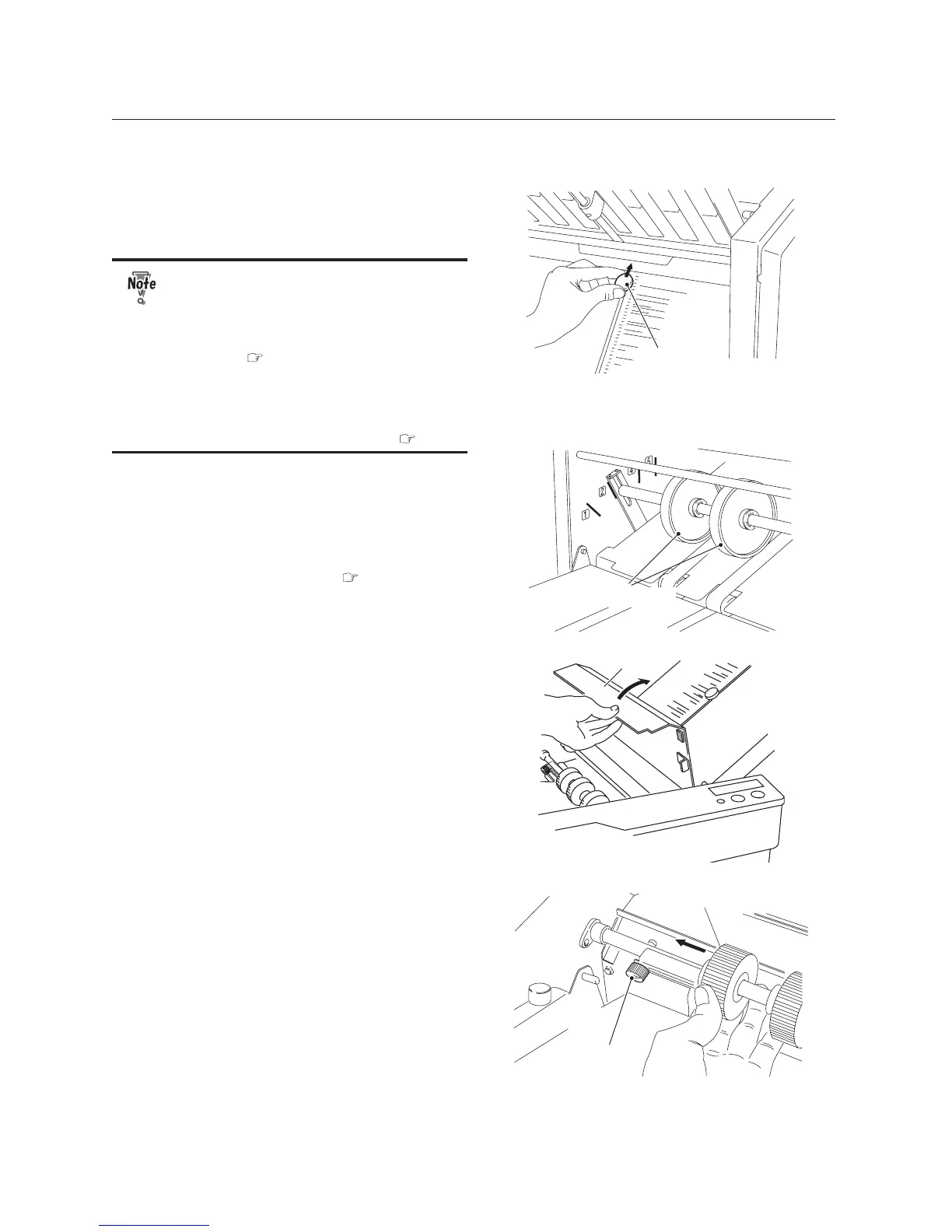

Move the rough adjustment knob of
the second folding plate to the upper
end.
Ɣ The rough adjustment knob cannot
be turned either clockwise or
counterclockwise. Make sure that you
pull up the knob when you want to
move it. (
p.2-4)
Ɣ After moving the rough adjustment
NQREWXUQWKH¿QHDGMXVWPHQWNQRE
to the right and left a few times to
check that it moves slightly. (
p.2-4)
Stacker roller
9
Move the stacker rollers to the
appropriate position.
5HIHUWRWKHWDEOHRIVWDFNHUUROOHUVSRVLWLRQ
attached to the control panel section for
WKHLUDSSURSULDWHSRVLWLRQ
S
)RUWKLVH[DPSOH$VL]HVLQJOHIROG
PRYHWKHVWDFNHUUROOHUVWR
Top cover
10
Open the top cover.
Set screw
Paper feed ring
11
Loosen the set screw of the paper
feed ring.
12
Move the paper feed ring at the far
end to the folded line of the paper.
13
Tighten the set screw of the paper
feed ring.
