Chapter4 Troubleshooting Guide
2-3. When Paper Has Coiled Around the Rubber Roll
Turn o the machine before following the procedures below.

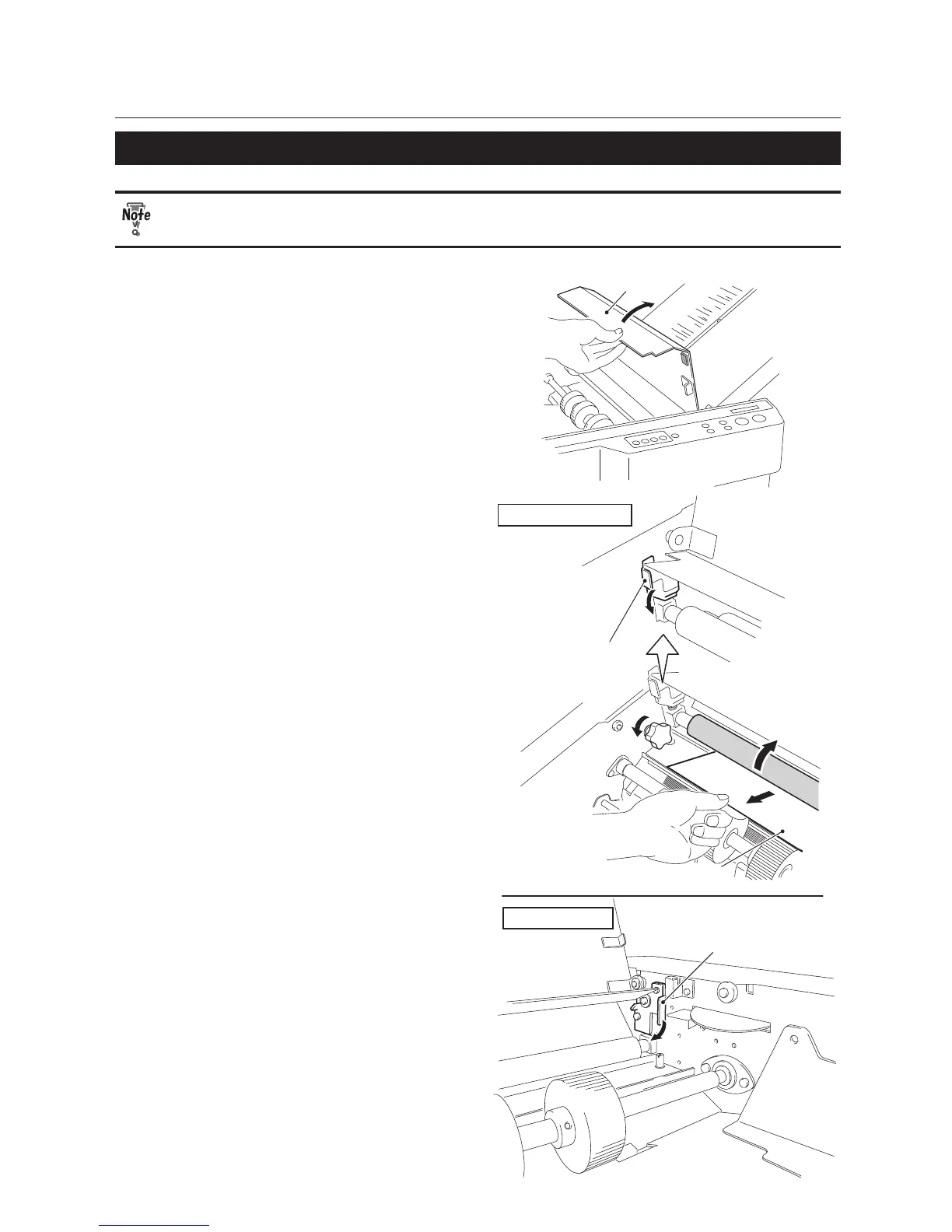

Top cover
1
Open the top cover.
Bearing support lever
Rubber roll
Paper
Bearing support lever
Non-operator’s side
Operator’s side
2
Turn the two bearing support levers
in the direction of the arrow to relase
them.
3
Pull the coiled paper towards you
to remove it while turning the jam
correction knob.
4
Return the bearing supprt levers.
