Chapter4 Troubleshooting Guide

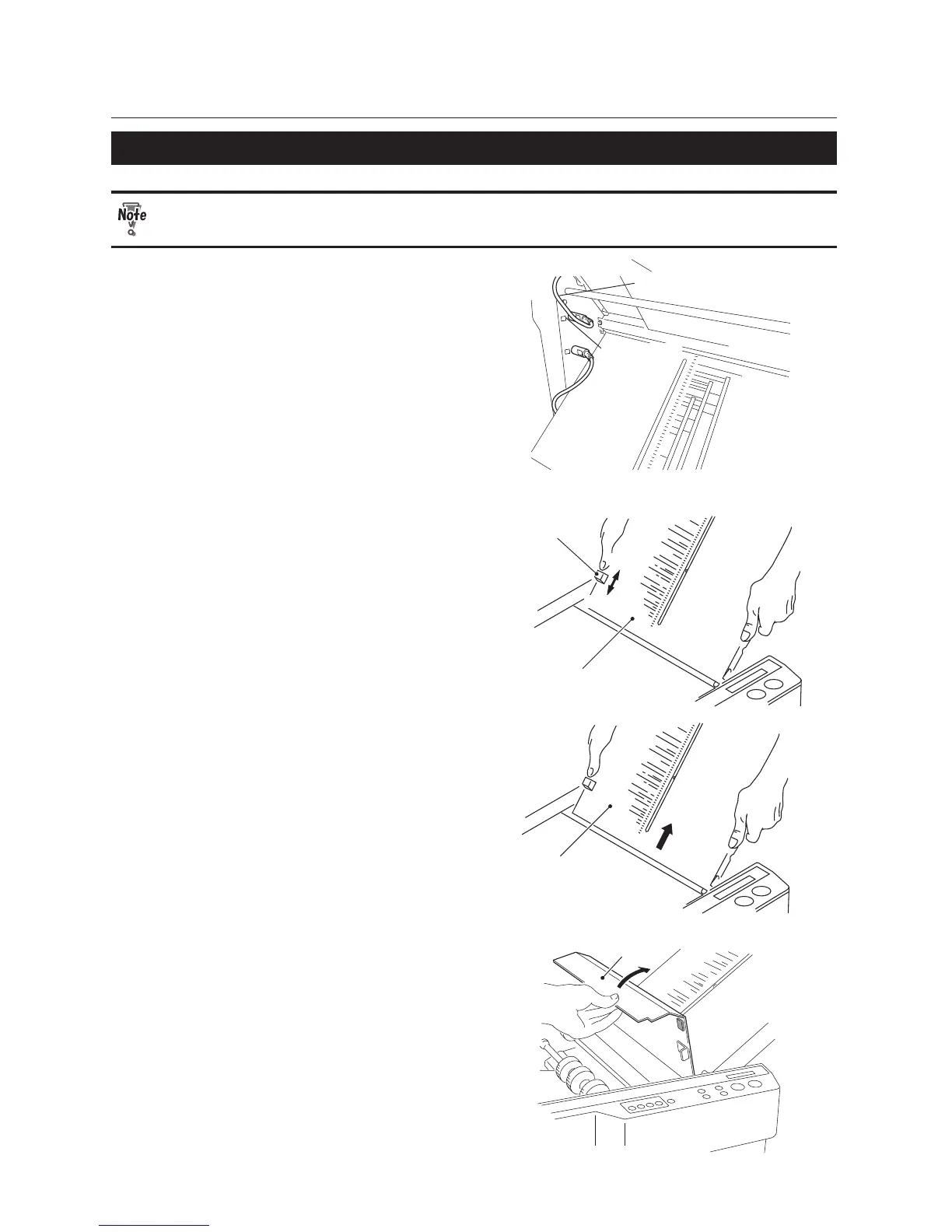

2-4. When Paper Has Jammed at the First Folding Plate
Turn o the machine before following the procedures below.
1
2
2
1
Control cable 1
Connector 1
1
Remove the control cable 1 from the
connector 1 of the rst folding plate.
First folding plate
UNLOCK
LOCK
Lock lever
2
Move the lock lever to the position of
"UNLOCK."
First folding plate
3
Remove the rst folding plate from the
machine.
Top cover
4
Open the top cover.
