7
.0 Unpacking / Assembly
7.1 Unpacking
⇒

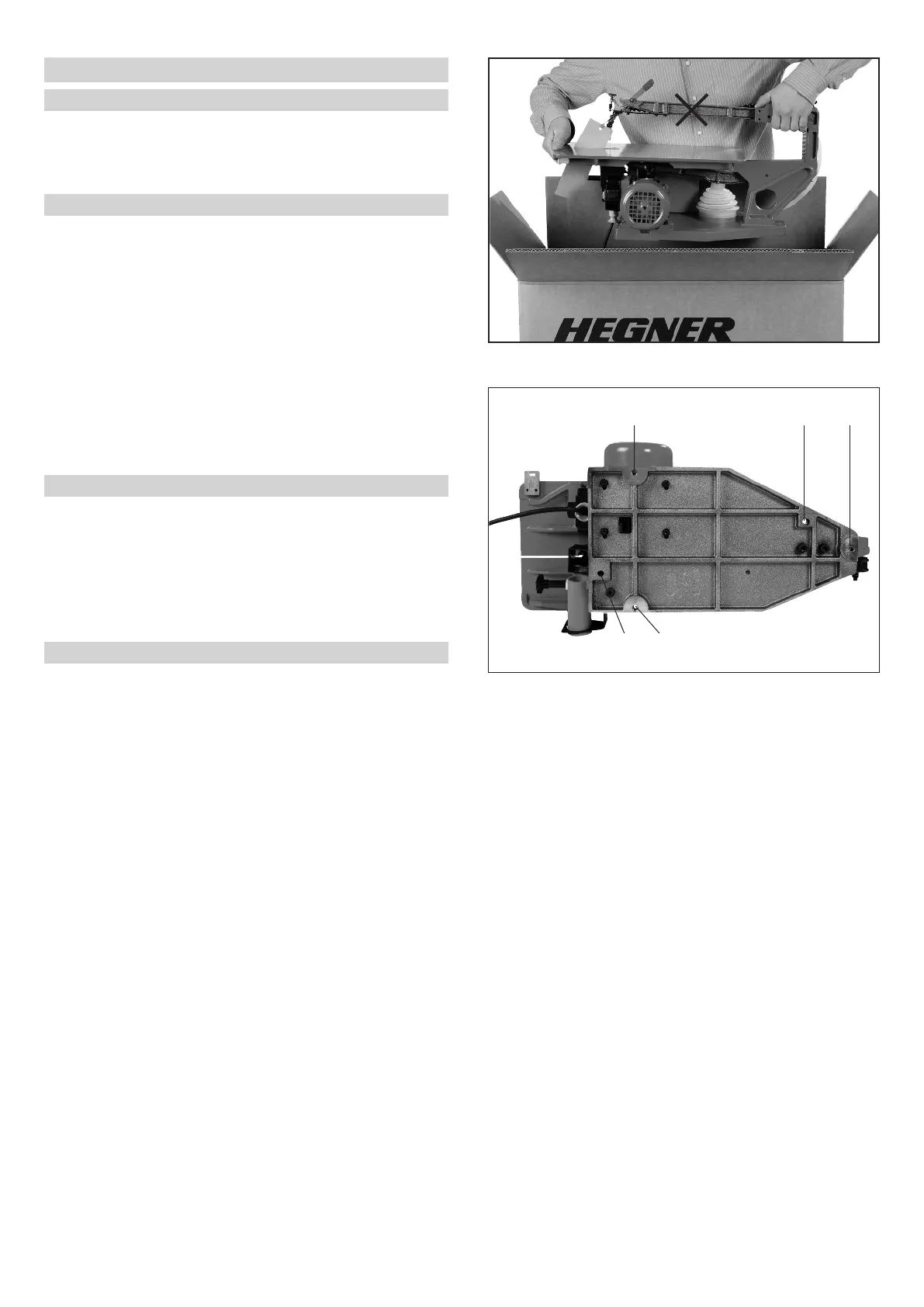

Fig. 7-1
• Lift the machine out of the packing box as shown.
• Do not lift by the upper swing arm.
7.2 Assembly
⇒ See Fig. 7-2
• Place the machine on a stable vibration free support so
that it can be controlled from the front.
- The height of the support should be adapted to the size
of the operator and depends on whether operation is
performed seated or standing.
• Attach the machine.
- either with 2 wood screws inserted from above through
the two holes (1) in the subframe (or with 2 coach bolts),
- or with 3 M8 bolts screwed from below into the threaded
bore (2) through the machine stand.
7.3 Environment
The location of the machine should be free from
- vibration
- moisture
- free from aggressive gasses and vapours
- free from mineral dust and
- able to be ventilated.
7.4 Electrical installation
The electrical installation of the site must comply with the
relevant regulations and meet the requirements of the
machine.
⇒1. Technical data
• Activate the mains switch so that the machine is
switched off.
⇒ point 8.3 switching off the machine.
• Connect the plug to the socket.
Route the power cable so that
- it does not hinder work
- it does not constitute an obstacle for tripping and
- it is not kinked, crushed or damaged.
4
Fig. 7.1
Fig. 7.2
12
12
2
