Hegner Multicut-SE - 9.4 Remove saw blade from machine; 9.5 Remove saw blade from saw blade clamps; 9.6 Clamp new saw blade in saw blade clamps; 9.7 Insert saw blade with clamp in machine

9.4 Remove saw blade from machine
⇒ Fig. 9-2
• Turn the knurled screw up until it only just projects
through the bottom of the saw blade holder.
⇒ F
ig. 9-3
• Gently press the upper swing arm down and remove
the saw blade clamp from its holder.
⇒ Fig. 9-4
• Press the clamp retaining spring down slightly and
remove the entire saw blade with clamps from the
machine.
9.5 Remove saw blade from saw blade clamps
⇒ Fig. 9-5
• Place the saw blade clamp in the clamp insert device
at the front right of the saw table.
⇒ Fig. 9-6
• Using the square wrench, open the clamps until you
can remove the saw blade.
9.6 Clamp new saw blade in saw blade clamps
⇒ Fig. 9-5
• Lay the new saw blade in the clamps, precisely
centred and straight, with the teeth pointing down to
the right.
• Push the saw blade up to the stop (on the square bolt)
and then retract it approx 1 – 2 mm (so that the bolt
does not twist the blade when it is tightened).
• Clamp the saw blade clamp tightly using the square
wrench.
⇒ Fig. 9-7
• Clamp the other end of the saw blade in the same
way.
⇒ Fig. 9-8
• Ensure that the saw blade ends are clamped centrally.
9.7 Insert saw blade with clamp in machine
⇒ Fig. 9-4
• First insert the lower clamp in the lower swing arm.
• Then insert the upper clamp in the upper swing arm.
⇒ Fig. 9-9
• Turn the upper knurled screw towards the clamp so
that a gap of around 1 mm exists between the clamp
and the bolt.
☞
7

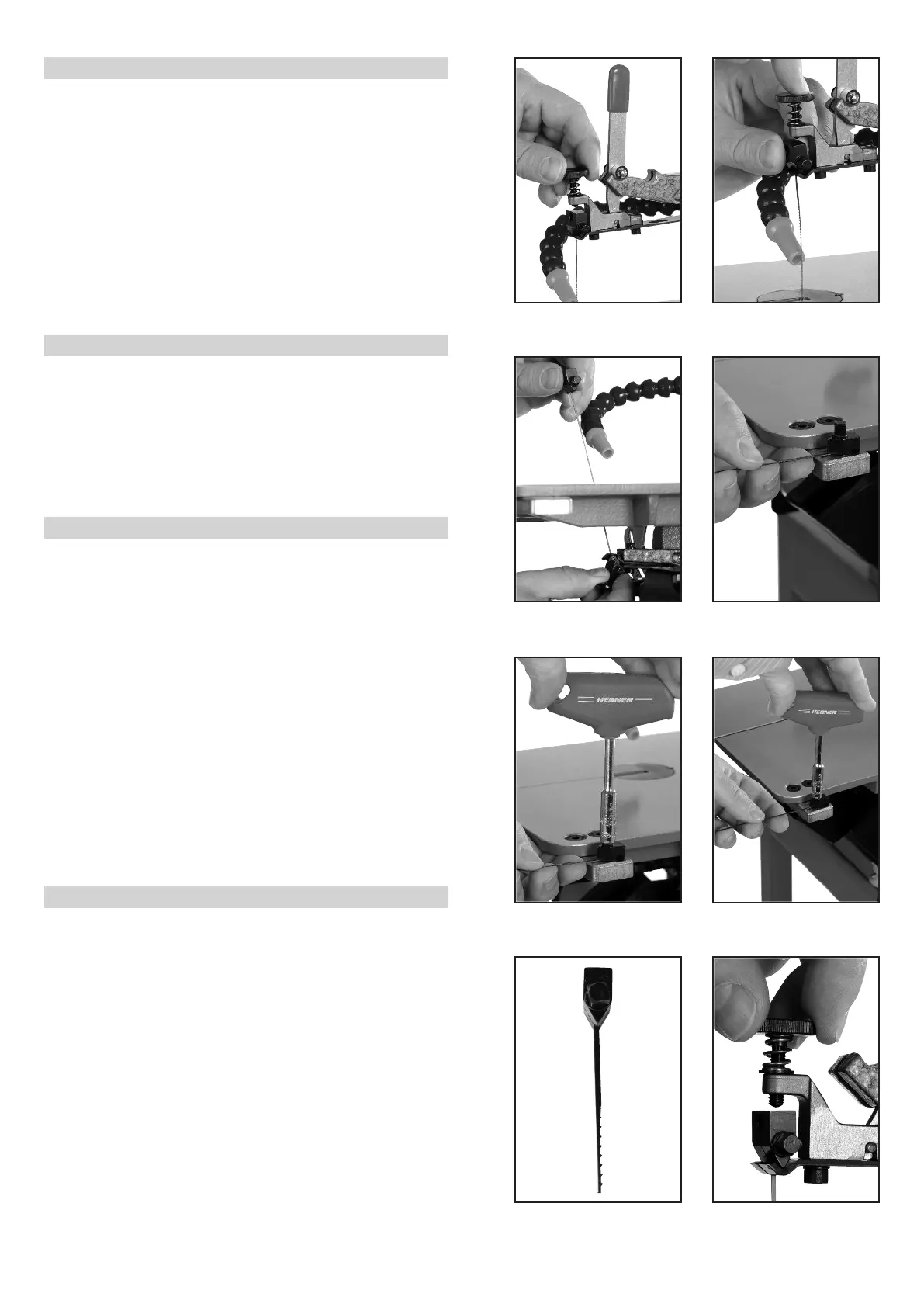

Fig. 9-2 Fig. 9-3
Fig. 9-4 Fig. 9-5
Fig. 9-6 Fig. 9-7
Fig. 9-8 Fig. 9-9
