Service Manual TNC 426.B/430.A
Interface to the servo amplifier
Ausgabe
Issue
01.10.97
Blatt
Page
160
20.6 Offset adjustment
20.6.1 Analogue axes

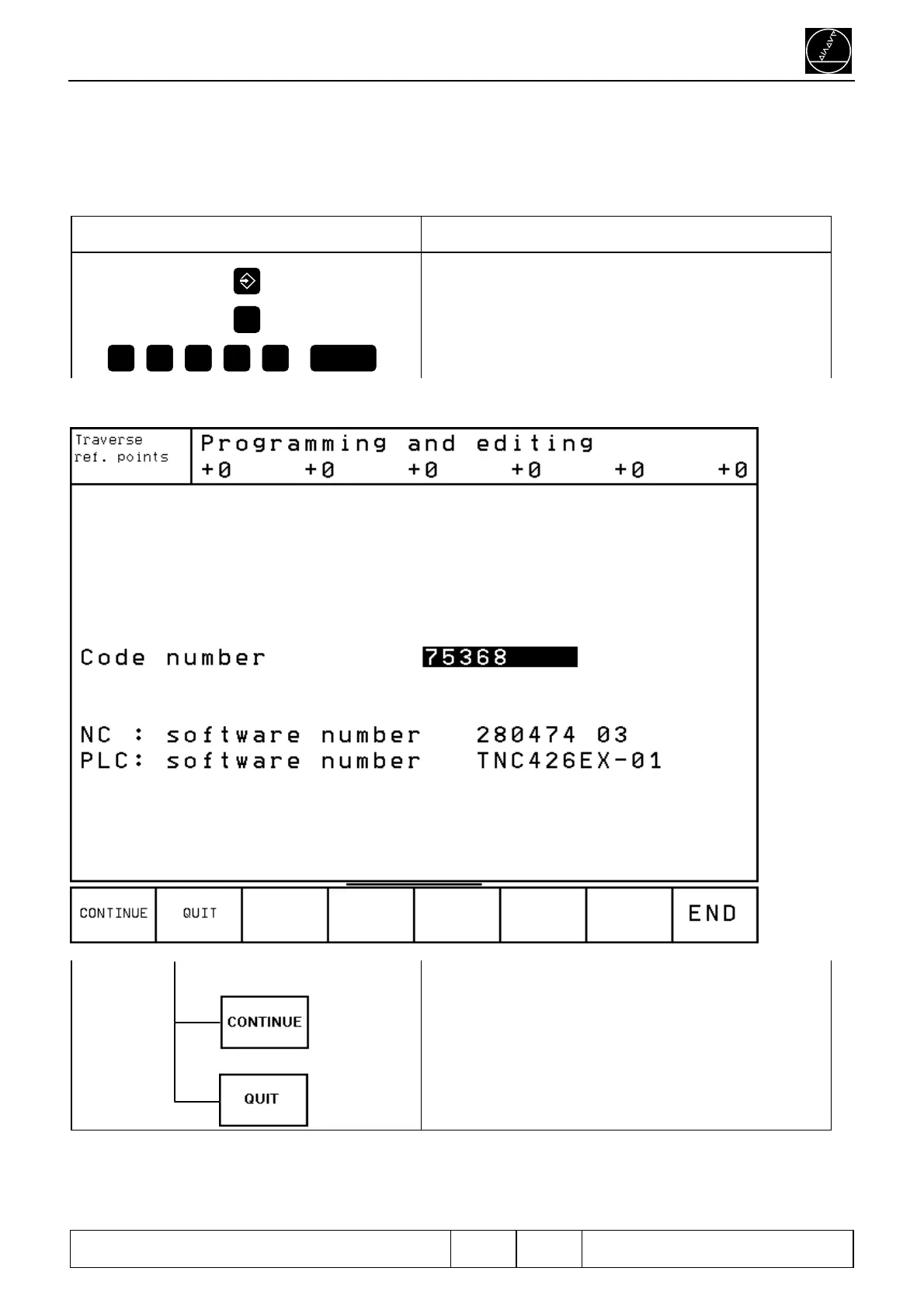

a) Offset adjustment with code number
Press key Function
MOD
7 5 3 6 8
ENT
TNC in operating mode PROGRAMMING AND EDITING
Prepare TNC for input of code number
Enter code number for offset adjustment; confirm with ENT
On the screen the contents of the offset memory are now displayed in converter steps (1 conv. step = 0.153 mV).
From left to right: X, Y, Z, IV, V.
Offset compensation is executed
Offset compensation is not executed or is cancelled
*
The offset adjustment with code number only compensates the current offset. Subsequent offset modifications
are not compensated.
